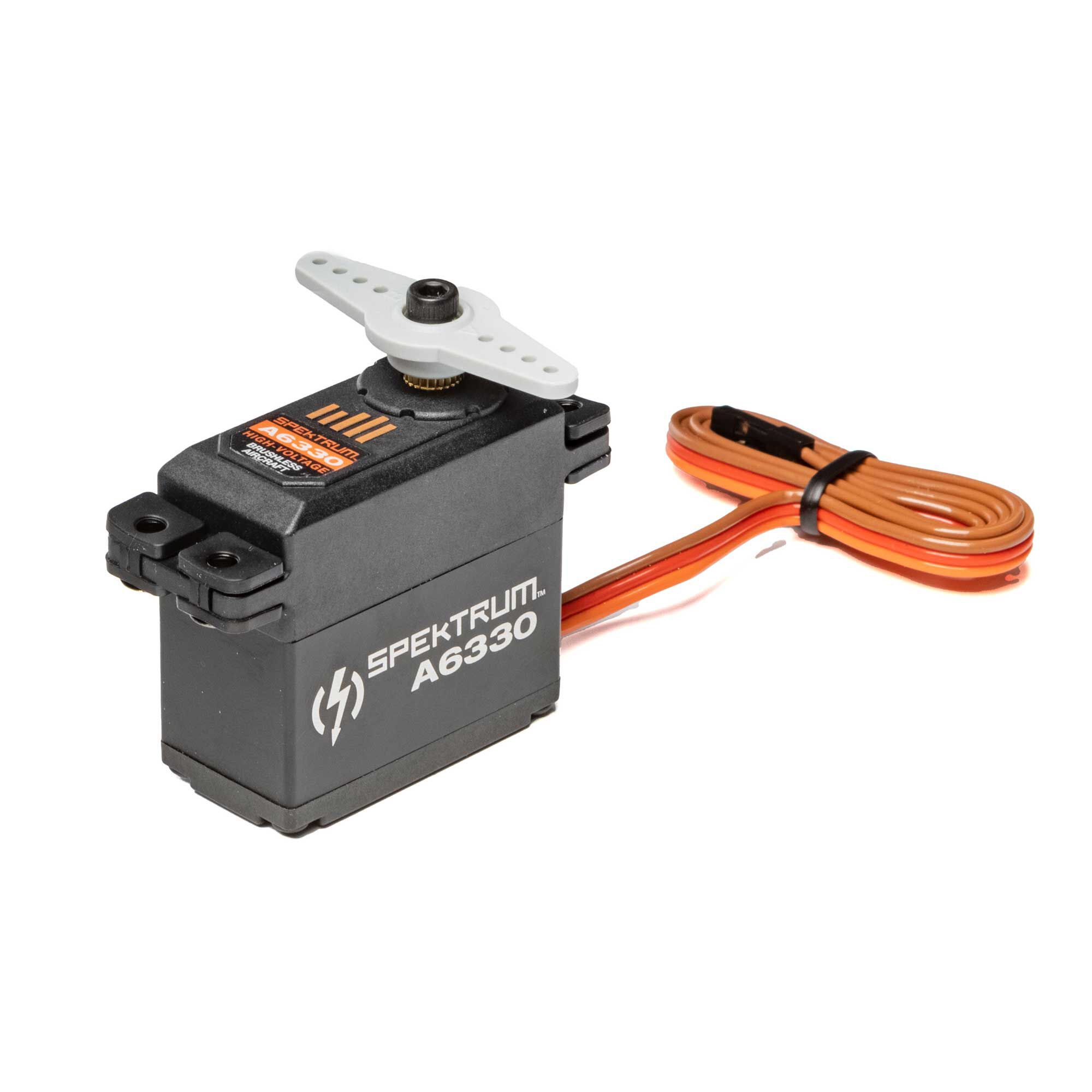

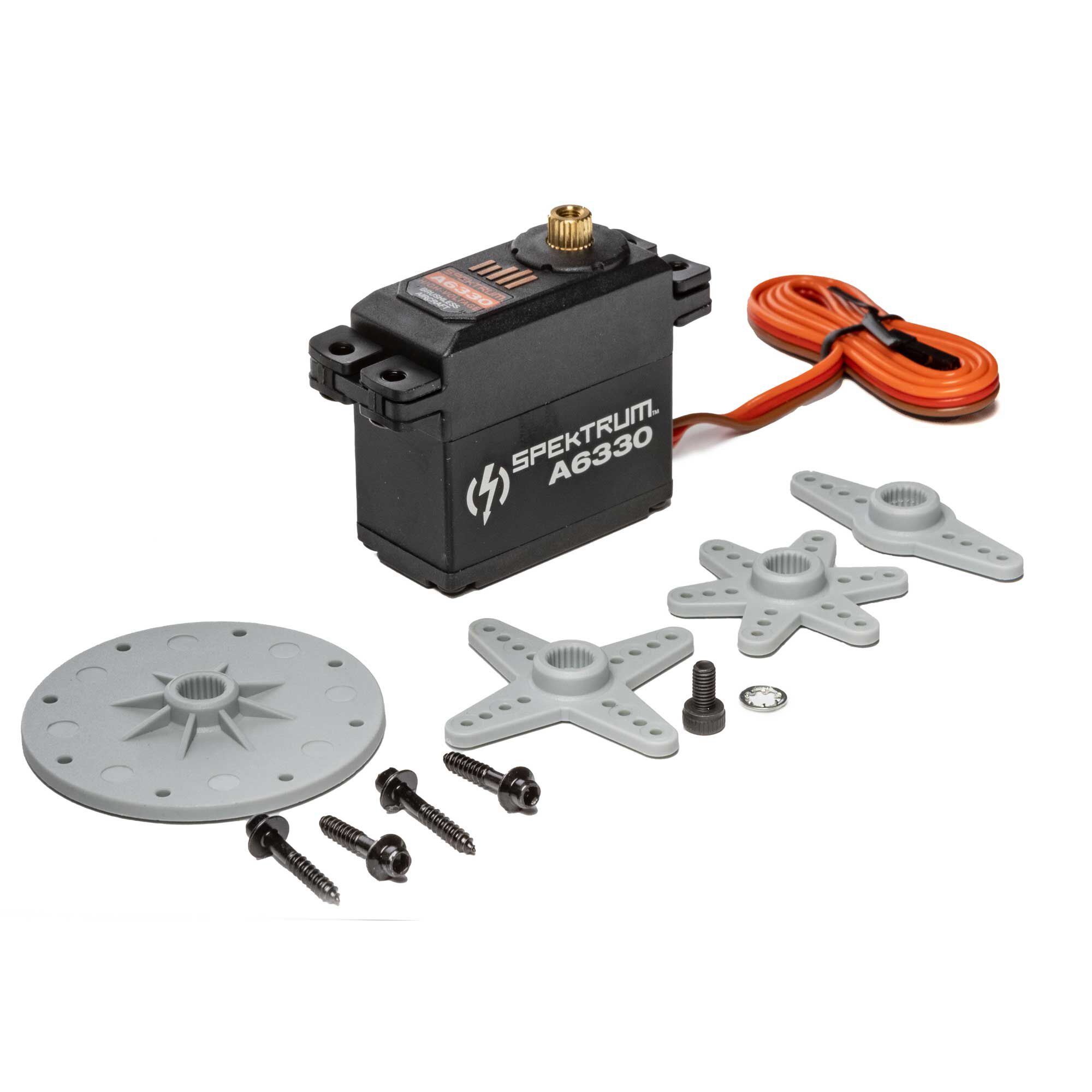

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.
Other features include: integrated servo failsafe, over-current and over-temperature protection, long 18 inch (457mm) lead for easy installation, initialization start tone to indicate servo readiness, and soft start to prevent damage during unintended initializations. Like all Spektrum 6300 Series servos, the A6330 delivers reliability, consistency and performance that are second to none.

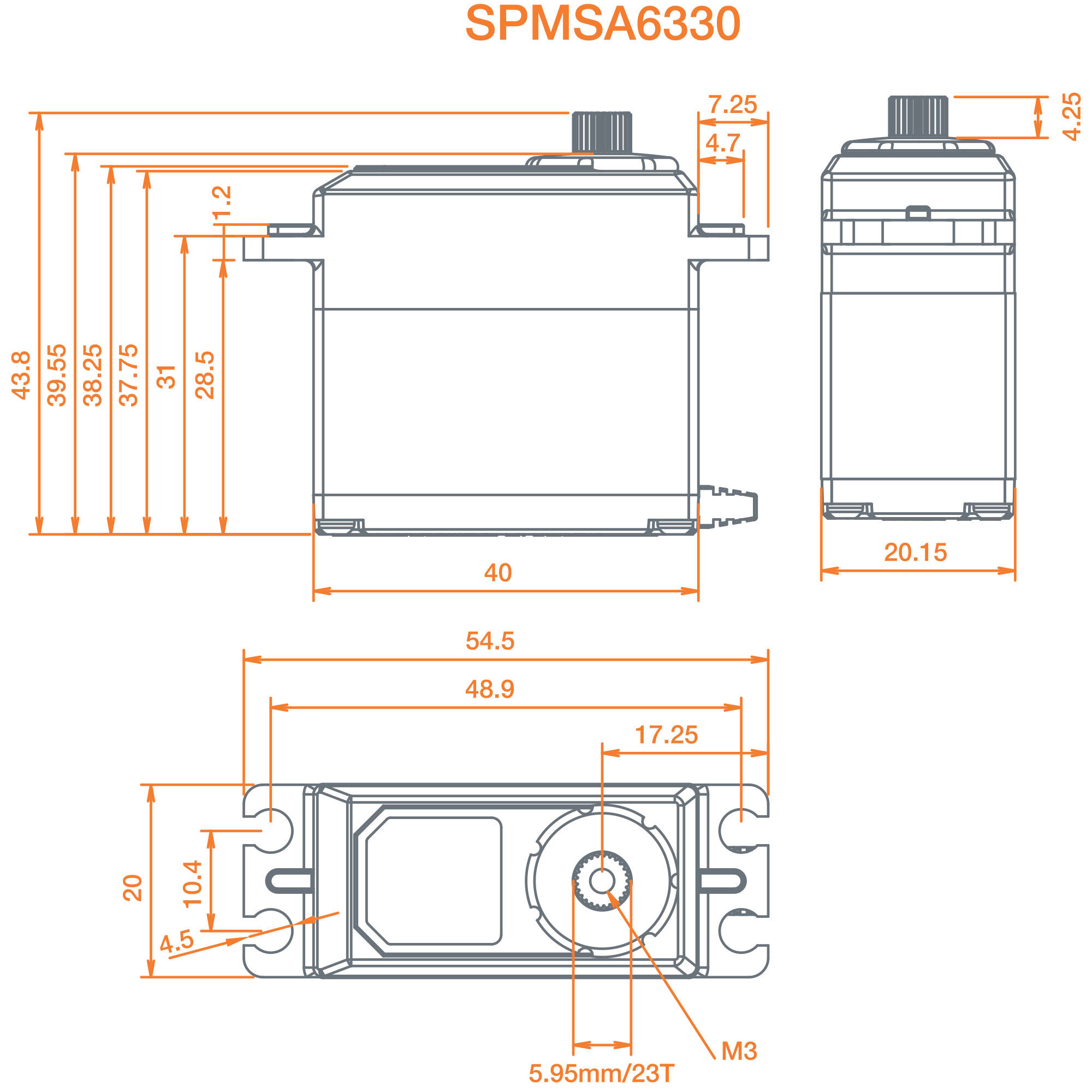

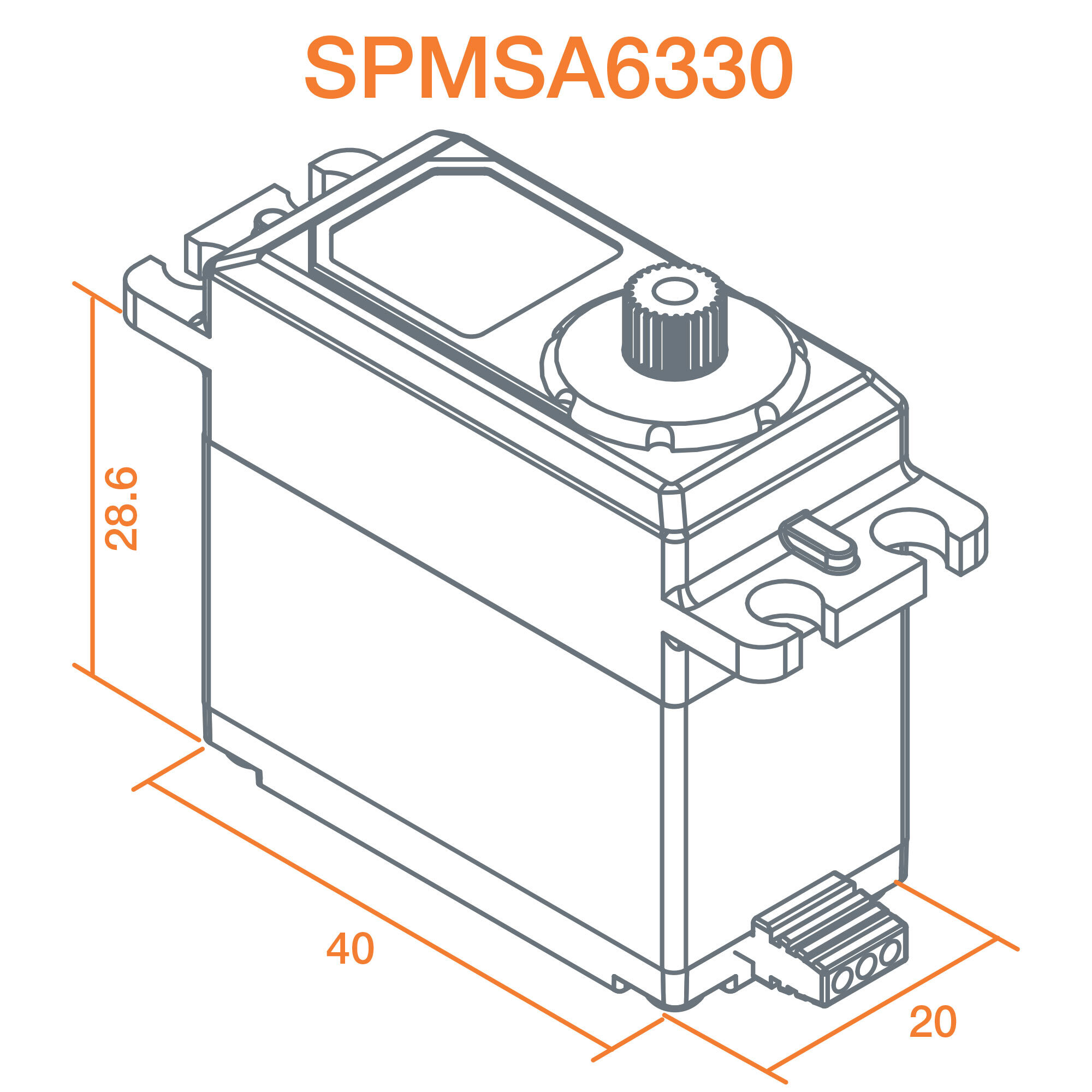

| Product Weight | 2.25oz (71g) |
|---|---|
| Product Length | 1.58" (40 mm) |
| Product Width | 0.79" (20 mm) |
| Product Height | 1.56" (40 mm) |
| Connector Type | Universal |
| Application | Airplane |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Input Voltage | 6 - 8.4V |
| Maximum Servo Speed | 0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V |
| Maximum Servo Torque | 126.6 oz-in (9.11 kg-cm) @ 6.0V; 178 oz-in (12.82 kg-cm) @ 7.4V; 248 oz-in (17.86 kg-cm) @ 8.4V |
| Motor Type | Brushless |
| Overload Protection | Yes |
| Product Application | Air |
| Programmable | No |
| Rotation Range | 120 degree |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Spline Count | 23 - Tooth |
| Water-Resistant | No |
| Wire Gauge | 22 AWG |
This replacement part is used in the following complete models.

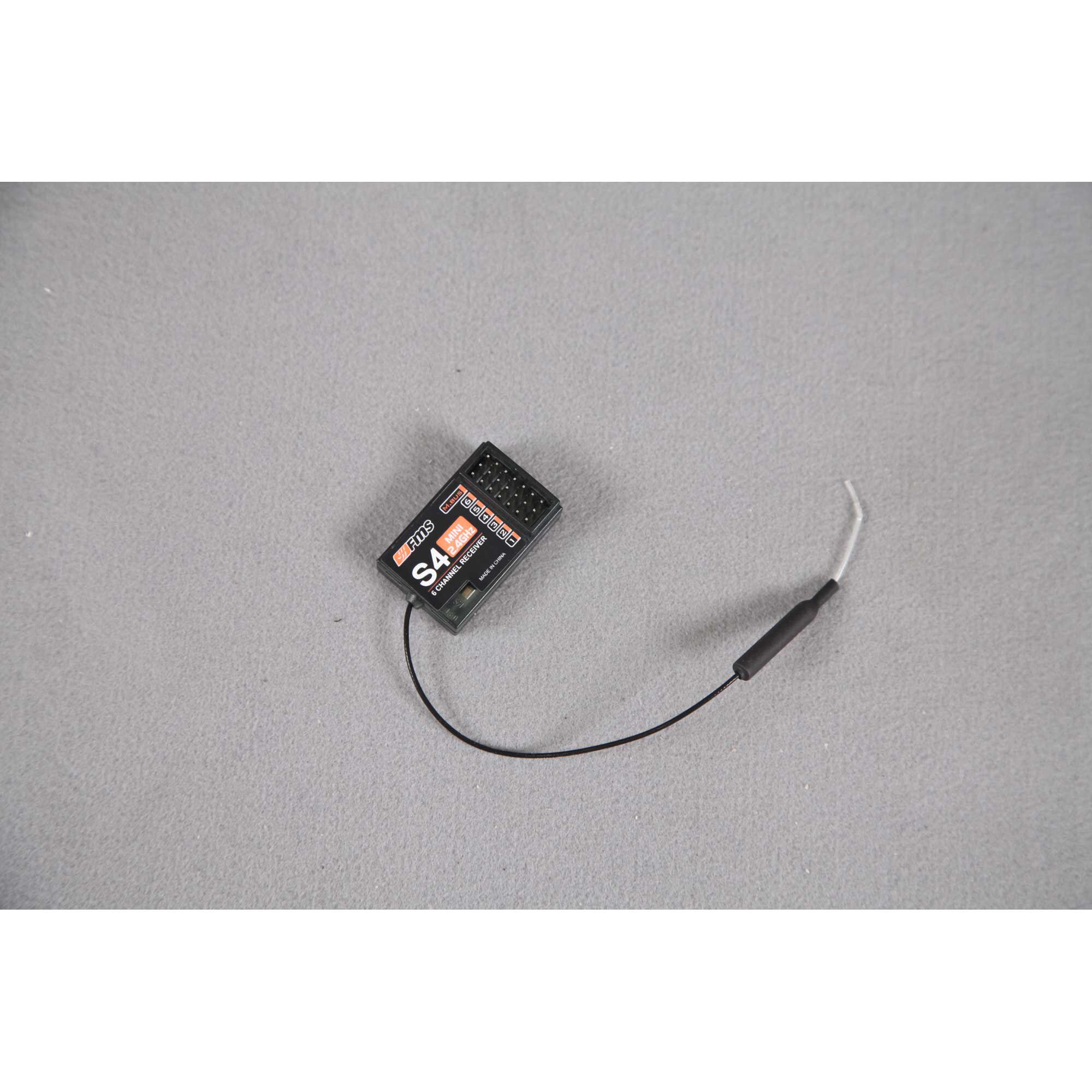

6 Channel 2.4 GHz FMS Air ReceiverFMMRX02
Hawk/T-45 140-160N ARF with Retract Set, KingTech K-160G4+, Spektrum AR20410T Receiver, Synapse AS3X+ Module, and Spektrum ServosHAN13750CRSSK160
Viper 100N Turbine Jet ARFHAN-3625ARF
Viper 100N Turbine Jet ARF with Retract SetHAN-3625CR
Viper 100N Turbine Jet ARF with Retract Set and KingTech K-102G4+HAN-3625CRK102
Valiant 10cc ARF, 69"HAN5080

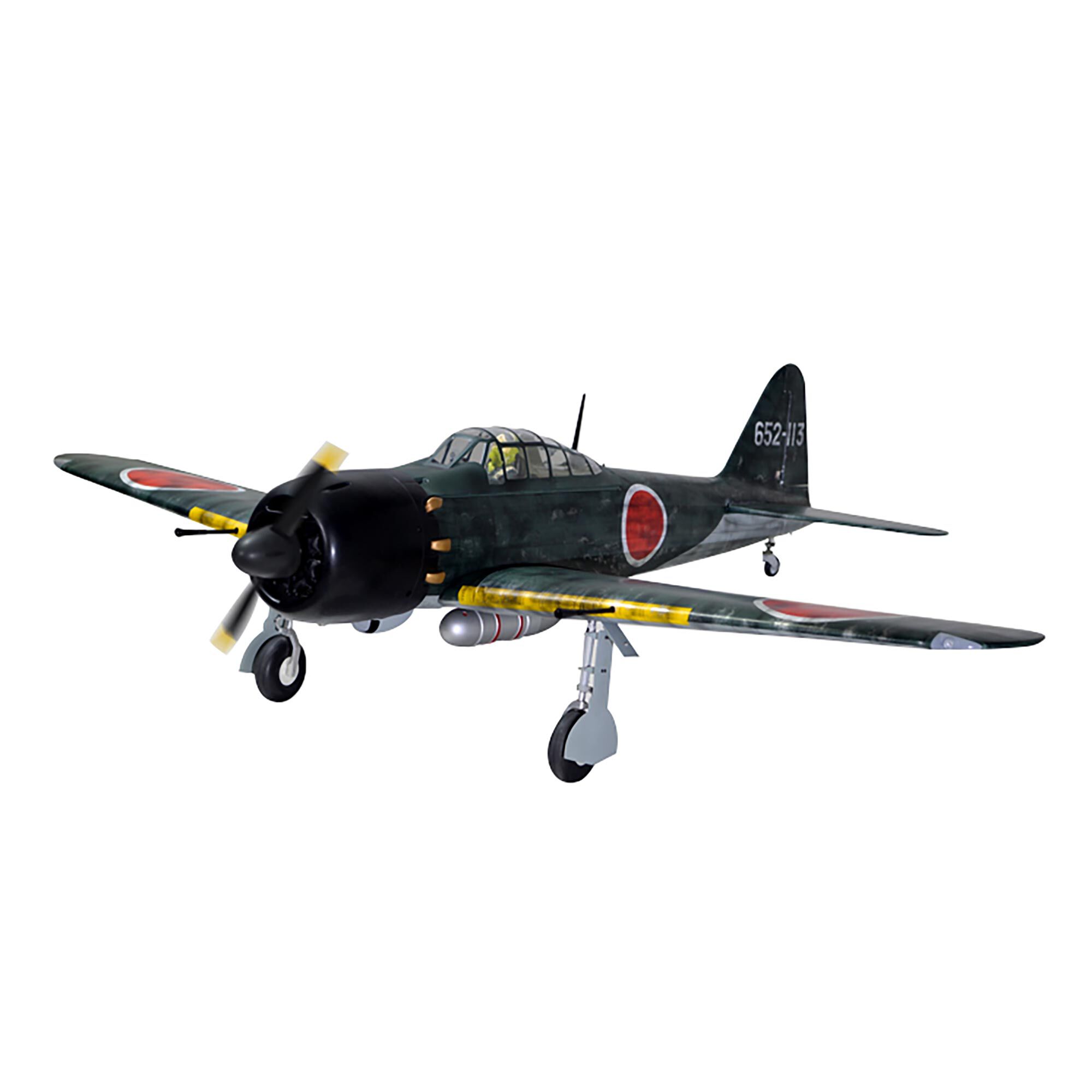

A6M Zero 30-38cc ARFPMMA0199
Slick 580 120cc ARFPMMA0212

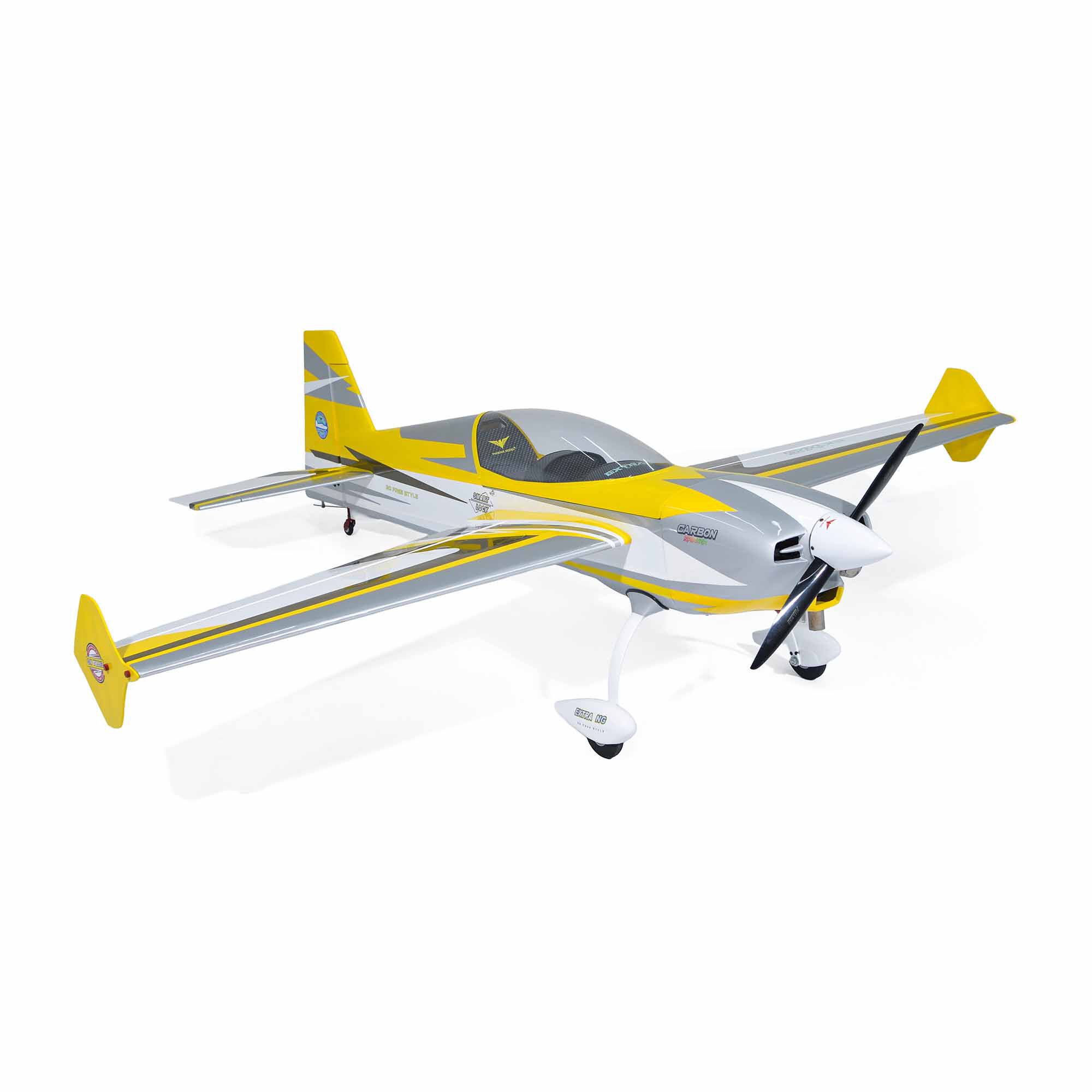

Extra NG 35cc ARF, 74"PMMA0243
1/4 Sbach 342 1.20 GP EP ARF 65.5"PMMA0310
Edge 540 .46-.55 GP EP ARF 55.5"PMMA0360
1:5 3/4 Waco F5C GP EP Gas ARF 63"PMMA0390
1/7 P-51 Mustang .46-.55 GP EP ARF 55.5"PMMA0400

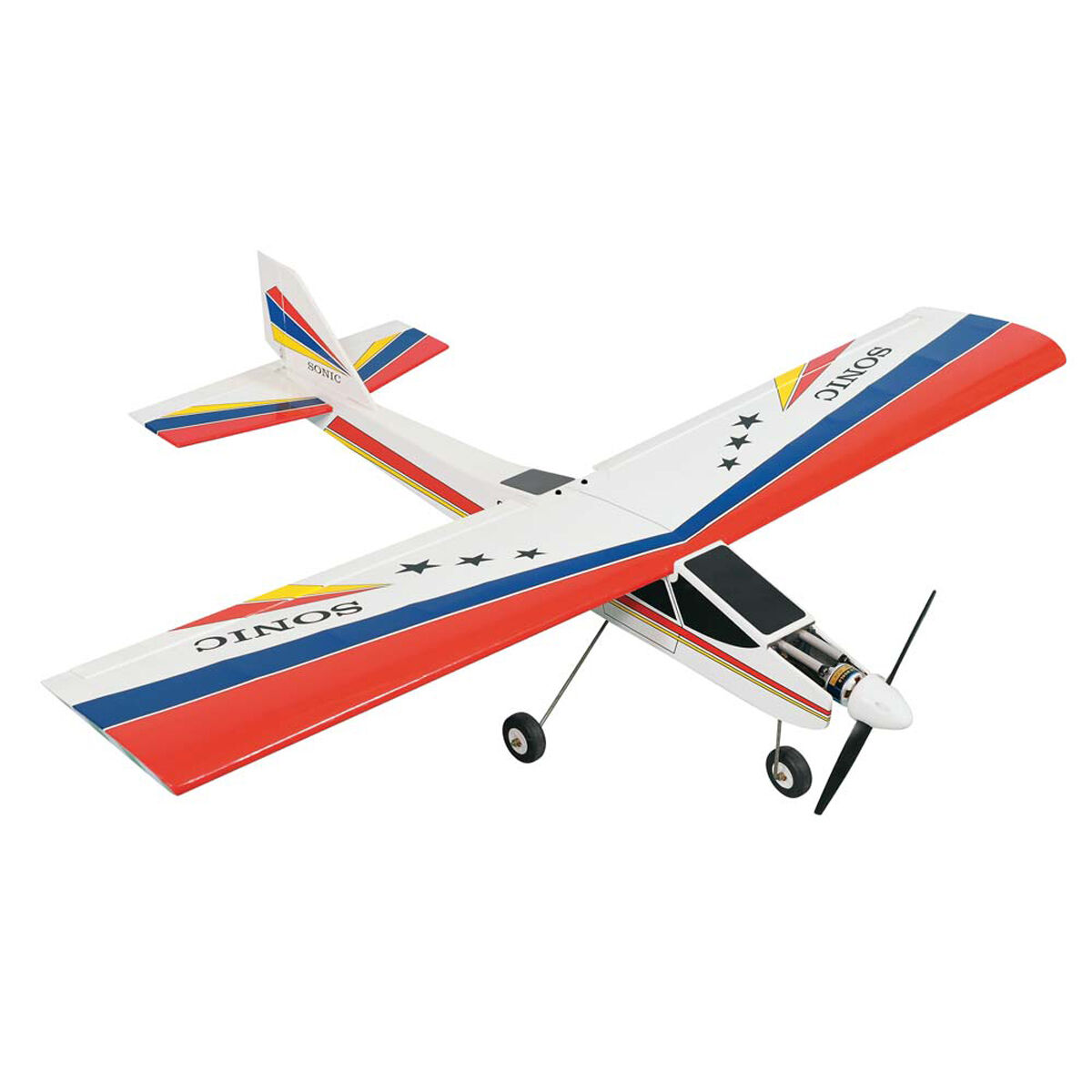

Sonic Mk2 High-Wing .25-.32 GP EP ARFPMMA1125

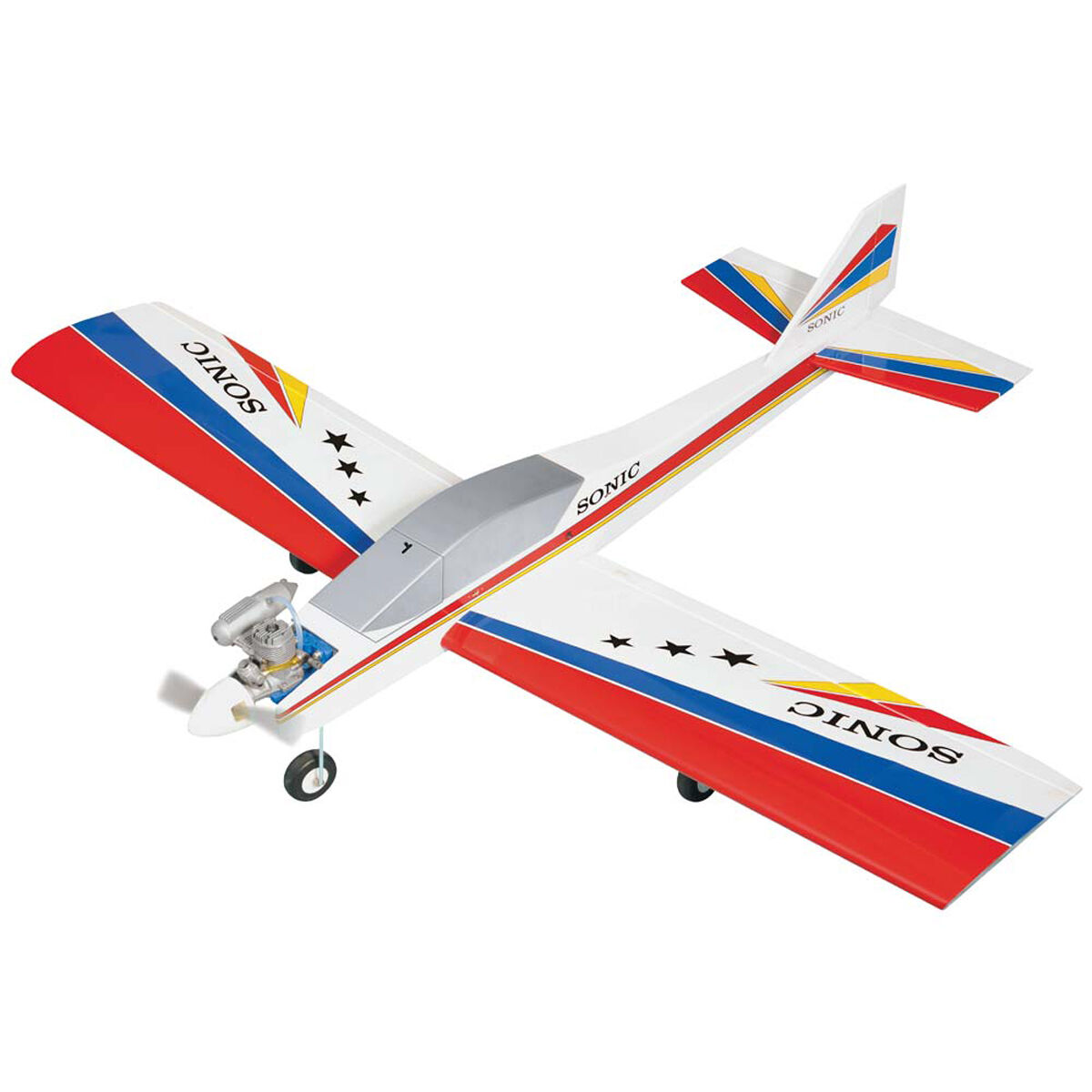

Sonic Mk2 Low-Wing .25-.32 GP EP ARF 52.7PMMA1230

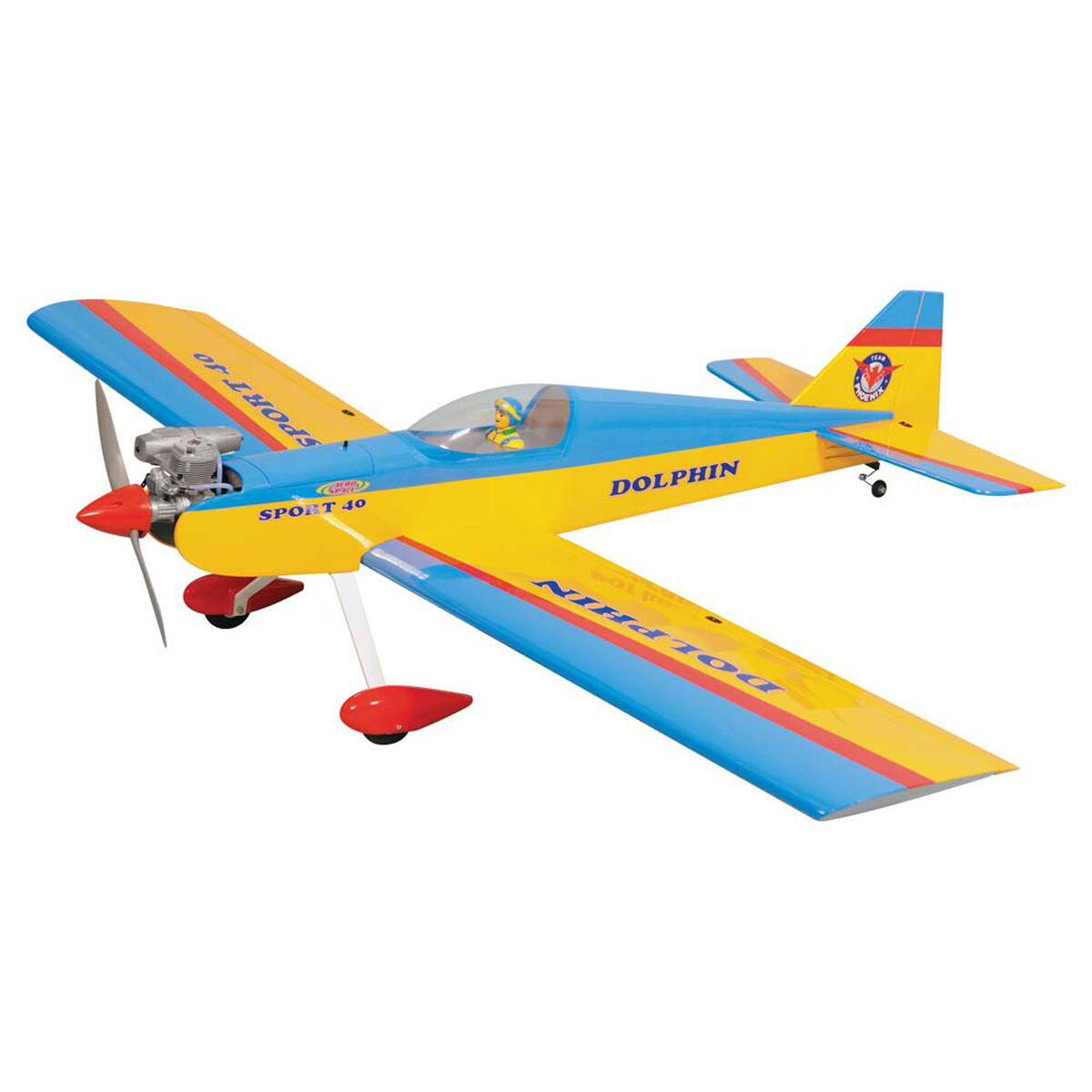

1/6 Dolphin Mk2 .46-.55 GP EP ARF 63"PMMA1250
Tiger 3 Sport .46-.55 GP EP ARF 63"PMMA1356
Stinson .46-.55 GP EP ARF 63.3"PMMA1357
1/8 Spitfire Mk2 .46-.55 GP EP ARF 55"PMMA1359
Strega Mk2 .46-.55 GP EP ARF 55.5"PMMA1360
1:6 1/2 Cessna Skylane 182 .46-.55 EP ARFPMMA1547
1/6 Decathlon Mk2 .46-.55 GP EP ARF 65.7"PMMA1560
1/5 Ryan STA GP EP Gas ARF 70.8"PMMA1600
F4U Corsair .46-.55 GP EP ARF 58.5"PMMA1605
Spacewalker .46-.55 GP EP ARF 63"PMMA1700
Piper J3 Cub .46-.55 GP EP ARF 84.6"PMMA1705
Focke-Wulf FW 190 .46-.55 GP EP ARFPMMA1840
ZERO A6M EP/GP .46-.55 ARF 55"PMMA1865
Aurora Sport Aerobat EP/GP .46-.55 ARF 59.1"PMMA1870

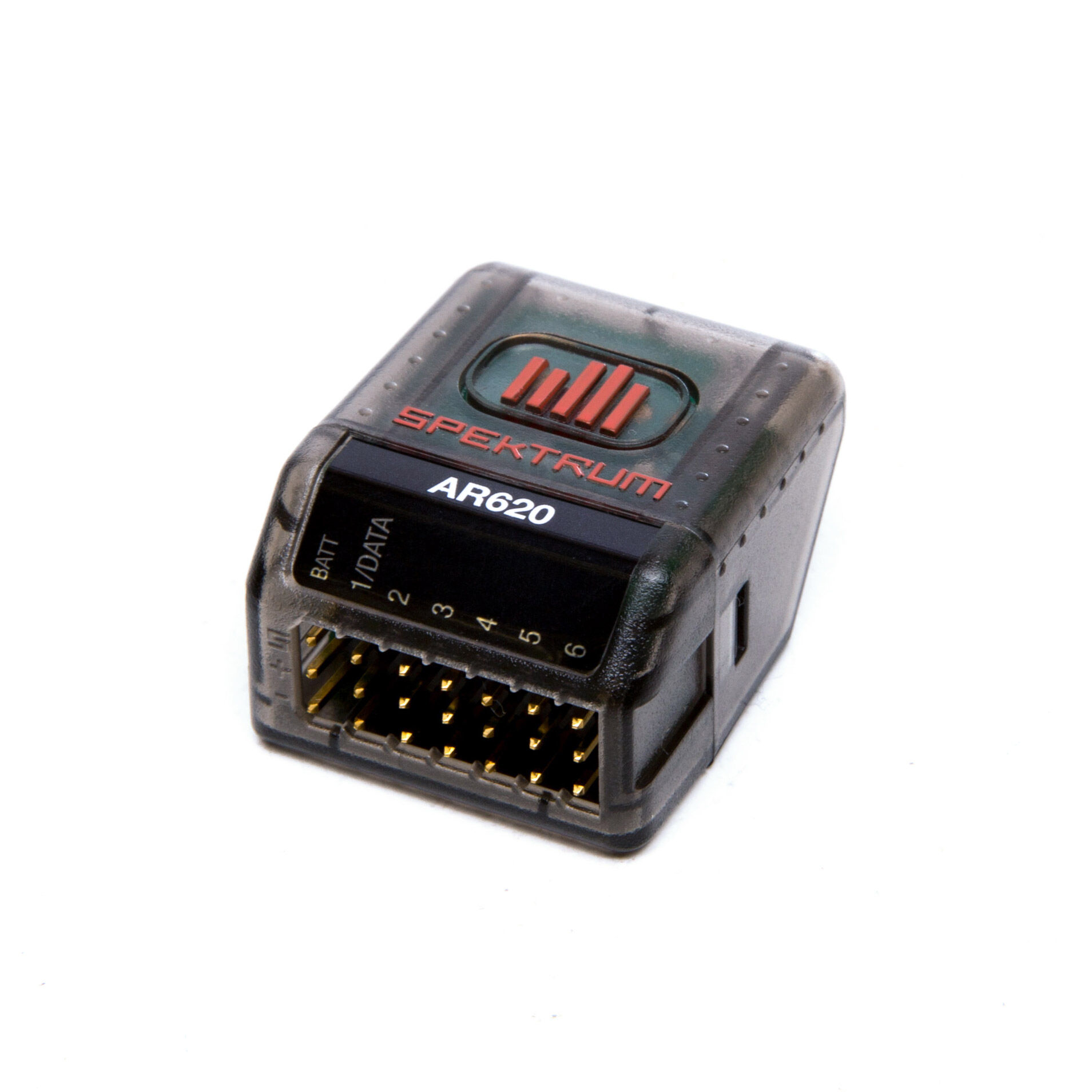

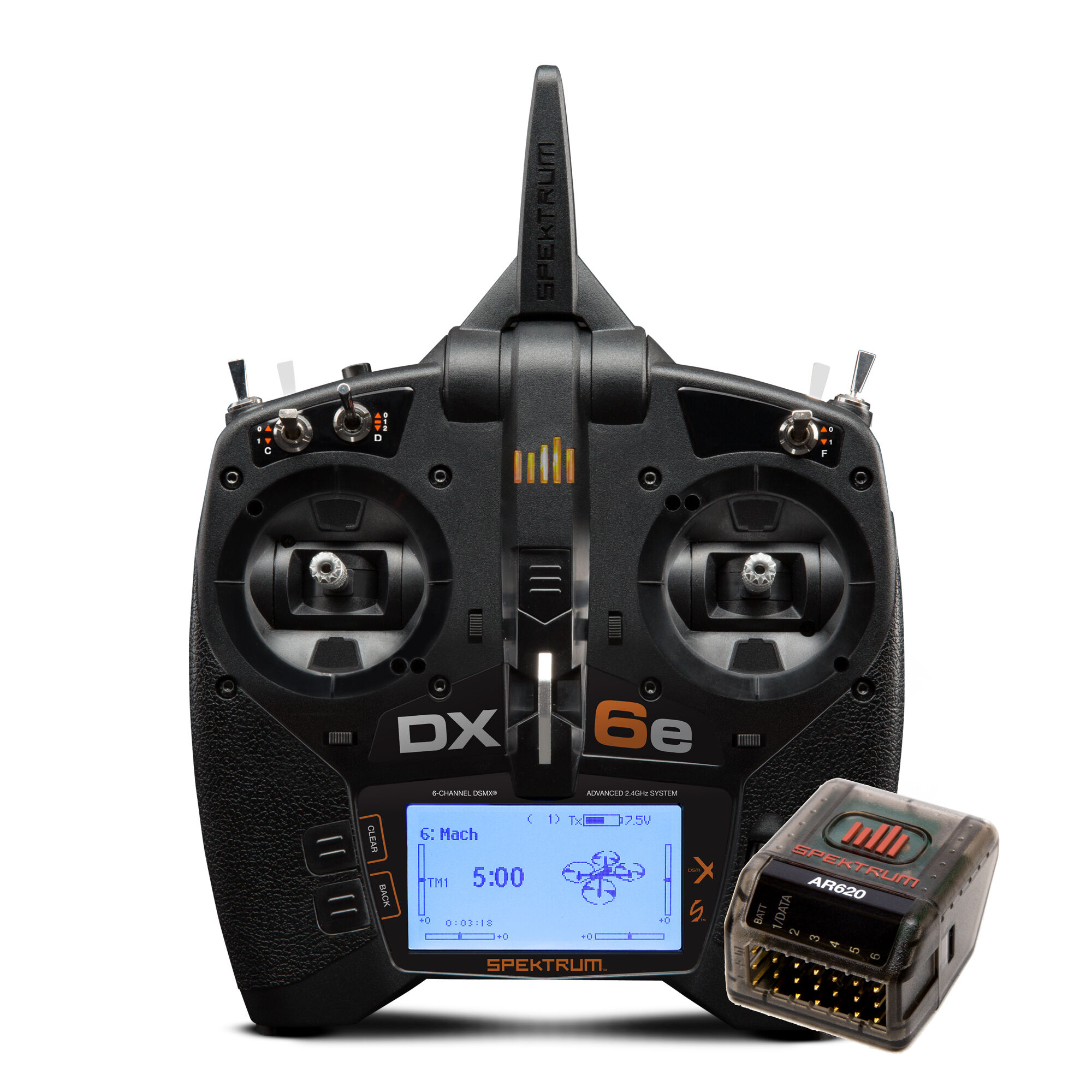

DX6e 6-Channel System with AR620 ReceiverSPM6655EUloading
