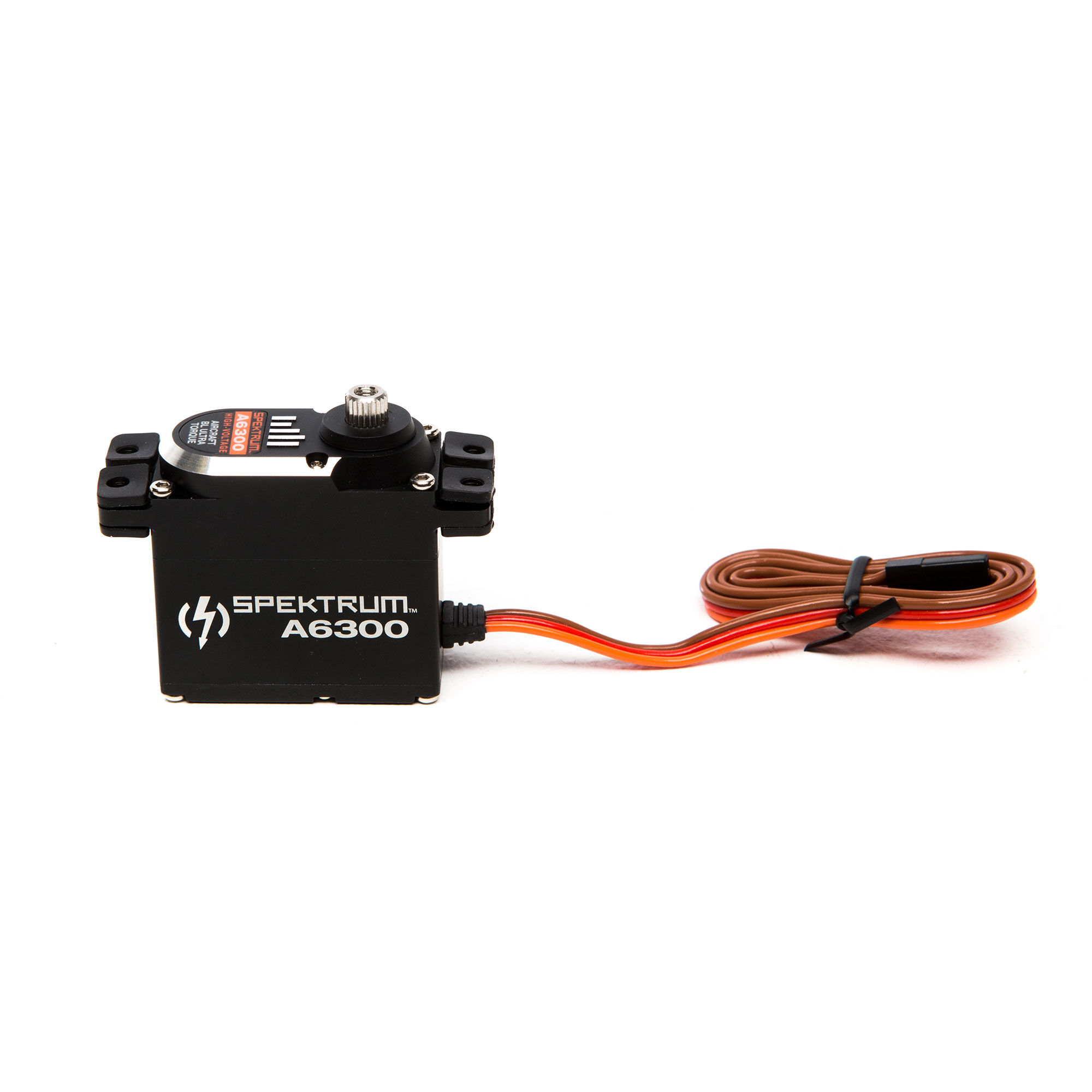

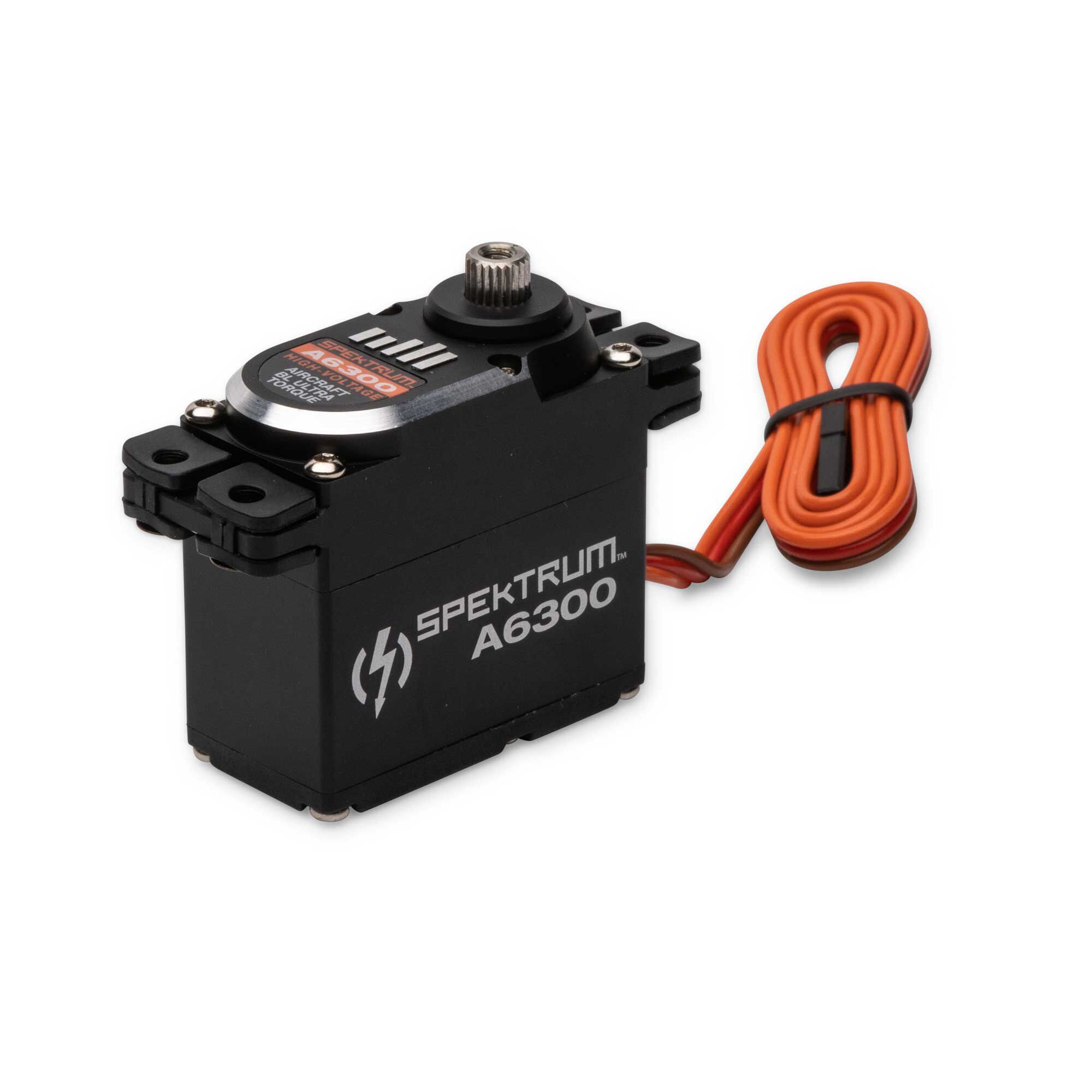

The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.

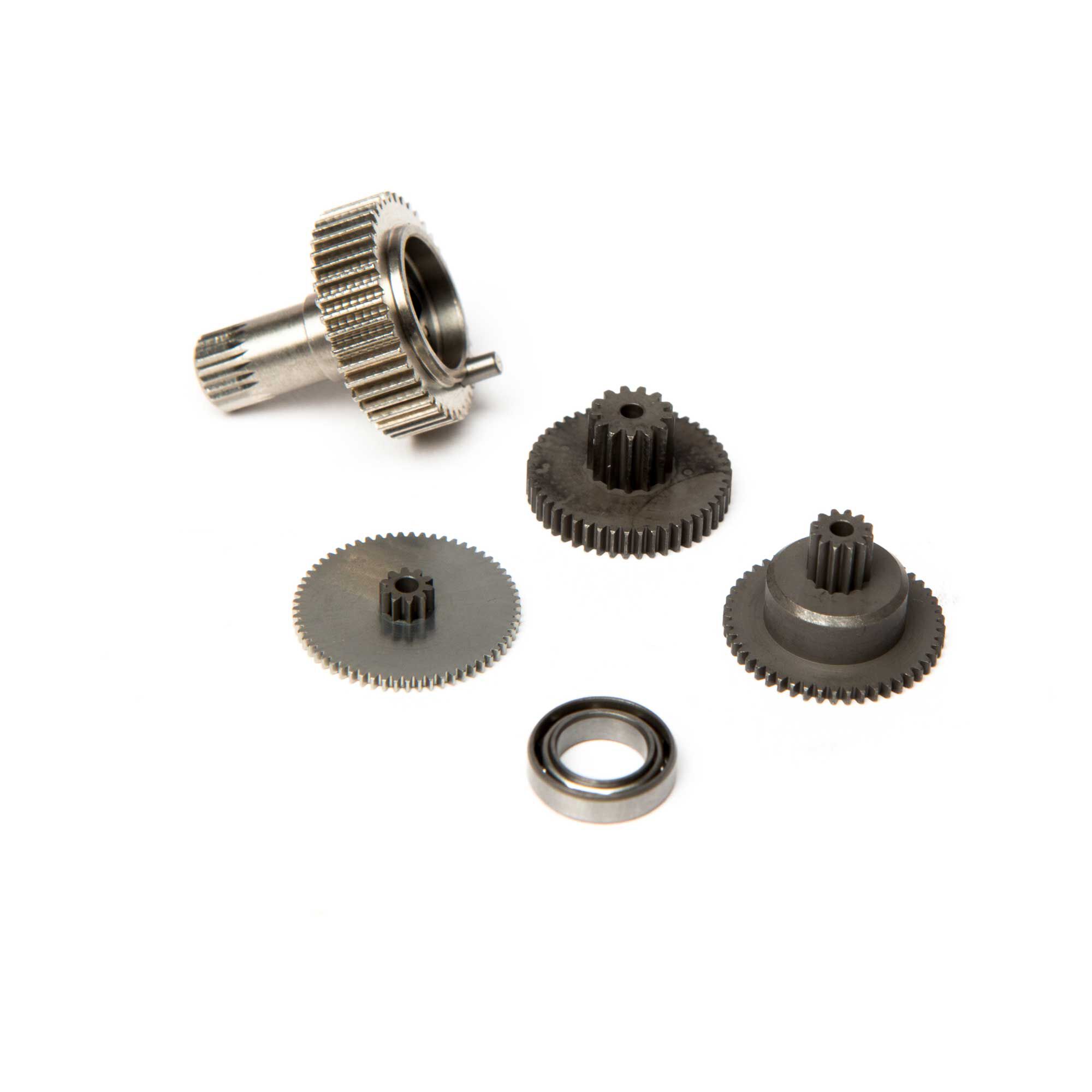

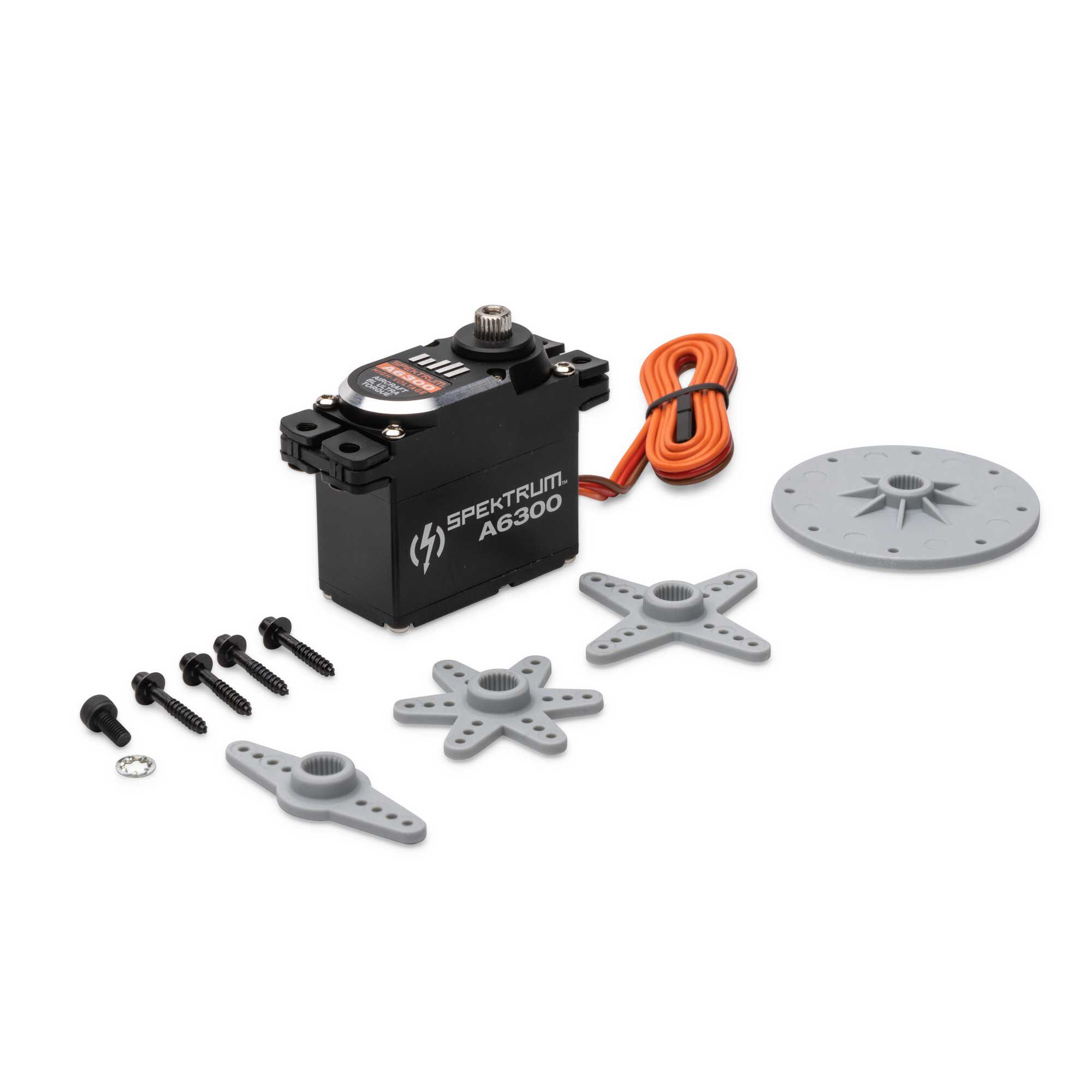

The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.
The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobatics, jets or any application where massive amounts of torques and holding power are a must.
| Product Weight | 2.81oz (79.80g) |
|---|---|
| Product Length | 1.57" (40 mm) |
| Product Width | 0.79" (20 mm) |
| Product Height | 1.49" (38 mm) |
| Connector Type | Universal |
| Application | Airplane |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Connector Wire Length | 18" (457 mm) |
| Deadband | 2µs, 3µs |
| Gear Type | Metal |
| Input Voltage | 6.0-8.4V |
| Maximum Servo Speed | 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V |
| Maximum Servo Torque | 378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V |
| Motor Type | Brushless |
| Product Application | Air |
| Programmable | No |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Spline Count | 23 - Tooth |
| Water-Resistant | No |
| Wire Gauge | 22 AWG |
This replacement part is used in the following complete models.
6 Channel 2.4 GHz FMS Air ReceiverFMMRX02

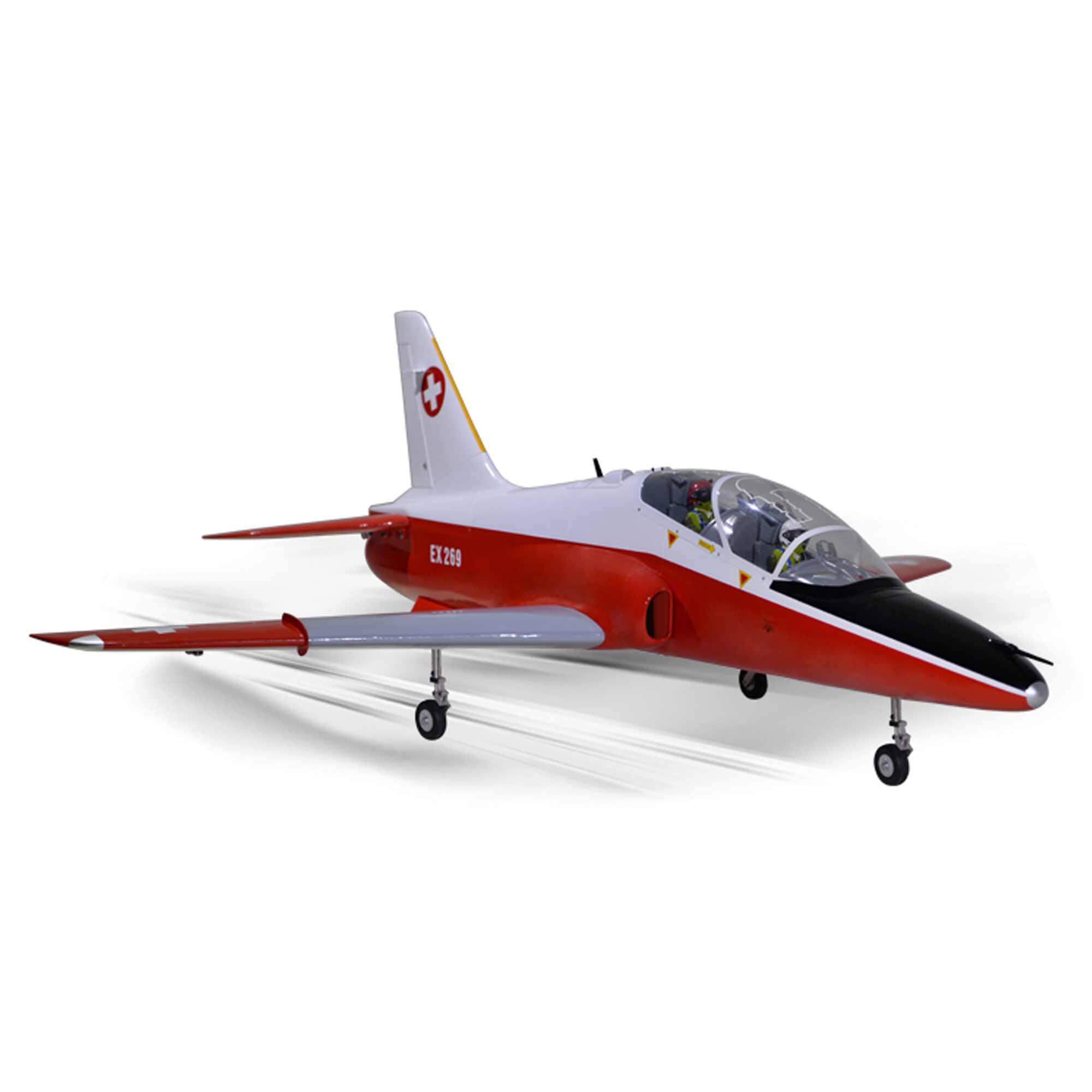

Hawk/T-45 140-160N ARF with Retract Set, KingTech K-160G4+, Spektrum AR20410T Receiver, Synapse AS3X+ Module, and Spektrum ServosHAN13750CRSSK160
Valiant 10cc ARF, 69"HAN5080
Slick 580 120cc ARFPMMA0212
1/4 Sbach 342 1.20 GP EP ARF 65.5"PMMA0310
Edge 540 .46-.55 GP EP ARF 55.5"PMMA0360
1:5 3/4 Waco F5C GP EP Gas ARF 63"PMMA0390
1/7 P-51 Mustang .46-.55 GP EP ARF 55.5"PMMA0400

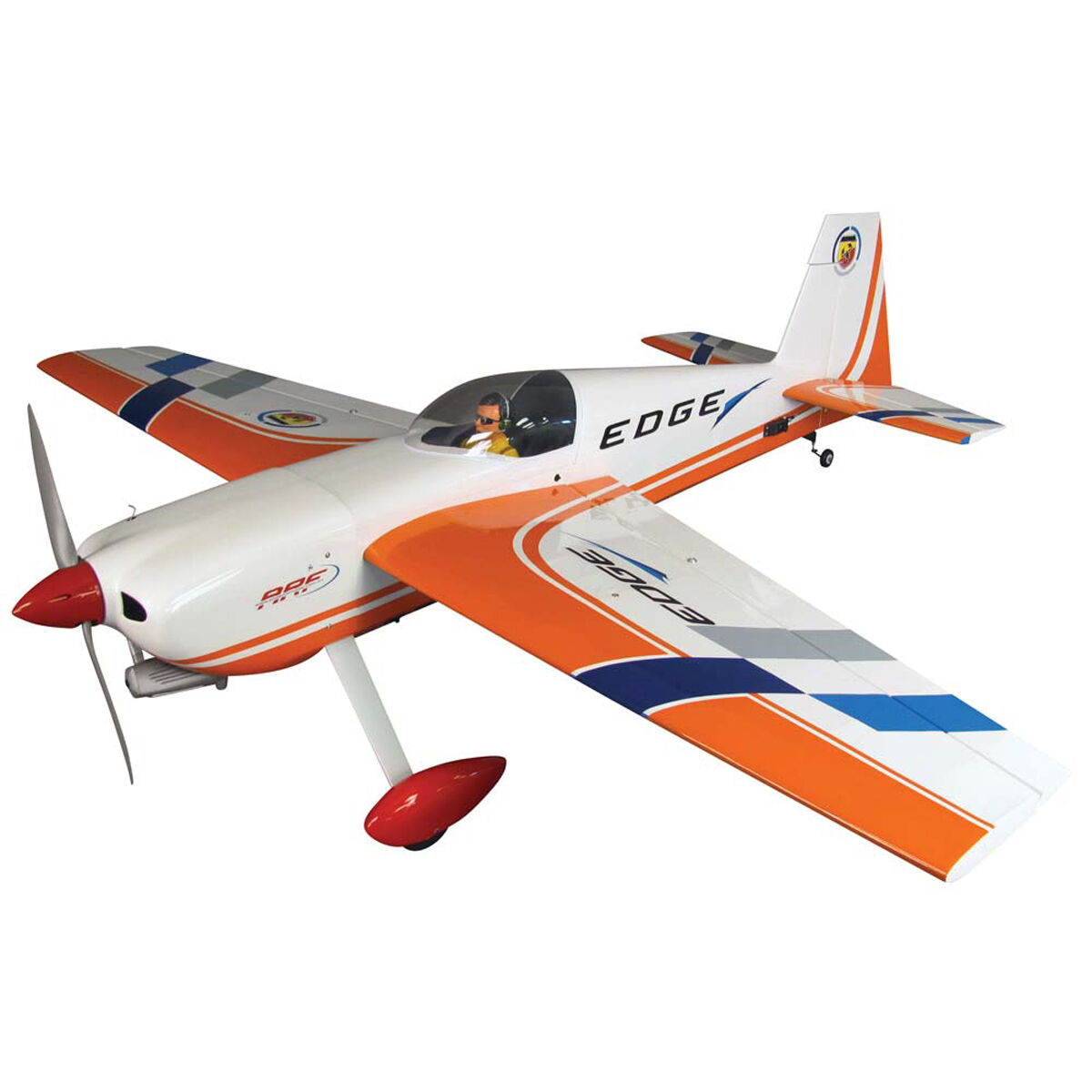

Edge 540 .91-1.20 GP EP ARF 65"PMMA0580
Sonic Mk2 High-Wing .25-.32 GP EP ARFPMMA1125
Sonic Mk2 Low-Wing .25-.32 GP EP ARF 52.7PMMA1230
1/6 Dolphin Mk2 .46-.55 GP EP ARF 63"PMMA1250
Tiger 3 Sport .46-.55 GP EP ARF 63"PMMA1356
Stinson .46-.55 GP EP ARF 63.3"PMMA1357
1/8 Spitfire Mk2 .46-.55 GP EP ARF 55"PMMA1359
Strega Mk2 .46-.55 GP EP ARF 55.5"PMMA1360
1:6 1/2 Cessna Skylane 182 .46-.55 EP ARFPMMA1547
1/6 Decathlon Mk2 .46-.55 GP EP ARF 65.7"PMMA1560
K8B 3500mm Sailplane ARF 137.8"PMMA1582
1/5 Ryan STA GP EP Gas ARF 70.8"PMMA1600
F4U Corsair .46-.55 GP EP ARF 58.5"PMMA1605
Spacewalker .46-.55 GP EP ARF 63"PMMA1700
Piper J3 Cub .46-.55 GP EP ARF 84.6"PMMA1705
P-40 Warhawk 30-35cc Electric/Gas ARFPMMA1770E
Strega 30cc GP EP ARF 68.9"PMMA1785
Westland Lysander 50-60cc ARF, 126"PMMA1810
1:4 3/4 Spitfire 50-61cc Electric/Gas ARFPMMA1821E
Stinson Reliant 30-35cc Gas/Electric ARF 86.6"PMMA1835
Focke-Wulf FW 190 .46-.55 GP EP ARFPMMA1840
F4U Corsair 1.20/20cc Electric/Gas ARFPMMA1845E

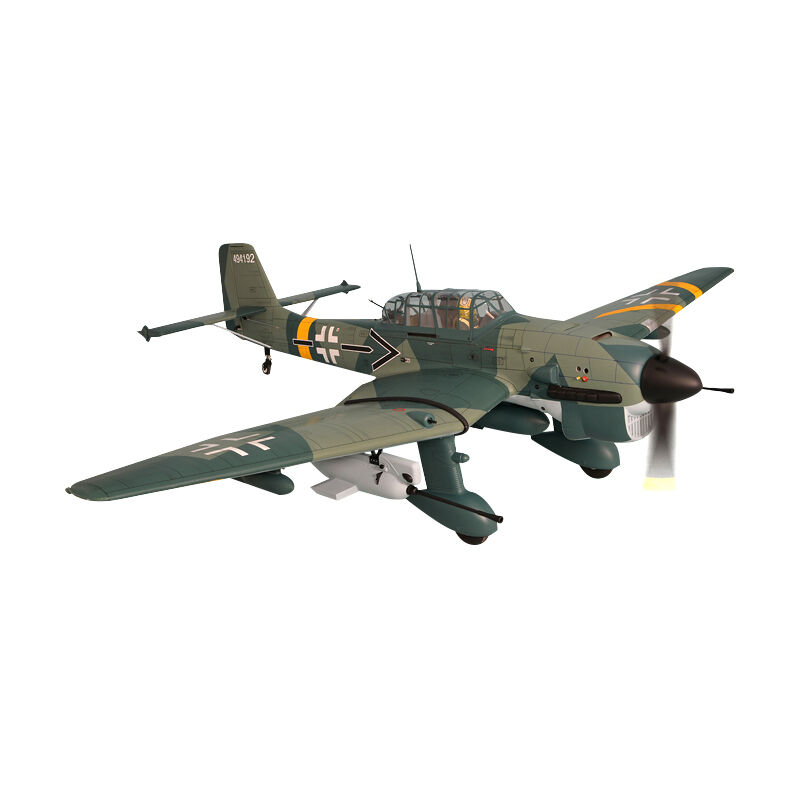

Stuka Ju 87 61cc Gas EP ARF 94.4"PMMA1850
P-47 Thunderbolt 30-35cc Gas EP ARFPMMA1860
ZERO A6M EP/GP .46-.55 ARF 55"PMMA1865
Aurora Sport Aerobat EP/GP .46-.55 ARF 59.1"PMMA1870
Slick Aerobat EP 60cc ARF 86.5"PMMA1880
Bergfalke 3.3m EP Glider ARF 129.9"PMMA1885
