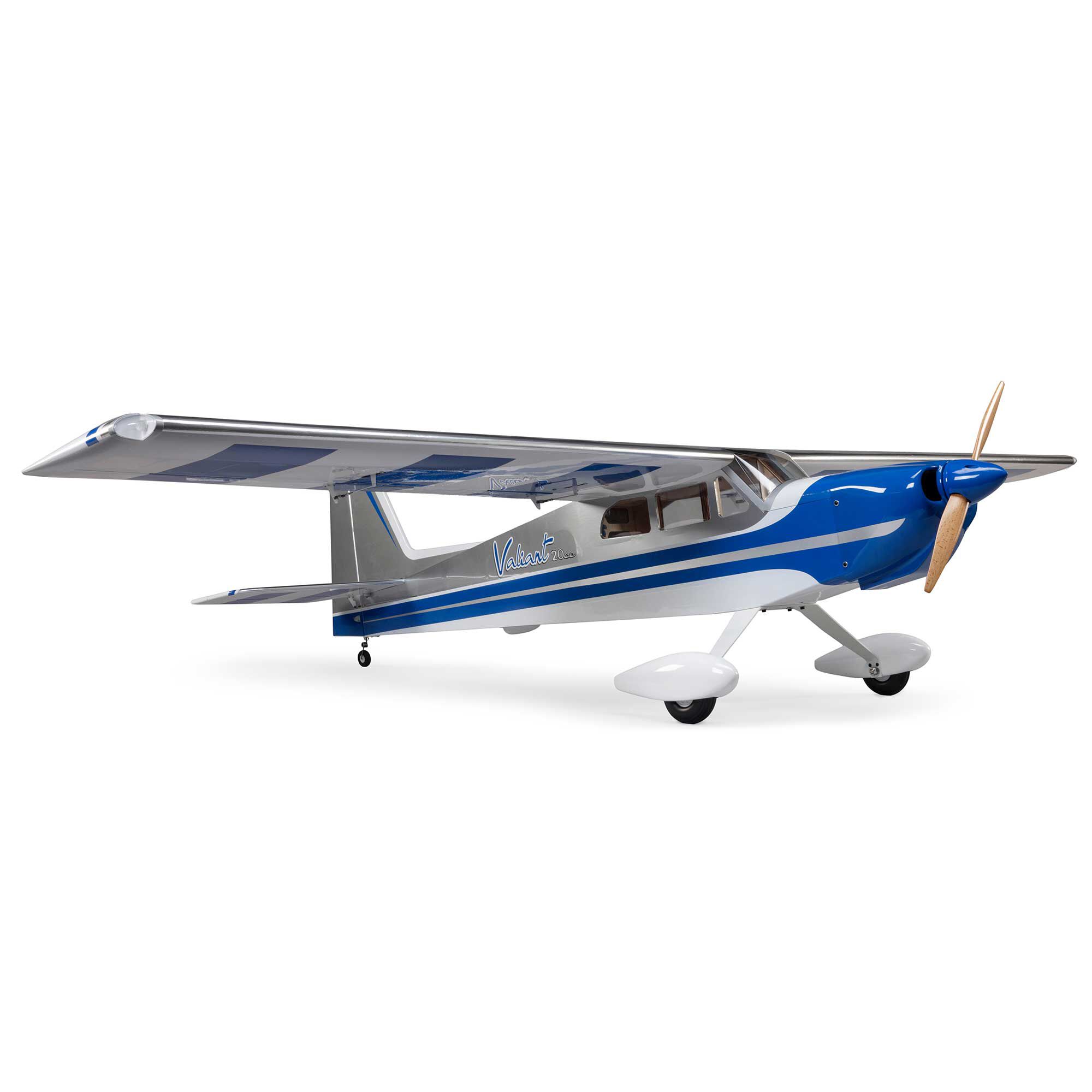

Hangar 9 Valiant 20cc ARF, 86.5"-HAN15040

HAN15040
📅 Releasing May 13 🛒 Pre-Order To Lock Your Loved Hangar 9 2200mm Valiant With Unmissable Deals!
$449.99 USD
$0.00 USD
Quantity
Only 0 left
Volume Pricing
Quantity
Price
1+
$449.99 USD each
Shipping Policy
Return Policy
90-Day Warranty Policy

Product information

Video

Overview
Hangar 9 Valiant 20cc: A scaled-down giant-scale with an 86.5" wingspan, featuring a semi-symmetrical airfoil and flaps for STOL takeoffs and crisp aerobatics—compatible with 20cc gas and 4S-6S electric power.

Features

Giant Scale 86.5” Wingspan
   Strong yet lightweight balsa/lite-ply airframe finished with genuine UltraCote film covering.
Glow, Gas or Electric Power
   Choose your preferred power system – compatible with 20cc gas, glow, or equivalent electric.
Functional Flaps with Dual Travel
   Flaps enable shorter takeoffs/landings and can travel both ways for full-span aileron/flaperon/spoileron setups.

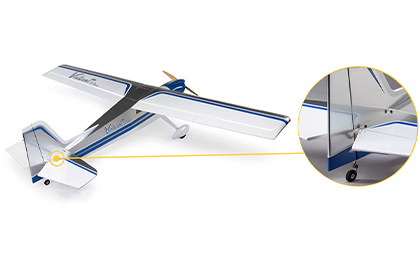

Factory-Installed Hinges & Bolt-On Tail
   Pre-installed hinges and bolt-on tail surfaces considerably reduce assembly time.
Two-Piece Wing for Easy Transport
   Slots in fuselage hold the wing tube; two-piece wing for more convenient storage and transport.
Aluminum Landing Gear & Floats Option
   Durable aluminum gear with wheel pants; optional silver-painted foam floats and strut sets for water flying(sold separately).

Specification

Airfoil Shape:Semi Symmetrical Material:Wood

Approximate Assembly Time:15-20 Hours

Minimum Required Radio:5+ Channel
Battery:Sold Separately Product Length:62.32" (1583 mm)
CG (Center of Gravity):6 9/32" (160 mm) behind leading edge of the wing



Product Weight:Recommended Battery: 10.8 - 11.2lbs (4.9 - 5.1kg)
Charger:Sold Separately Retracts:Optional
Completion Level:Almost Ready-To-Fly Skill Level:Level 4
Engine Size:20cc 2 to 4-stroke gas/petrol (sold separately) Spinner Size:2.75" (70 mm)
Flaps:Yes Trim Scheme Colors:White (UltraCote HANU870), Deep Blue, (UltraCote HANU873),Silver (UltraCote HANU881)
LiPo Compatibility:4S, 6S, 5S Wingspan:86.46" (2196 mm)

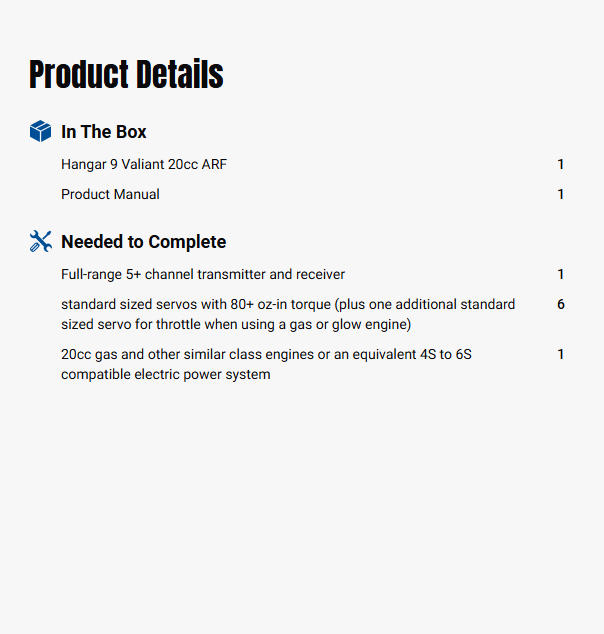

Packing List

In The Box
(1)Hangar 9 Valiant 20cc ARF
(1)Product Manual

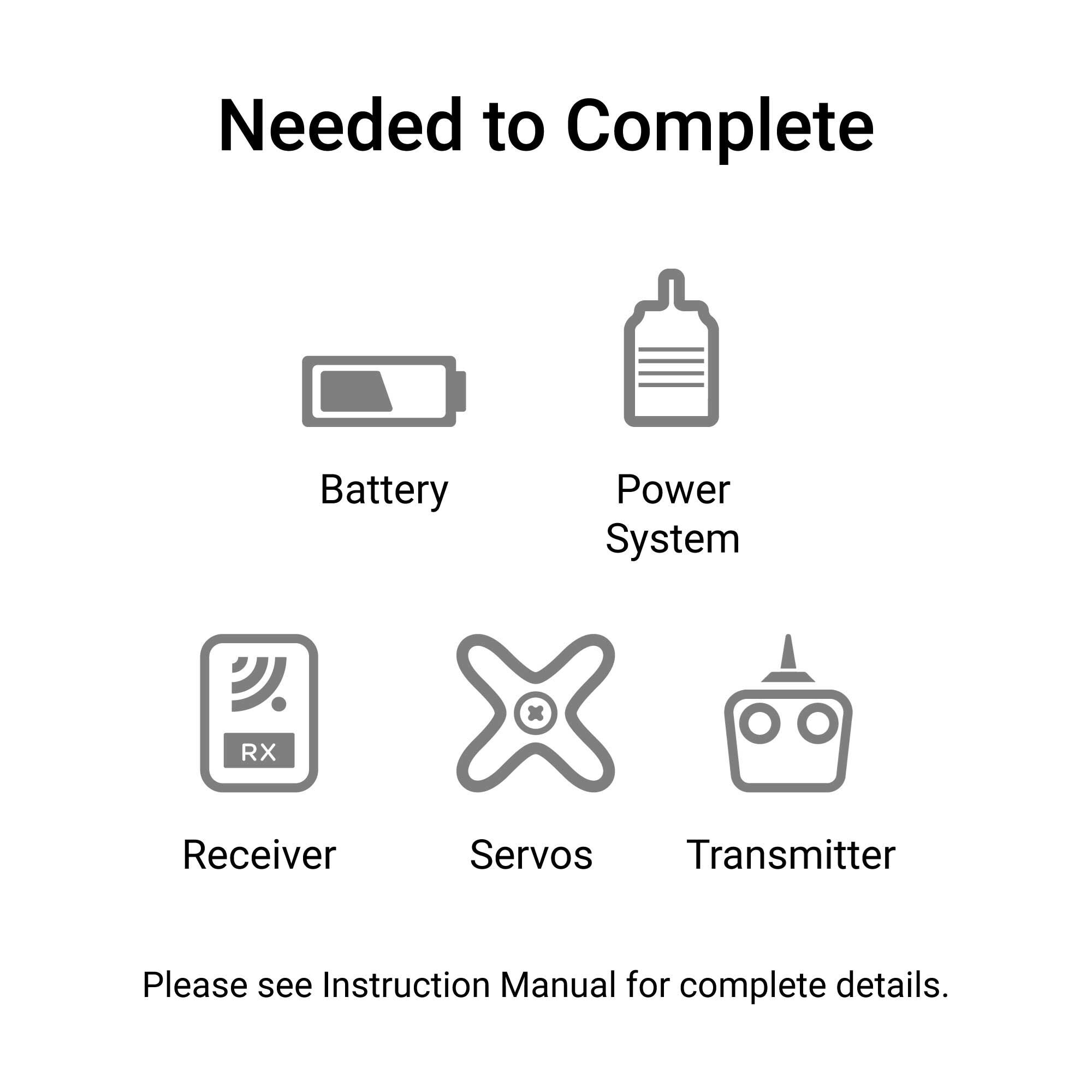

Needed to Complete
(1)Full-range 5+ channel transmitter and receiver
(6)standard sized servos with 80+ oz-in torque (plus one additional standard sized servo for throttle when using a gas or glow engine)
(1)20cc gas and other similar class engines or an equivalent 4S to 6S compatible electric power system


  • Video

  • Features

  • Specification

  • Packing List

  • Manual

Overview
Hangar 9 Valiant 20cc: A scaled-down giant-scale with an 86.5" wingspan, featuring a semi-symmetrical airfoil and flaps for STOL takeoffs and crisp aerobatics—compatible with 20cc gas and 4S-6S electric power.
Giant Scale 86.5” Wingspan
   Strong yet lightweight balsa/lite-ply airframe finished with genuine UltraCote film covering.
Glow, Gas or Electric Power
   Choose your preferred power system – compatible with 20cc gas, glow, or equivalent electric.
Functional Flaps with Dual Travel
   Flaps enable shorter takeoffs/landings and can travel both ways for full-span aileron/flaperon/spoileron setups.
Factory-Installed Hinges & Bolt-On Tail
   Pre-installed hinges and bolt-on tail surfaces considerably reduce assembly time.
Two-Piece Wing for Easy Transport
   Slots in fuselage hold the wing tube; two-piece wing for more convenient storage and transport.
Aluminum Landing Gear & Floats Option
   Durable aluminum gear with wheel pants; optional silver-painted foam floats and strut sets for water flying(sold separately).
Airfoil Shape:Semi Symmetrical Material:Wood

Approximate Assembly Time:15-20 Hours

Minimum Required Radio:5+ Channel
Battery:Sold Separately Product Length:62.32" (1583 mm)
CG (Center of Gravity):6 9/32" (160 mm) behind leading edge of the wing



Product Weight:Recommended Battery: 10.8 - 11.2lbs (4.9 - 5.1kg)
Charger:Sold Separately Retracts:Optional
Completion Level:Almost Ready-To-Fly Skill Level:Level 4
Engine Size:20cc 2 to 4-stroke gas/petrol (sold separately) Spinner Size:2.75" (70 mm)
Flaps:Yes Trim Scheme Colors:White (UltraCote HANU870), Deep Blue, (UltraCote HANU873),Silver (UltraCote HANU881)
LiPo Compatibility:4S, 6S, 5S Wingspan:86.46" (2196 mm)
In The Box
(1)Hangar 9 Valiant 20cc ARF
(1)Product Manual

Needed to Complete
(1)Full-range 5+ channel transmitter and receiver
(6)standard sized servos with 80+ oz-in torque (plus one additional standard sized servo for throttle when using a gas or glow engine)
(1)20cc gas and other similar class engines or an equivalent 4S to 6S compatible electric power system


Highlight Details

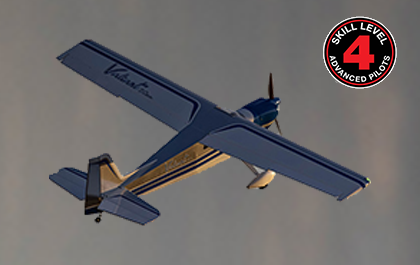

Skill Level 4 – Advanced Pilots (Advanced Experience Required)
Skill Level 4 aircraft like this are suitable for advanced RC pilots who have the skills to assemble, set up, and fly similar models. This ARF version requires more experience than the PNP version because you must select and install a suitable power system and electronics. You should have the skills to fly models like E-flite Turbo Timber Evolution 1.5m, Turbo Timber SWS 2.0m, Carbon-Z Cessna 150T 2.1m, Carbon-Z Cub SS 2.1m, or similar models before attempting the Valiant 20cc.
Convenience Features

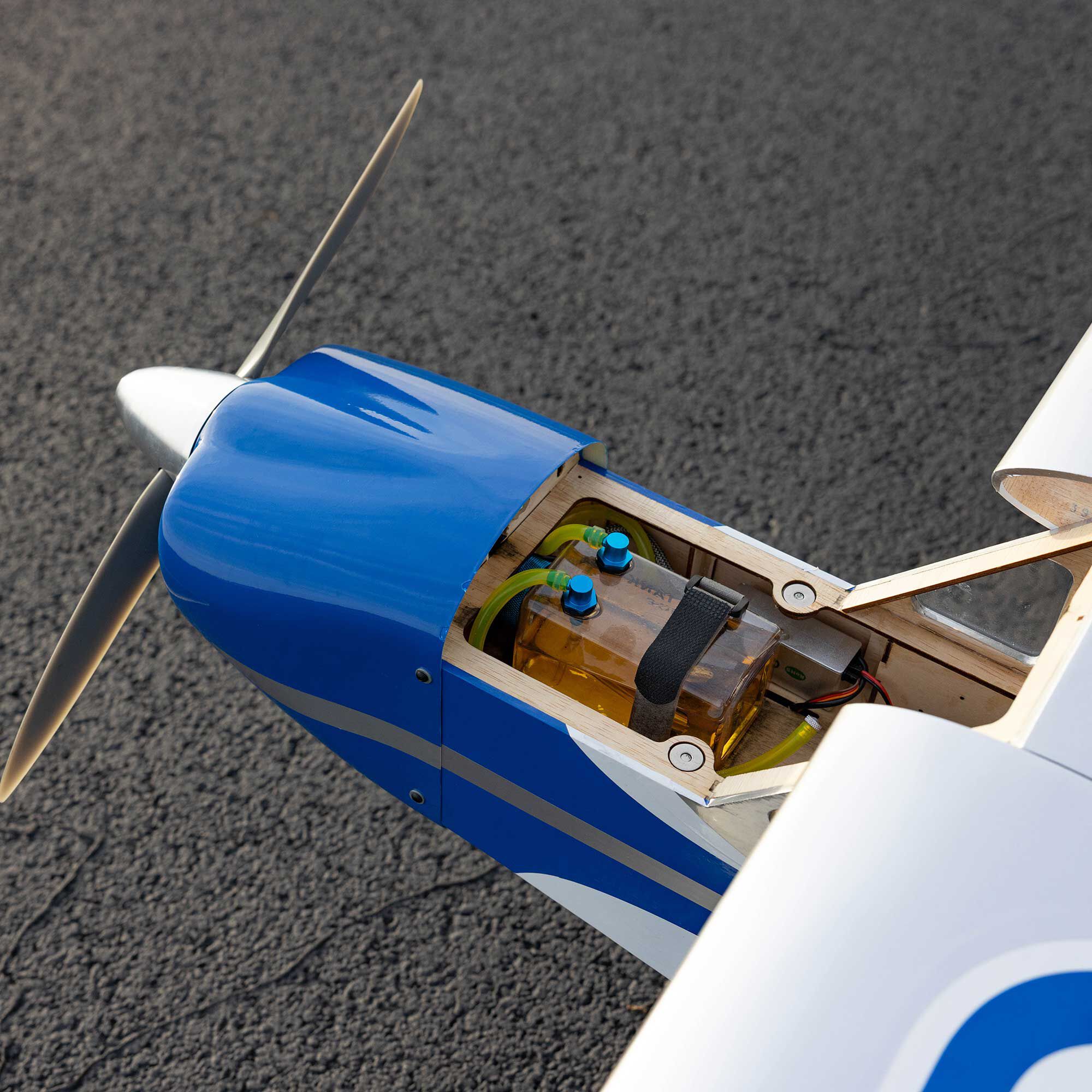

The large, top-mounted and magnetically secured windshield hatch cover makes it easy to install and remove batteries for electric power options, and to access the fuel tank and other components for gas and glow setups. There's also a second hatch for additional electronics access located on top of the fuselage between the two-piece wings that secure quickly and easily with thumbscrews plus there are slots in the fuselage to hold the wing tube for more convenient storage and transport.
Wood Airframe
The balsa and lite-ply airframe is lightweight, stiff, and strong. Best of all, it arrives mostly factory-assembled and finished in genuine UltraCote film. Durable, factory-installed metal-geared digital Spektrum A6380 servos are included. If you damage any airframe parts and can't repair them, a full line of replacement parts is readily available.

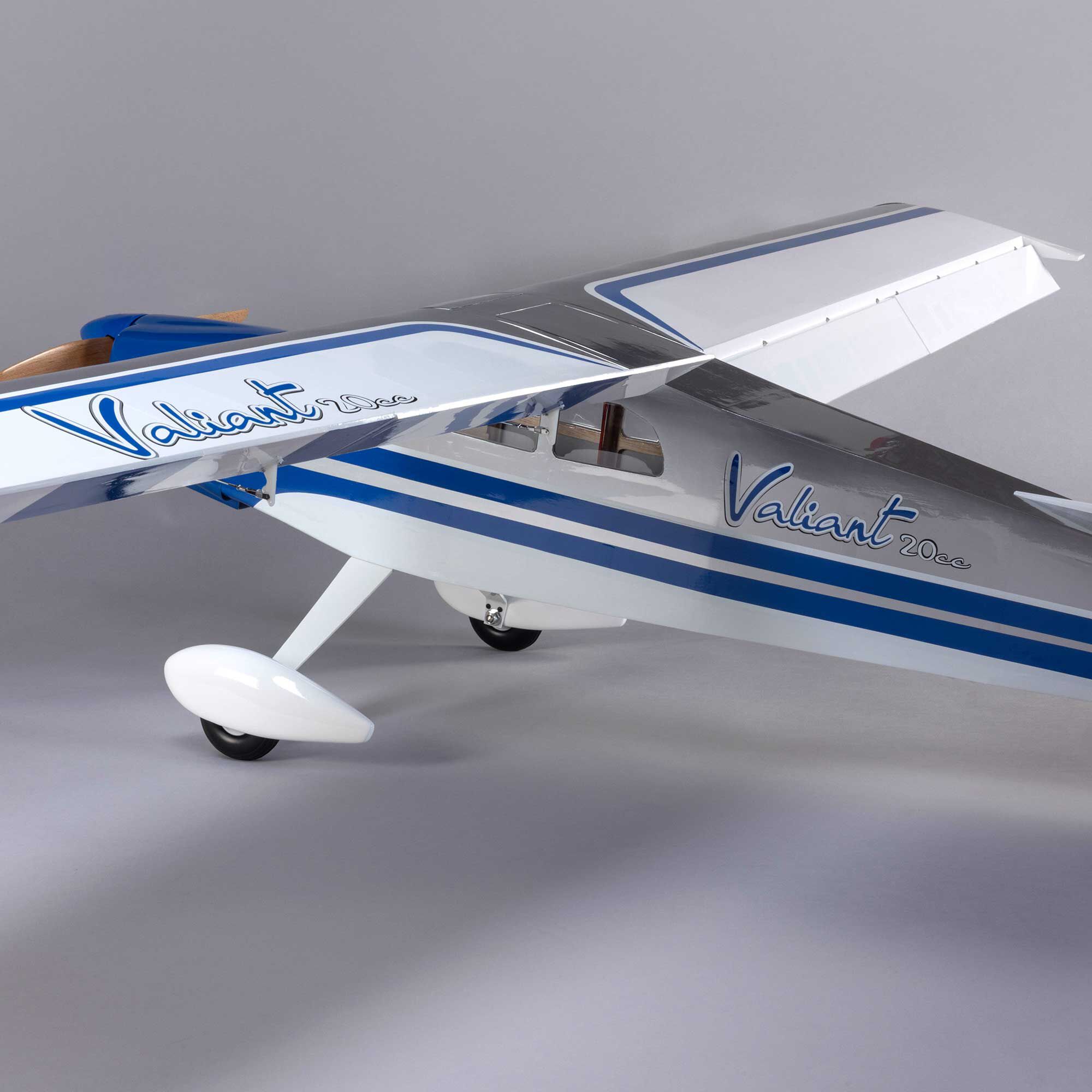

Gear Options
Both versions include simple yet durable aluminum landing gear with optional-use wheel pants. Or you can install the optional silver-painted foam float set (EFLA5600S; sold separately) and float strut set (HAN15066; sold separately) sets to fly at large ponds and lakes!
Almost-Ready-To-Fly Flexibility
This Almost-Ready-To-Fly (ARF) version arrives mostly factory assembled with pre-installed hinges and bolt-on tail surfaces that save you considerable time and effort. Plus, it's ready for you to install a 20cc gas engine, similar-class glow engines, or an equivalent electric power system and the electronics you prefer.
Skill Level 4 – Advanced Pilots (Advanced Experience Required)
Skill Level 4 aircraft like this are suitable for advanced RC pilots who have the skills to assemble, set up, and fly similar models. This ARF version requires more experience than the PNP version because you must select and install a suitable power system and electronics. You should have the skills to fly models like E-flite Turbo Timber Evolution 1.5m, Turbo Timber SWS 2.0m, Carbon-Z Cessna 150T 2.1m, Carbon-Z Cub SS 2.1m, or similar models before attempting the Valiant 20cc.
Convenience Features
The large, top-mounted and magnetically secured windshield hatch cover makes it easy to install and remove batteries for electric power options, and to access the fuel tank and other components for gas and glow setups. There's also a second hatch for additional electronics access located on top of the fuselage between the two-piece wings that secure quickly and easily with thumbscrews plus there are slots in the fuselage to hold the wing tube for more convenient storage and transport.
Wood Airframe
The balsa and lite-ply airframe is lightweight, stiff, and strong. Best of all, it arrives mostly factory-assembled and finished in genuine UltraCote film. Durable, factory-installed metal-geared digital Spektrum A6380 servos are included. If you damage any airframe parts and can't repair them, a full line of replacement parts is readily available.
Gear Options
Both versions include simple yet durable aluminum landing gear with optional-use wheel pants. Or you can install the optional silver-painted foam float set (EFLA5600S; sold separately) and float strut set (HAN15066; sold separately) sets to fly at large ponds and lakes!
Almost-Ready-To-Fly Flexibility
This Almost-Ready-To-Fly (ARF) version arrives mostly factory assembled with pre-installed hinges and bolt-on tail surfaces that save you considerable time and effort. Plus, it's ready for you to install a 20cc gas engine, similar-class glow engines, or an equivalent electric power system and the electronics you prefer.
