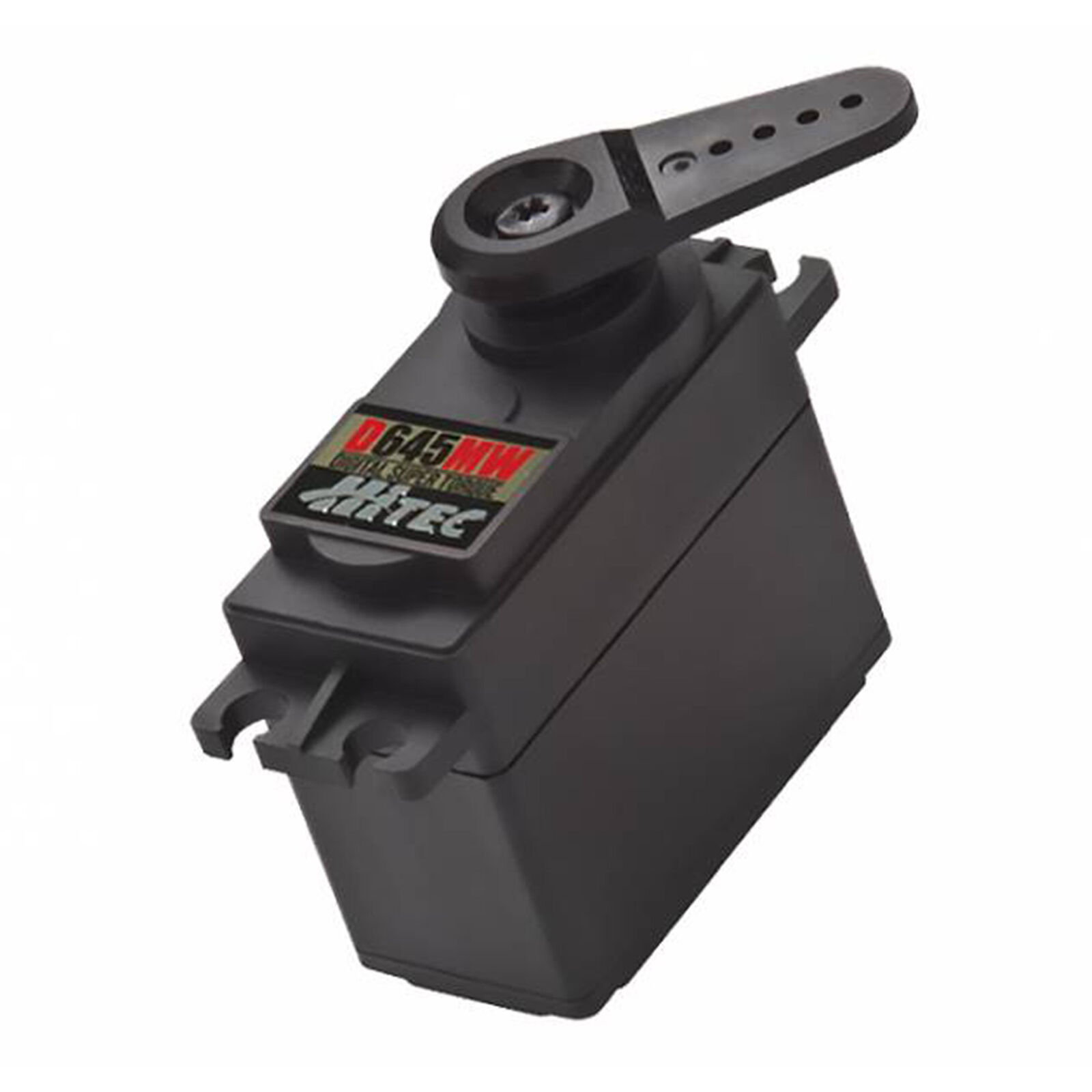

Hitec RCD Inc D645MW Standard Digital High Torque Metal Gear Servo-HRC36645

HRC36645
The metal D-645MW is part of Hitec's D-Series servo line. All Hitec D-Series servos have been designed using Hitec's brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement.
The metal D-645MW is part of Hitec's D-Series servo line. All Hitec D-Series servos have been designed using Hitec's brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement.
In stock
$49.99 USD
Shipping fees will be calculated at checkout.
Quantity
Secure Payment Options
PayPal
Pay Later
Apple Pay

Available payment methods may vary by location, device, and order details.

Free Shipping Over $99
30 Day Return
90 Day Warranty

Features

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline

D645MW Standard Digital High Torque Metal Gear Servo Product Specs

  • Application:12-15lb Sport, 3D performance & scale airplanes, 2M & up sailplanes, 600mm electric helis, 50-59 class gas helis, 1:10 scale on/off-road vehicles, 1M & scale sail boats, 1/10 scale power boats
  • Bearing:Dual Ball Bearing
  • Bushing :Or BearingBearing
  • Connector Type:Universal
  • Current Draw Idle:30mA
  • Current Draw Stall:2,650mA
  • Deadband:2µs
  • Gear Type:Metal
  • Input Voltage:4.8V ~ 6.0V ~ 7.4V
  • Maximum Servo Speed:0.28 sec/60 deg @ 4.8V, 0.20 sec/60 deg @ 6.0V, 0.17 sec/60 deg @ 7.4V
  • Maximum Servo Torque:115oz/in @ 4.8V, 158oz/in @ 6.0V, 180oz/in @ 7.4V

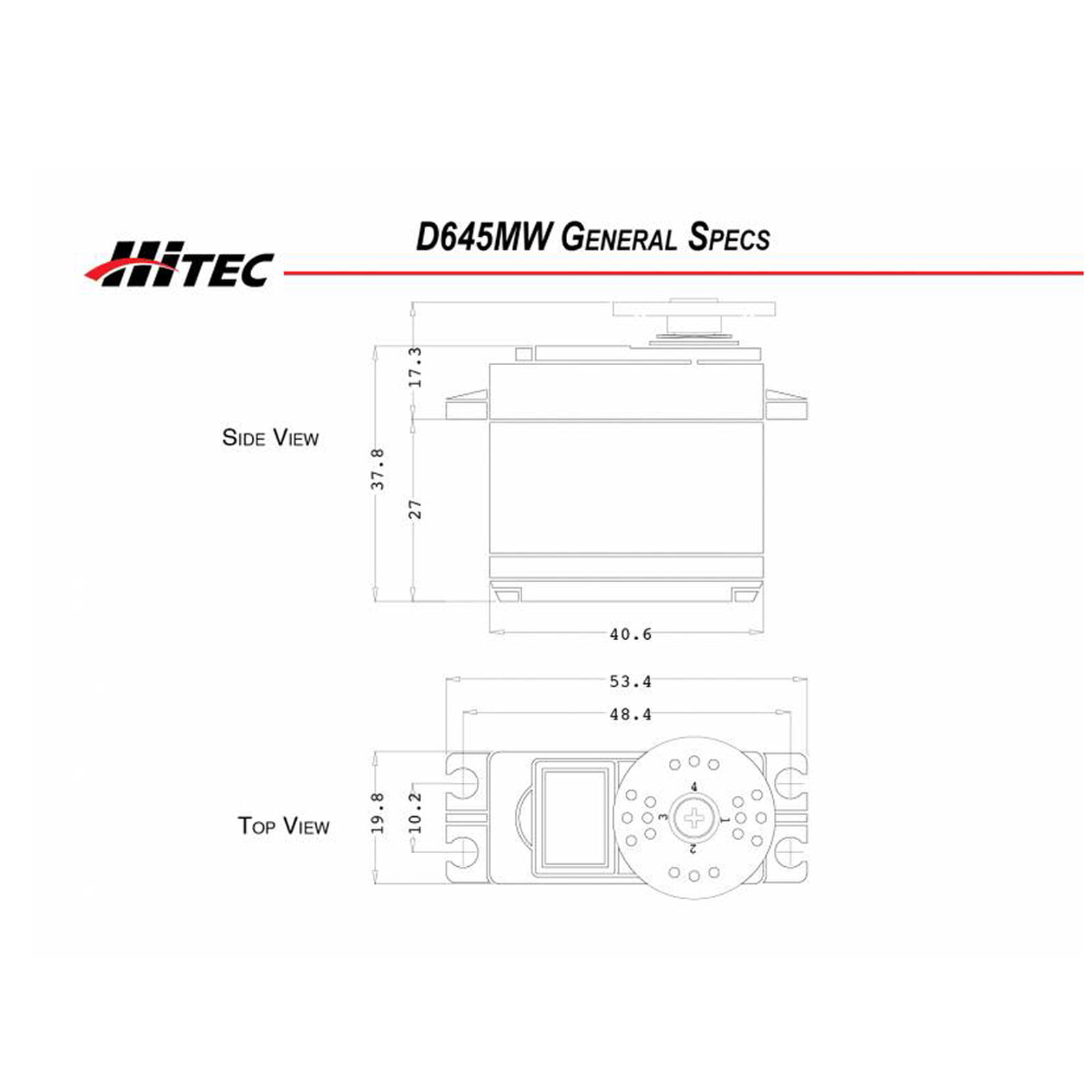

  • Product Height:1.48" (38 mm)
  • Product Length:1.59" (40 mm)
  • Product Weight:2.11 oz (57.0g)
  • Product Width:0.77" (20 mm)
  • Programmable:Yes
  • Servo Operating Voltage:4.8 - 7.4V (HV)
  • Servo Size Category:Standard
  • Servo Type:Digital
  • Spline Count:25 Teeth
  • Water-Resistant:No
  • Wire Gauge:22 AWG

D645MW Standard Digital High Torque Metal Gear Servo Video Overview

D645MW Standard Digital High Torque Metal Gear Servo Manual & Support

Instruction Manual

Hitec Analog vs Digital Servos Explained - English

Miscellaneous

D645MW Spec Sheet

Hitec 2-Year Warranty.pdf
