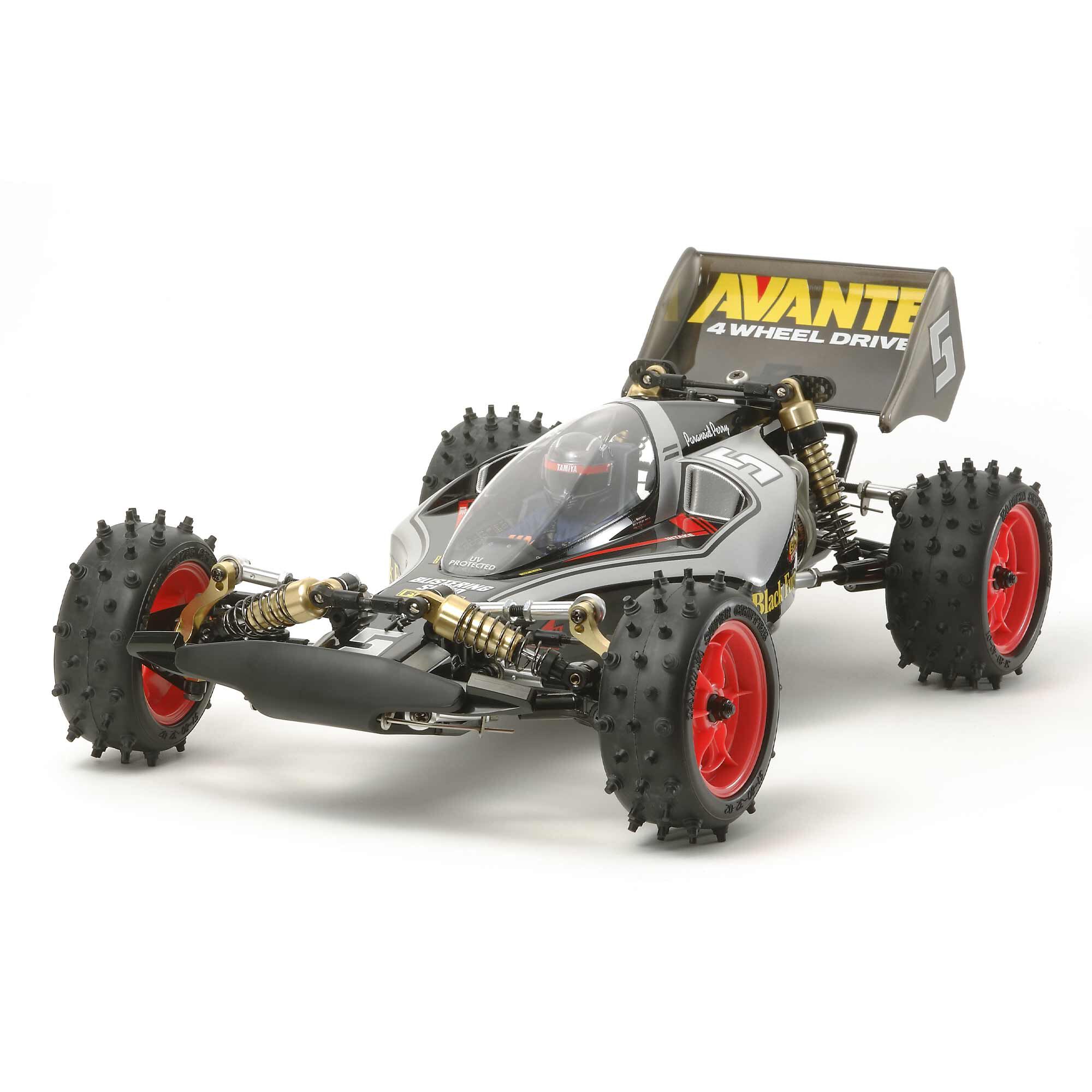

The machine features a unique shaft-driven 4WD system which was taken from Tamiya’s first 4WD R/C buggy, the Hotshot. It features a highly sophisticated design including an FRP double-deck chassis layout, longitudinal motor and battery positions, and a formula-type body with chassis fairing. It is equipped with innovative components such as a compact gearbox with 3 small planetary gears, a center diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps.
The modern specification of the car has a few updates, such as universal drive-shafts and machined aluminum uprights, which gives this version increased durability and performance over the original.
OVERVIEW_TEXT
Key Features
Carbon-fiber parts such as 2mm thickness upper and lower decks, plus rear damper stay offer superb strength.
Includes Avante (2011) Racing Steering Set, with a 2mm thickness carbon fiber steering plate and 850 ball bearings giving silky smooth motion.
Includes Avante (2011) Torque Splitter Set, with torque splitter and ball differentials for sure-footed traction.
Aluminum front uprights.
Spike tires are mounted on fluorescent pink wheels.
Comes with a 25-Turn motor featuring a special label.
4-wheel double wishbone suspension has metal shafts for great customizability.
Key Specs
Length
16.53" (420 mm)
Completion
Kit
Scale
1/10
Power Type
Electric
What's Included
Needed to Complete
Compatible receiver
Compatible LiPo charger
Feature Highlights

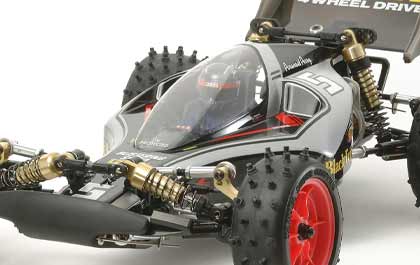

Pre-Painted Body
Kit includes Limited Edition pre-painted polycarbonate body inspired by its Mini 4WD cousin the Avante Black Special.

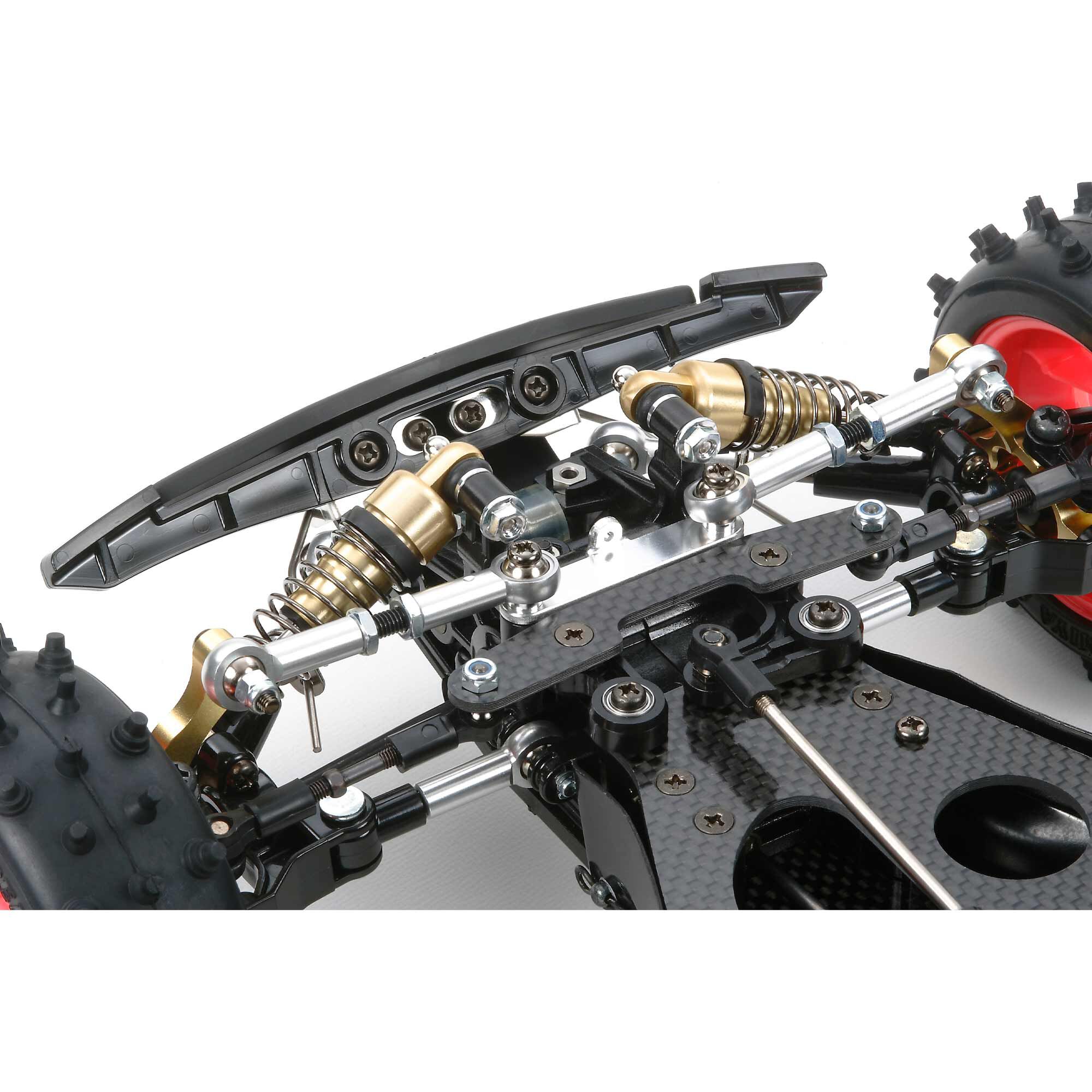

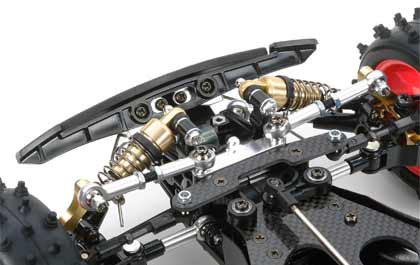

Unique Shock Design
The Avante features a unique shock geometry that resembles a laid back shock design, which allows great control of the vehicle while also maintaining a sleek silhouette.

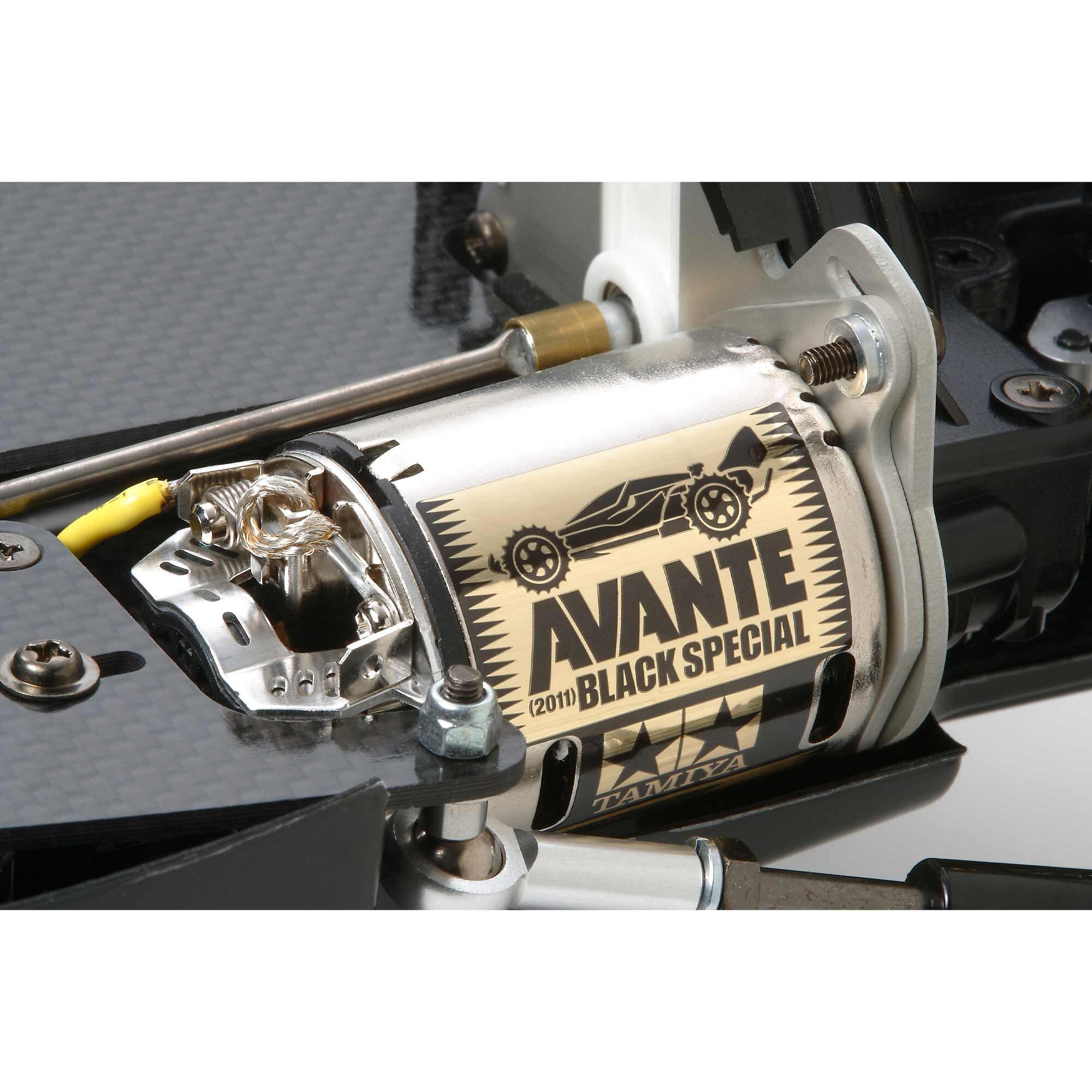

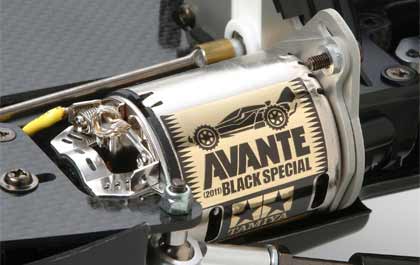

Limited Edition Motor
Kit includes a 25-turn motor featuring a special Avante label.

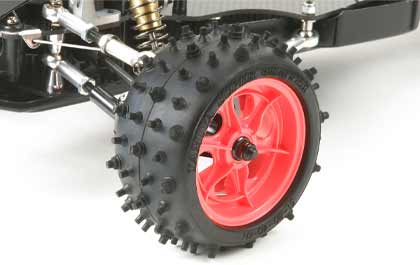

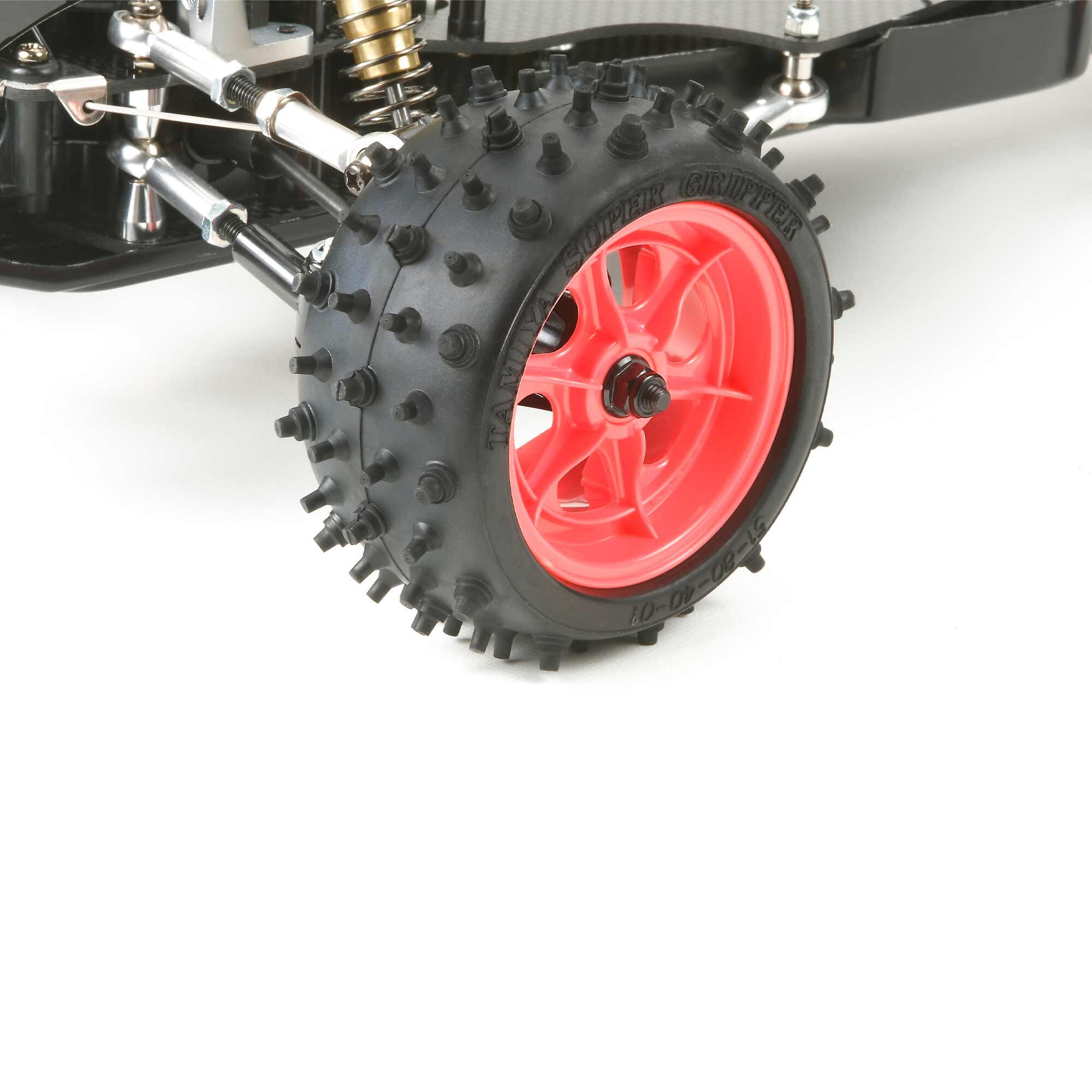

Wheels and Tires
Spike tires are mounted on fluorescent pink wheels.

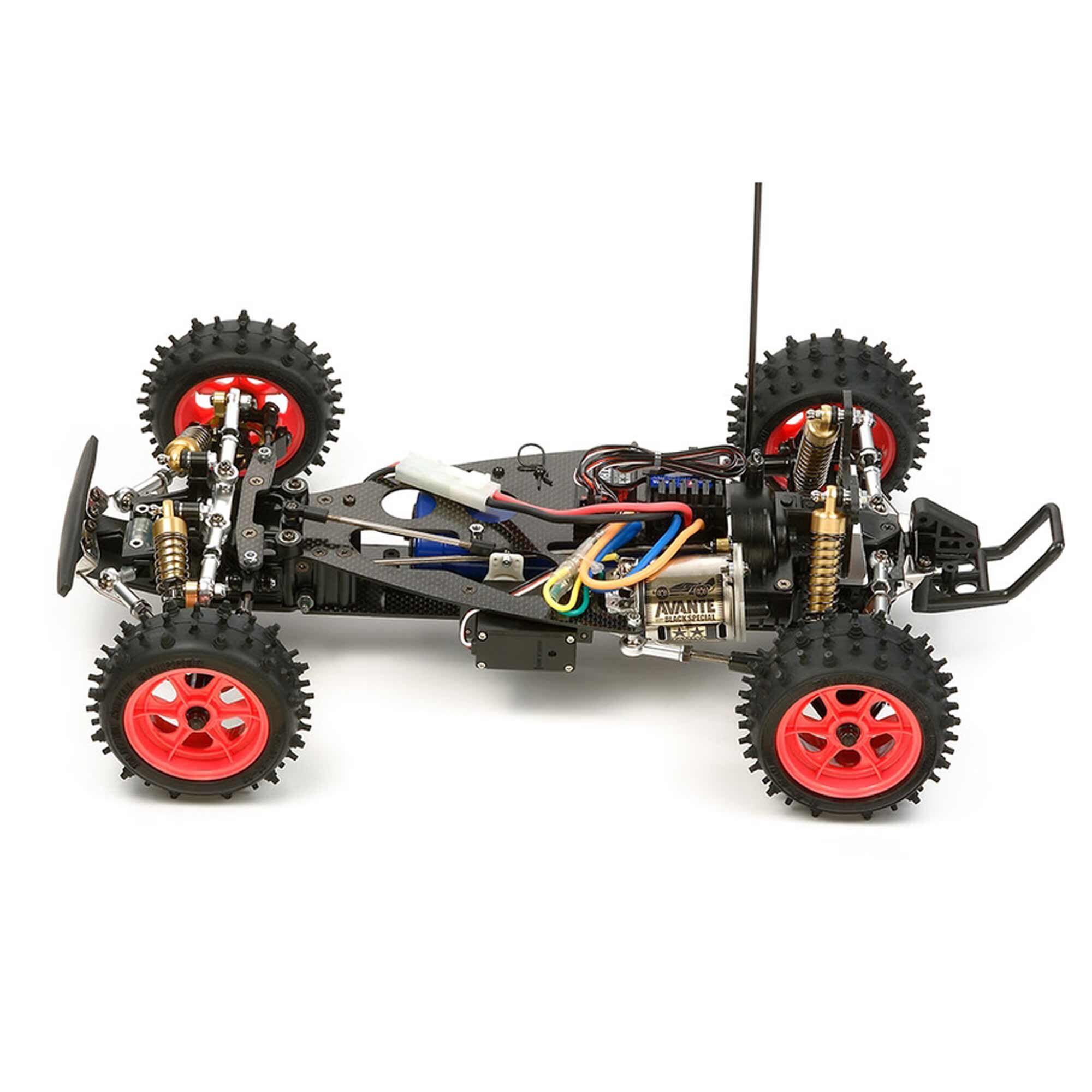

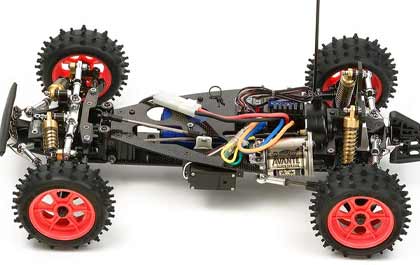

Sophisticated Chassis
Kit features a highly sophisticated design including an FRP double-deck chassis layout, longitudinal motor and battery positions, and a formula-type body with chassis fairing.
Specifications
Scale
1/10
Completion Level
Kit
Power Type
Electric
Battery
Sold Separately
Motor Size
Brushed 540 Type
Radio
Sold Separately
Receiver
Sold Separately
Vehicle Type
Buggy
Drivetrain
4WD
Drive Type
Forward/Brake/Reverse
Speed Control
Sold Separately
Servos
Sold Separately
Product Length
16.53" (420 mm)
Product Width
9.44" (240 mm)
Product Height
5.5" (140 mm)
Wheelbase
10.23" (260mm)
Charger
Sold Separately
Ball Bearings
Includes full ball bearings
Body
Polycarbonate
Brakes
Integral with ESC
Chassis
Carbon fiber plate
Differential
Gear
Manufacturer #
47390
Motor Type
Brushed
Shock Type
Oil-filled damper
Suspension
4-wheel fully independent double wishbone
Compatibility
This is a Kit vehicle. Transmitter, receiver, battery and charger may be sold separately and must be supplied by the driver when not included.
