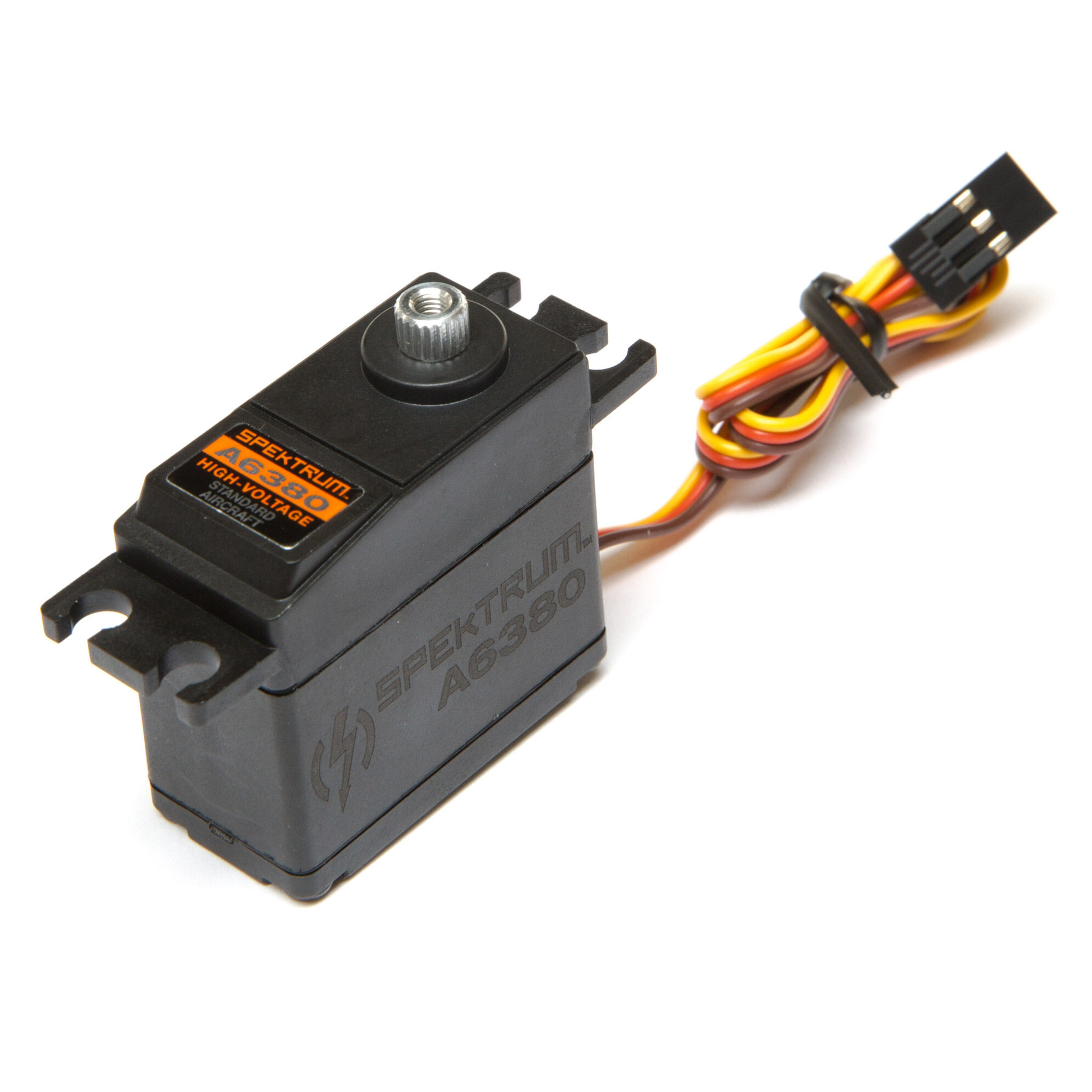

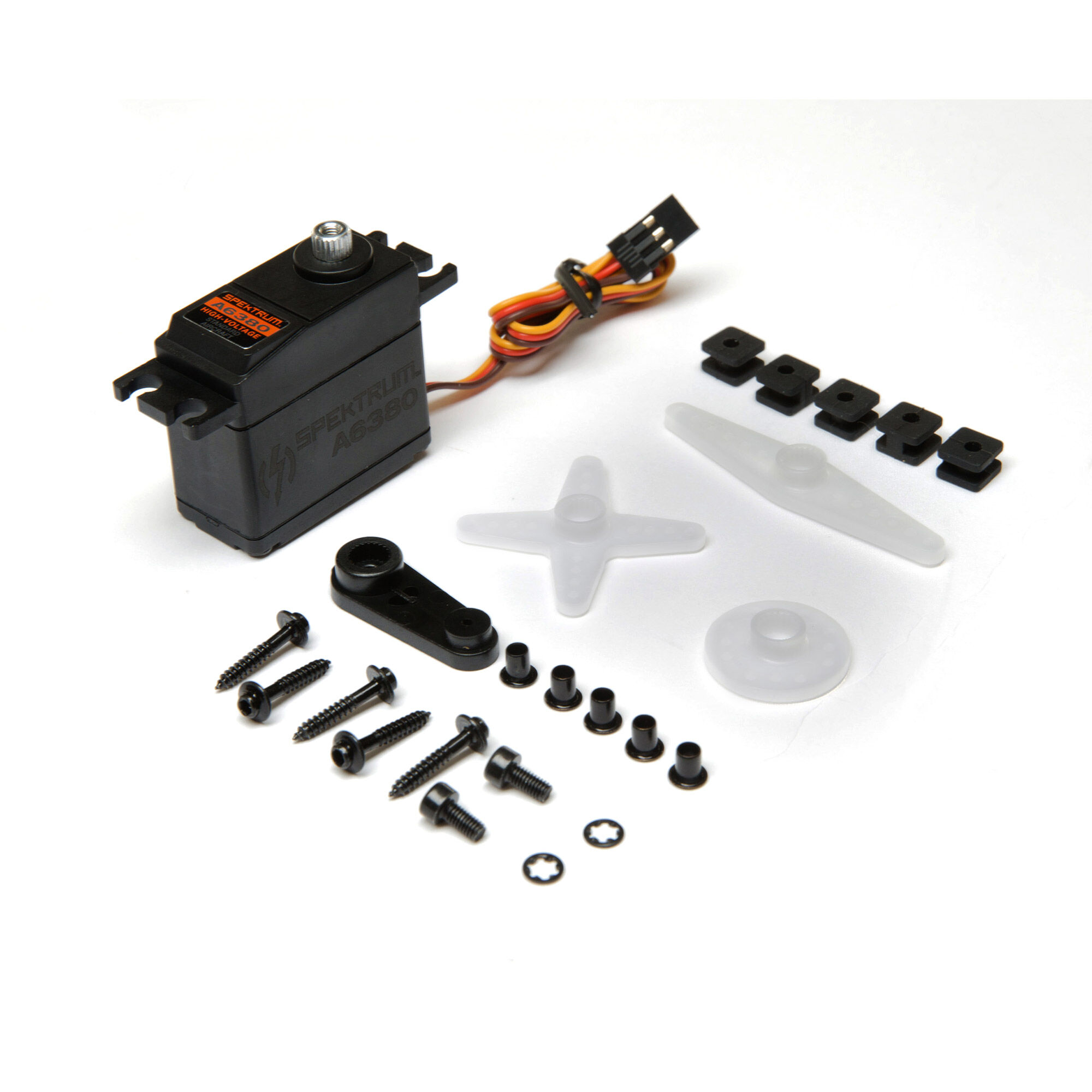

The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
| Product Weight | 1.5 oz (42.5 g) |
|---|---|
| Product Length | 1.52" (39 mm) |
| Product Width | 0.74" (19 mm) |
| Product Height | 1.47" (37 mm) |
| Connector Type | Universal |
| Application | Airplane |
| Bearing | Dual |
| Bushing Or Bearing | Bearing |
| Connector Wire Length | 11.8" (300 mm) |
| Deadband | 5µs |
| Gear Type | Metal |
| Input Voltage | 6.0V to 8.4V |
| Maximum Servo Speed | 0.17 sec/60 deg @ 6V; 0.13 sec/60 deg @ 8.4V |
| Maximum Servo Torque | 102 oz-in (7.3kg-cm) @ 6V; 160 oz-in (11.5kg-cm) @ 8.4V |
| Product Application | Air |
| Programmable | No |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Spline Count | 23 - Tooth |
| Water-Resistant | No |
| Wire Gauge | 24 AWG |
This replacement part is used in the following complete models.
Valiant 20cc EP PNP with Spektrum AR8360T+ Receiver ComboHAN15075CB
P-47D Thunderbolt 20cc ARF with E-flite Electric Retract SetHAN2990CR
Valiant 10cc ARF, 69"HAN5080
J-3 Cub 10cc EP PNP, 82.5" with Receiver and Battery ComboHAN5175CEP
Tucano 20cc ARF, 68"PMMA0158loading
