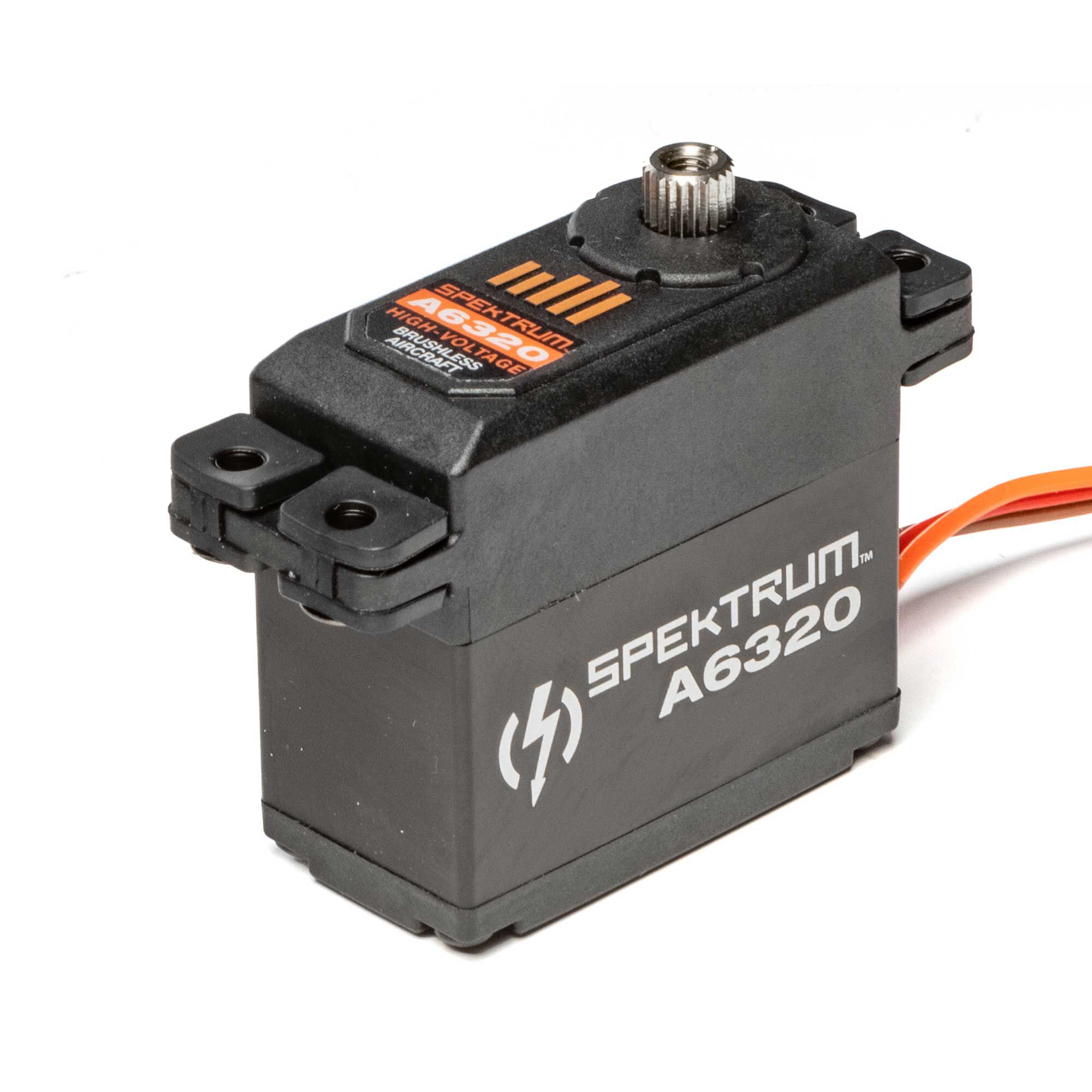

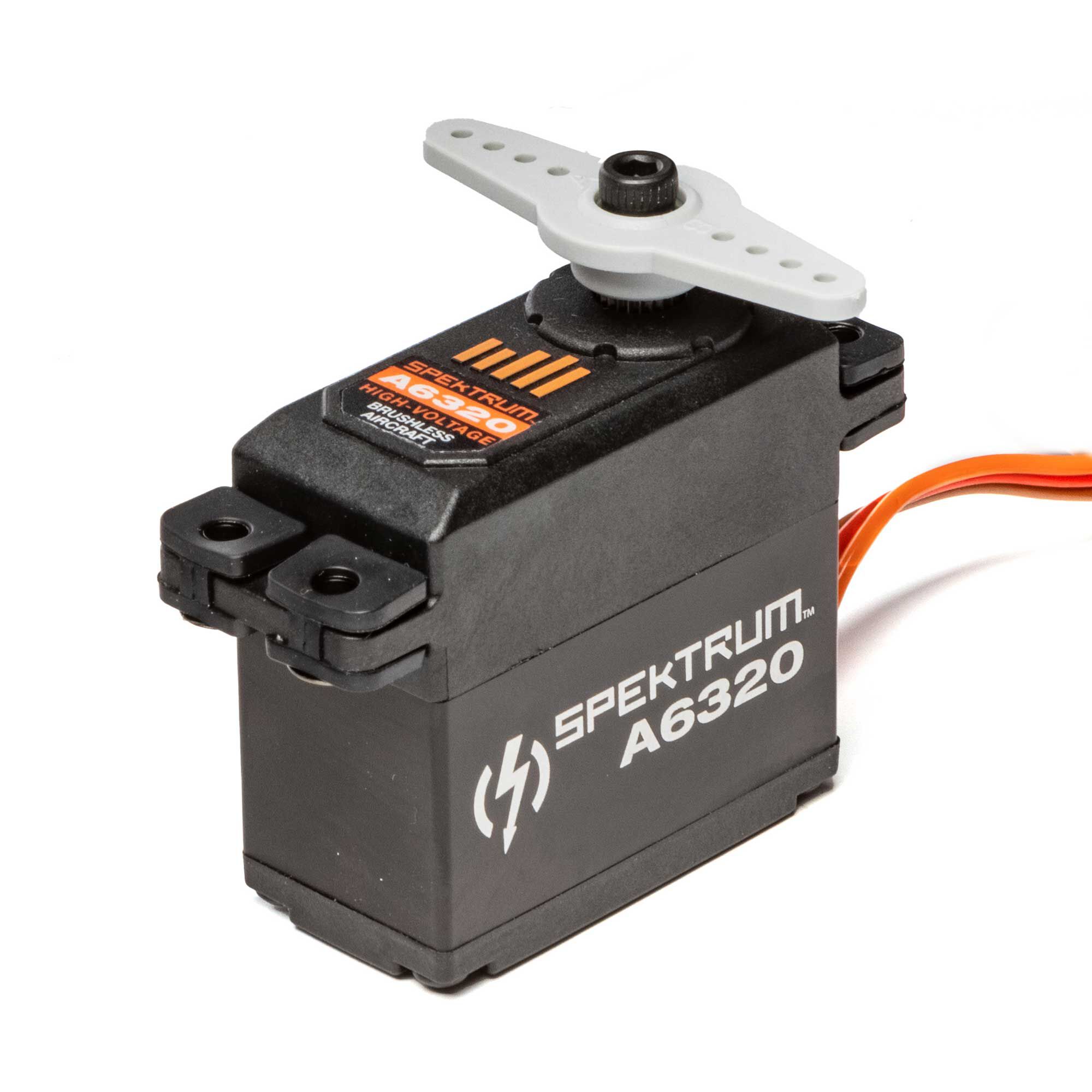

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.
The Spektrum A6320 uses this solid foundation to achieve an outstanding balance of power, speed and value, plus the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for applications such as 30-50cc size 3D aerobatics, giant-scale or high-speed jets.
*Torque and Transit @ 8.4V
| Product Weight | 2.2 oz (62 g) |
|---|---|

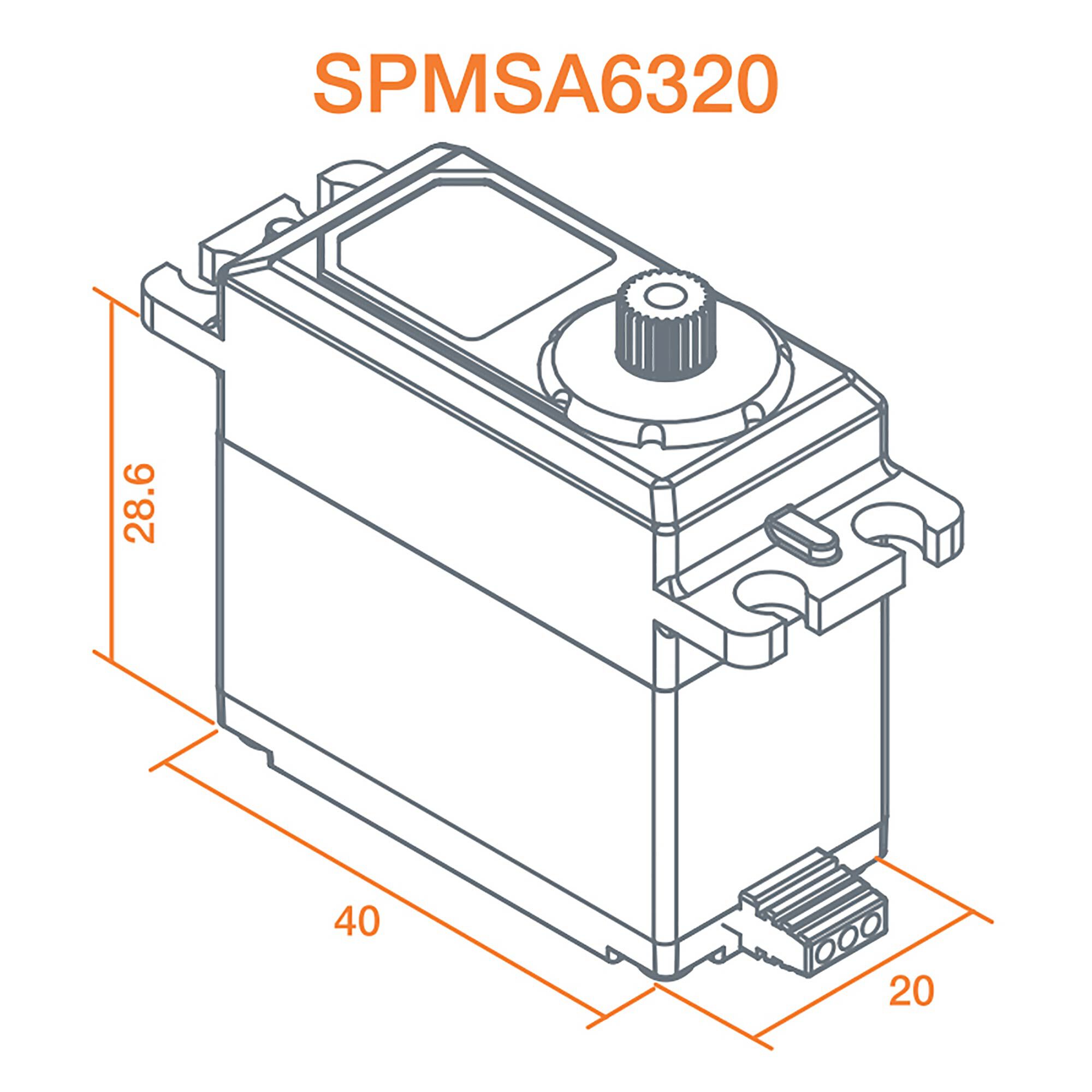

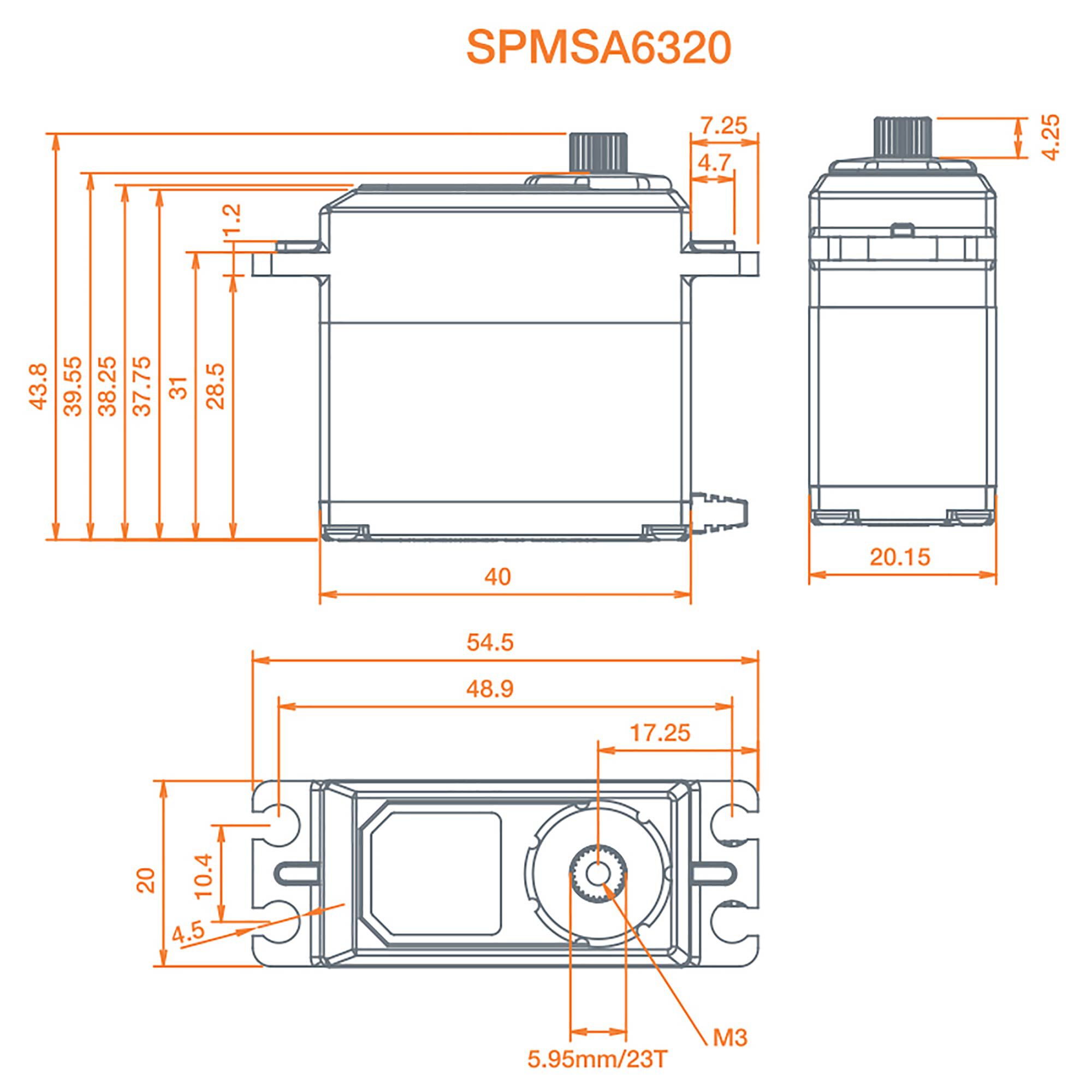

| Product Length | 1.57" (40 mm) |
| Product Width | 0.79" (20 mm) |
| Product Height | 1.49" (38 mm) |
| Connector Type | Universal |
| Application | Airplane |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Deadband | 3µs |
| Gear Type | Metal |
| Maximum Servo Speed | 0.11 sec/60 deg @ 6.0V; 0.10 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V |
| Maximum Servo Torque | 150.0 oz-in (10.8 kg-cm) @ 6.0V; 250.2 oz-in (18.0 kg-cm) @ 7.4V; 270.1 oz-in (19.5 kg-cm) @ 8.4V |
| Motor Type | Brushless |
| Product Application | Air |
| Programmable | No |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Spline Count | 23 - Tooth |
| Water-Resistant | No |
| Wire Gauge | 22 AWG |
This replacement part is used in the following complete models.
6 Channel 2.4 GHz FMS Air ReceiverFMMRX02
Hawk/T-45 140-160N ARF with Retract Set, KingTech K-160G4+, Spektrum AR20410T Receiver, Synapse AS3X+ Module, and Spektrum ServosHAN13750CRSSK160
Viper 100N Turbine Jet ARFHAN-3625ARF
Viper 100N Turbine Jet ARF with Retract SetHAN-3625CR
Viper 100N Turbine Jet ARF with Retract Set and KingTech K-102G4+HAN-3625CRK102
Viper 100N Turbine Jet ARF with Retract Set, KingTech K-102G4+, 8 Spektrum Servos, Spektrum AR20410T Powersafe Receiver, and Synapse AS3X+ ModuleHAN-3625CRS
Valiant 10cc ARF, 69"HAN5080
P-51D Mustang 50-60cc ARFPMMA0205
Extra NG 35cc ARF, 74"PMMA0243
Laser 260 35cc ARF, 74"PMMA0245
1/4 Sbach 342 1.20 GP EP ARF 65.5"PMMA0310
Edge 540 .46-.55 GP EP ARF 55.5"PMMA0360
1:5 3/4 Waco F5C GP EP Gas ARF 63"PMMA0390
1/7 P-51 Mustang .46-.55 GP EP ARF 55.5"PMMA0400
Sonic Mk2 High-Wing .25-.32 GP EP ARFPMMA1125
Sonic Mk2 Low-Wing .25-.32 GP EP ARF 52.7PMMA1230
1/6 Dolphin Mk2 .46-.55 GP EP ARF 63"PMMA1250
Tiger 3 Sport .46-.55 GP EP ARF 63"PMMA1356
Stinson .46-.55 GP EP ARF 63.3"PMMA1357
1/8 Spitfire Mk2 .46-.55 GP EP ARF 55"PMMA1359
Strega Mk2 .46-.55 GP EP ARF 55.5"PMMA1360
1:6 1/2 Cessna Skylane 182 .46-.55 EP ARFPMMA1547
1/6 Decathlon Mk2 .46-.55 GP EP ARF 65.7"PMMA1560
1/5 Ryan STA GP EP Gas ARF 70.8"PMMA1600
F4U Corsair .46-.55 GP EP ARF 58.5"PMMA1605
Spacewalker .46-.55 GP EP ARF 63"PMMA1700
Piper J3 Cub .46-.55 GP EP ARF 84.6"PMMA1705
Focke-Wulf FW 190 .46-.55 GP EP ARFPMMA1840
ZERO A6M EP/GP .46-.55 ARF 55"PMMA1865
Aurora Sport Aerobat EP/GP .46-.55 ARF 59.1"PMMA1870
DX6e 6-Channel System with AR620 ReceiverSPM6655EUloading
