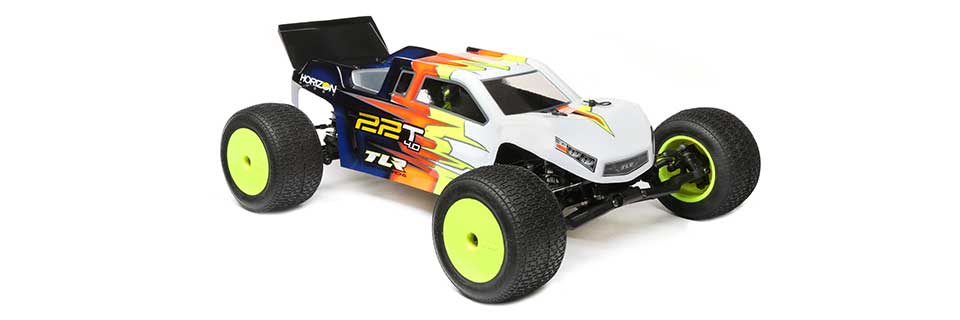

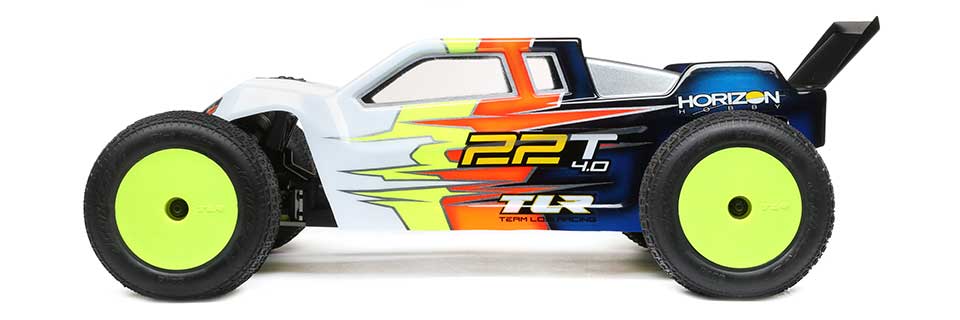

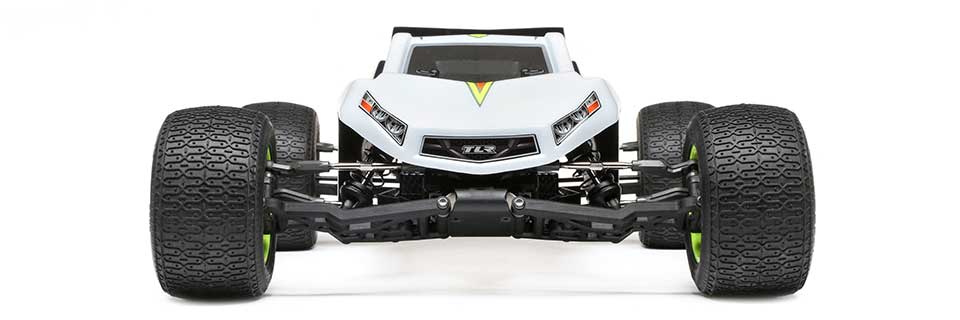

The TLR® 22T 4.0 Stadium Truck kit takes the competition proven on-track performance of the 22T 3.0 and gives it an advanced, mid-motor laydown transmission treatment. With the wider track width and the relatively shorter chassis of the truck class, TLR engineers and the race team demanded higher development of the 22™ platform. The result is a next-level platform expected to dominate the ROAR National Championships.
The laydown transmission moves the motor forward to a central motor location. This helps the 22T 4.0 drive much flatter, more consistent and corners quicker on higher grip surfaces. Still fitting a brick pack, saddle pack, or a shorty pack mounted across the chassis, drivers can maximize performance with best weight bias for all surfaces. In short, we've taken the race winning 22T 3.0 and added the "laydown" setup to maximize the performance.
| Scale | 1/10 |
|---|---|
| Completion Level | Kit |
| Power Type | Electric |
| Battery | Sold Separately |
| Motor Size | 540 |
| Receiver | Sold Separately |
| Vehicle Type | Stadium Truck |
| Drivetrain | 2WD |
| Speed Control | Sold Separately |
| Servos | Sold Separately |
| Product Length | 13.9 in (354mm) without Body/Wheels |
| Product Width | 12.7 in (322mm) |
| Product Height | 5.65 in (143mm) |
| Wheelbase | 11.4 in (290.5mm) |
| Charger | Sold Separately |
| Rear Track | 12.9 in (328mm) |
| Ball Bearings | Full Rubber Sealed |
| Spur Gear | 82T |
| Wheel Type | 22T Dish |
| Brakes | Controlled via Motor/ESC |
| Approximate Assembly Time | 3-5 Hours |
| Differential | Ball Differential |
| Front Track | 12.9 in (328mm) |
| Internal Gear Ratio | 2.43:1 |
| Motor Type | Brushless |
| Gear Pitch | 0.06 Module |
| Suspension | Lower A-Arm, Upper Adjustable Link |
| Chassis | 2.5mm 7075-T6 Aluminum |
| Shock Type | 12mm Big Bore, Oil Filled |
| Wheel Width | 1.90 in (48mm) |
| Body | 22T 4.0, Clear Polycarbonate |
