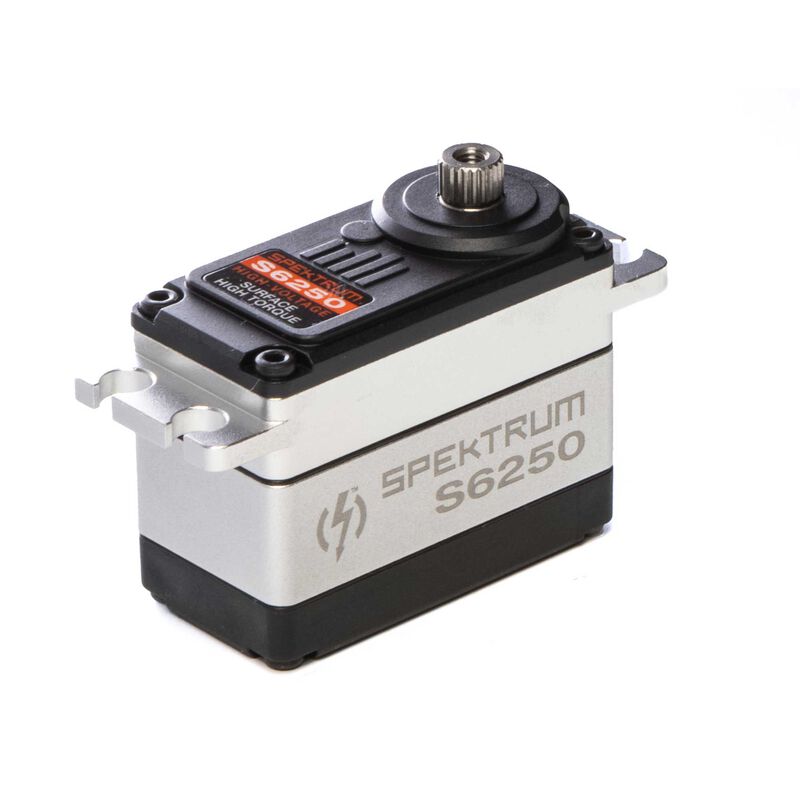

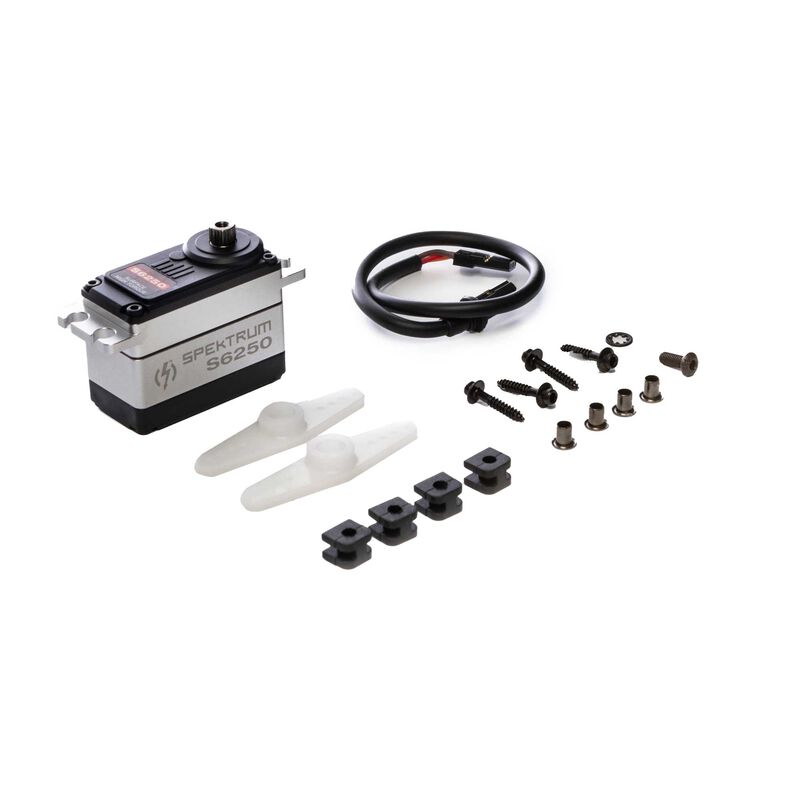

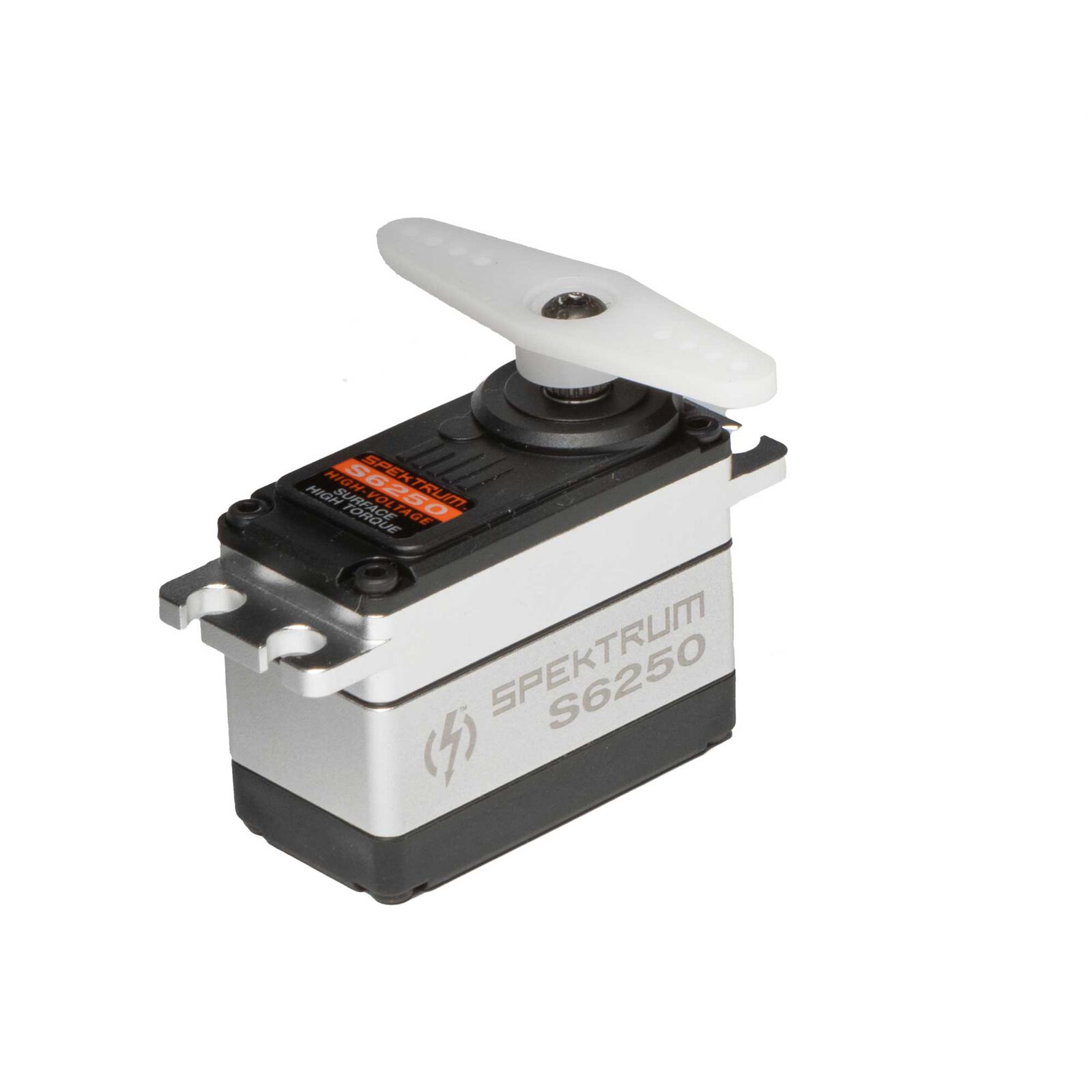

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
| Product Weight | 2.3 oz (65.2g) |
|---|---|

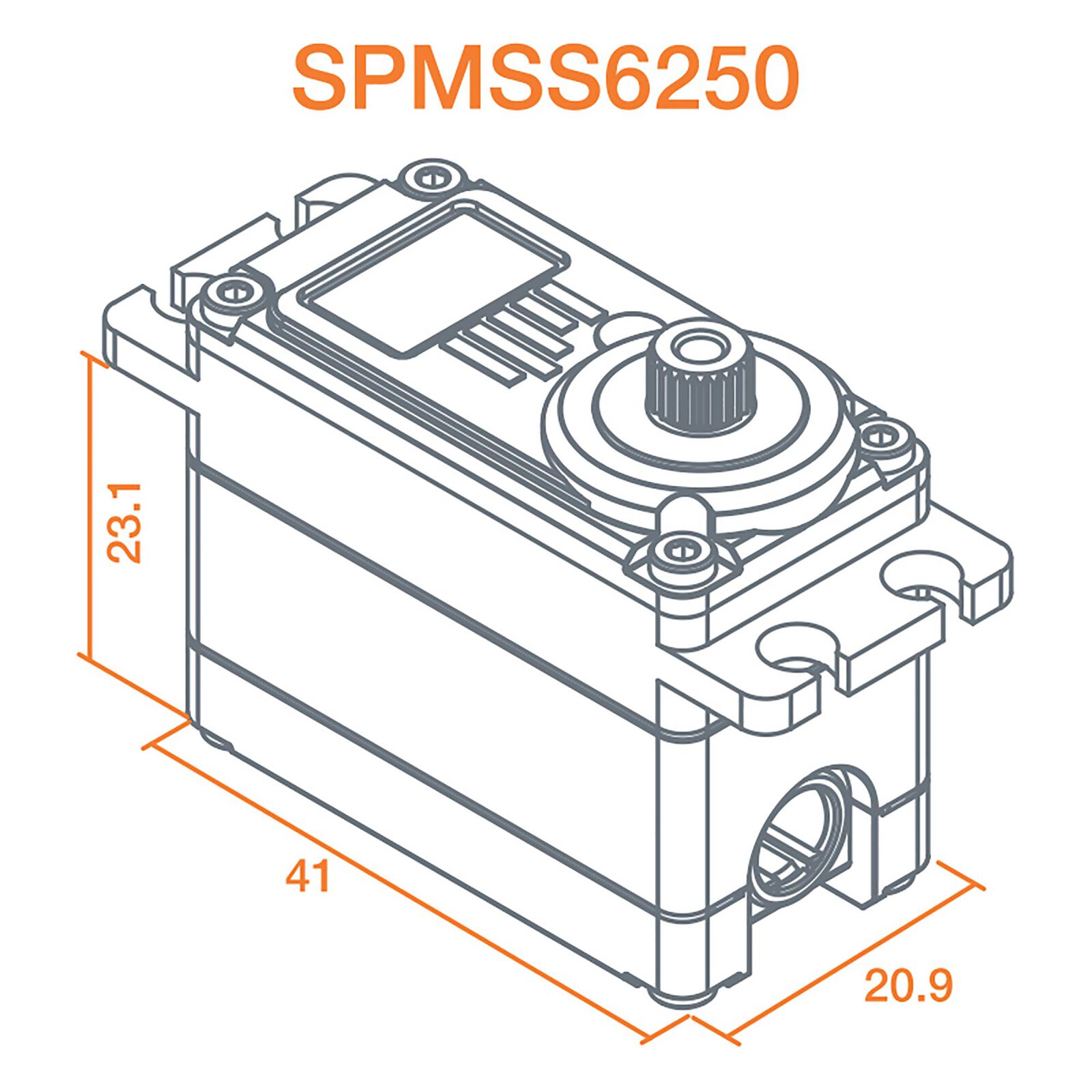

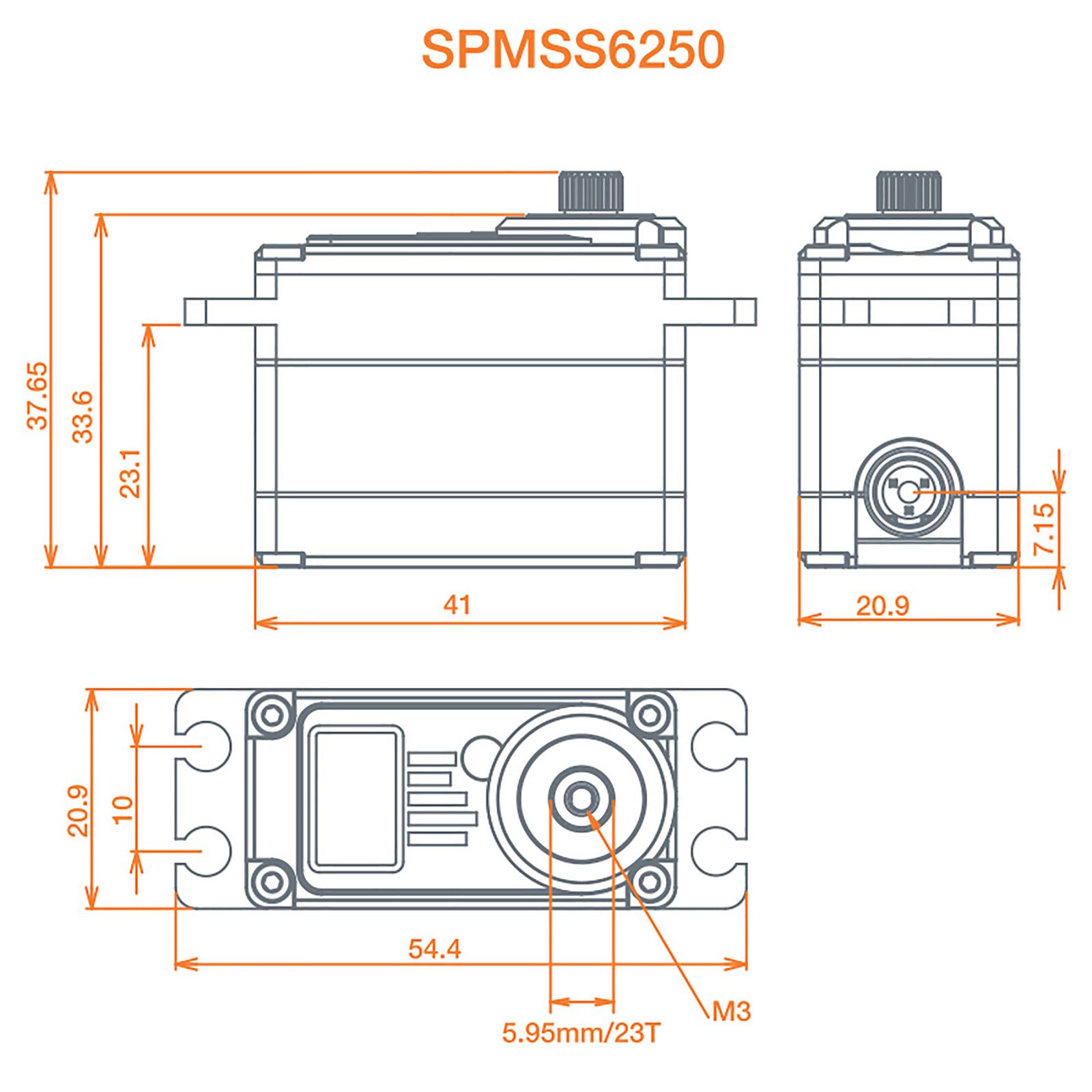

| Product Length | 1.61 in (41mm) |
| Product Width | 0.82 in (20.8mm) |
| Product Height | 1.25 in (31.8mm) |
| Application | Surface |
| Bearing | Dual |
| Bushing Or Bearing | Bearing |
| Connector Wire Length | 7.87 in (200mm) |
| Current Draw Idle | 9.8 mA @ 6.0V |
| Current Draw Stall | 4900mA @ 6.0V |
| Gear Type | Metal |
| Material | Metal / Plastic |
| Maximum Servo Torque | 271 oz-in (19.5kg-cm) @ 6V; 339 oz-in (24.4kg-cm) @ 7.4V; 382 oz-in (27.5kg-cm) @ 8.4V |
| Part Type | Electronics |
| Product Application | Surface |
| Programmable | No |
| Rotation Range | 120 deg |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Spline Count | 23 Teeth |
| Wire Gauge | 22 AWG |
This replacement part is used in the following complete models.
1/10 Electric Pro Stock 2WD Dragster Kit, 11"RJS2001
1/10 Electric Funny Car 2WD Dragster Kit, 13"RJS2002
1/10 Electric Dragster 2WD Kit 24"RJS2003
1/10 Electric Top Fuel T/F 2WD Dragster Kit, 30"RJS2006
1/10 Electric R/C Legends Spec 2WD Sedan KitRJS2011
1/10 Electric LTO Sport Oval 2WD Racer KitRJS2021
1/10 Electric Outlaw 2WD Sprint Car KitRJS2030
1/10 Nitro Powered Pro Mod 2WD Dragster KitRJS2104
1/10 Grasshopper 2WD Off-Road Buggy RTRTAM46704
1/12 Midnight Pumpkin CW-01 2WD Monster Truck RTRTAM46705
1/24 Lunch Box Mini SW-01 4x4 Monster Truck KitTAM46706Gold
1/10 TT-02R 4x4 Chassis KitTAM47326
1/10 Saint Dragon 4x4 Off-Road Buggy Kit(2021)TAM47459A
1/24 MudMad Assembly Kit SW-01TAM57412
1/10 Wild Willy 2000 2WD Buggy KitTAM58242
1/10 Grasshopper 2WD Buggy KitTAM58346
1/12 Midnight Pumpkin Metallic 2WD Monster Truck KitTAM58365
1/10 Hotshot 4WD Brushed Off-Road Buggy KitTAM58391
1/10 Blitzer Beetle 2WD Buggy Kit (2011)TAM58502
1/12 Lunch Box Monster Truck Kit, Black EditionTAM58546
1/10 NISMO R34 GT-R Z-Tune TT-02D 4WD Brushed Drift Special KitTAM58605
1/10 Subaru BRZ R&D Sport Rd.2 TT-02 4x4 Touring Kit (2014)TAM58607A
1/10 Mazda MX-5 M-05 2WD On-Road Touring KitTAM58624A
1/10 Motul Autech GT-R 4WD On-Road TT-02 KitTAM58625
1/10 Raikiri GT 4WD On-Road TT-02 KitTAM58626
1/10 Mercedes 190E 2.5-16 Evo.II TT-01E 4x4 On-Road Touring KitTAM58638A
1/14 Team Reinert Racing MAN TGS 4WD TT-01E KitTAM58642
1/18 Konghead G6-01 6x6 Monster Truck KitTAM58646
1/10 F104 PRO II 2WD On-Road KitTAM58652
1/10 Toyota Gazoo Racing WRT/Yaris WRC TT-02 4x4 On-Road Touring KitTAM58659A
1/18 Dynahead G6-01TR 6WD Brushed Semi Tractor KitTAM58660
1/14 Buggyra Fat Fox 4WD TT-01E KitTAM58661
1/10 Ford Mustang GT4 4WD TT-02 KitTAM58664
1/10 M-08 2WD Concept Chassis KitTAM58669
1/24 Volvo A60Y Hauler G6-01 6x6 Brushed Semi Tractor KitTAM58676
1/10 Volkswagen Karmann Ghia M-06 2WD On-Road Touring KitTAM58677
1/10 Formula E Gen2 TC-01 4x4 Brushed Kit, Championship LiveryTAM58681
1/14 Tankpool24 MP4 TT-01ETAM58683
1/10 VQS 4x4 Buggy Kit (2020)TAM58686A
1/10 2020 Ford GT Mk II TT-02 On-Road Touring KitTAM58689
1/10 TA08 PRO 4x4 Chassis KitTAM58693
1/10 Lotus Europa Special M-06 2WD On-Road Touring KitTAM58698A
1/10 Ford Bronco 2021 CC-02 4x4 Crawler KitTAM58705A
1/10 Thunder Shot 4x4 Buggy Kit (2022)TAM58706A
1/10 Alpine A110 Jagermeister 1973 M-06 2WD On-Road KitTAM58708A
1/10 BBX BB-01 2WD Buggy KitTAM58719loading
