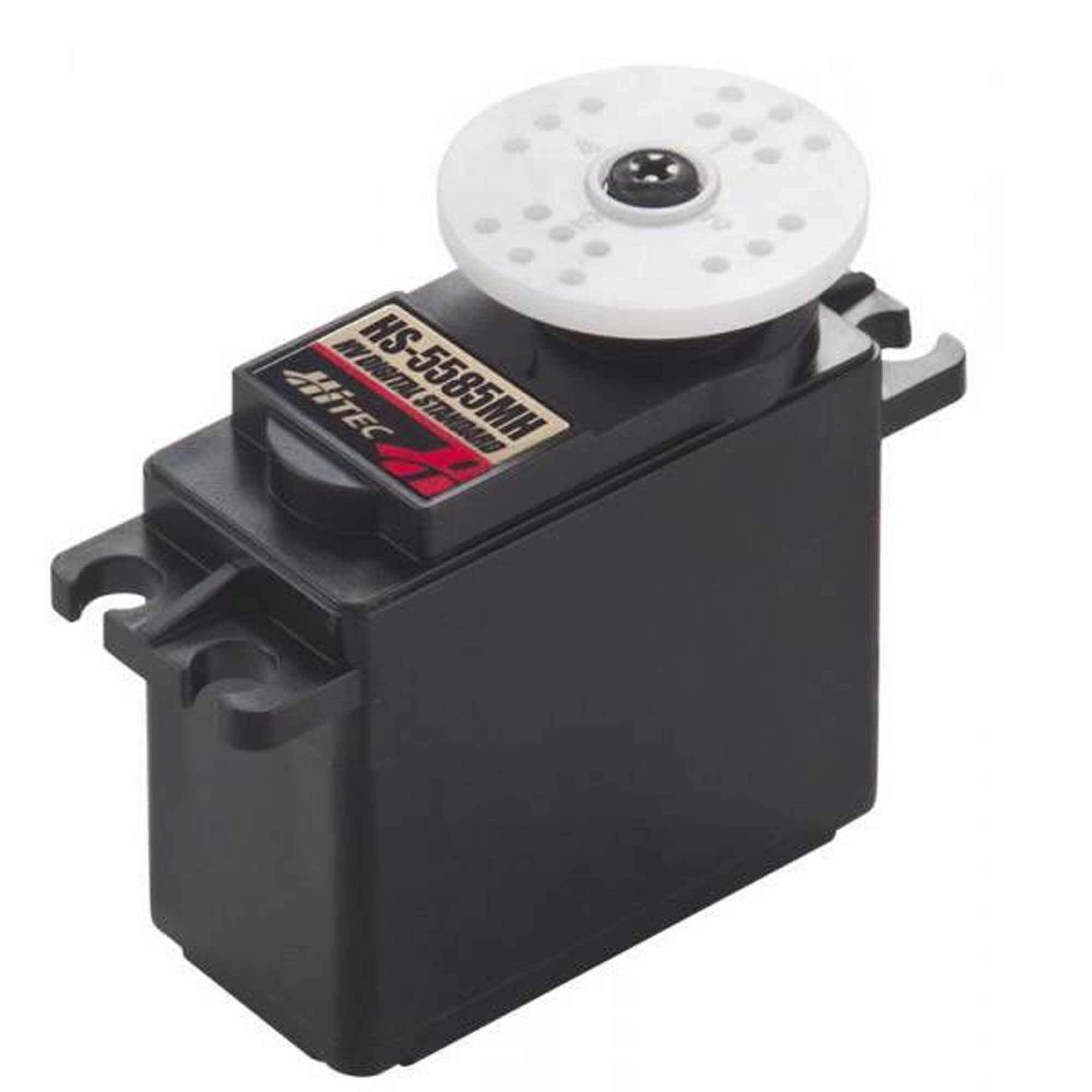

Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation. The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.
| Product Weight | 2.10oz (60g) |
|---|---|

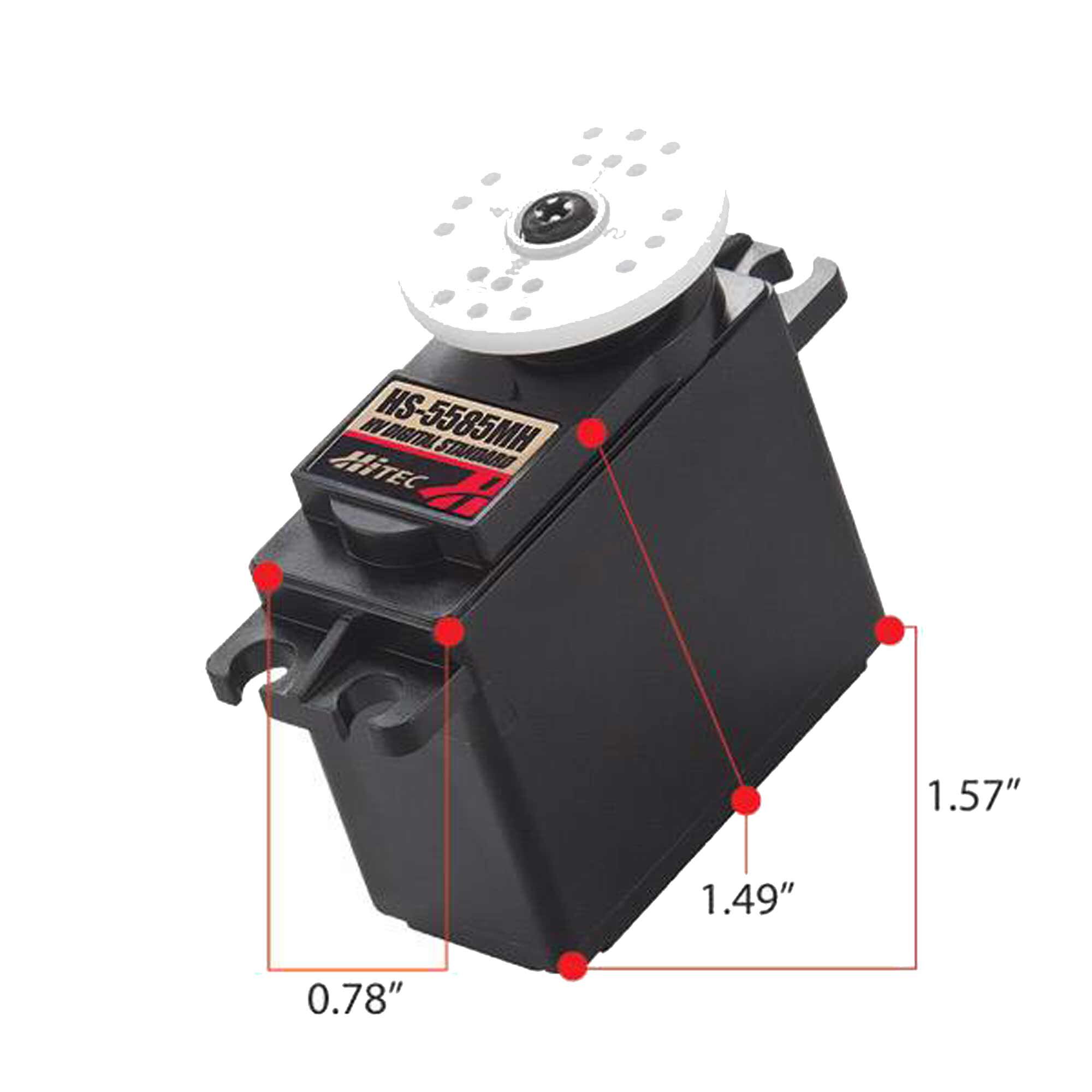

| Product Length | 1.57" (40 mm) |
| Product Width | 0.78" (20 mm) |
| Product Height | 1.49" (38 mm) |
| Connector Type | Universal |
| Application | Sport Aircraft, Helicopters, Cars, Boats |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Current Draw Idle | 4 mA |
| Current Draw Stall | 2,700 mA |
| Deadband | 2µs |
| Gear Type | Metal |
| Input Voltage | 6.0V ~ 7.4V |
| Maximum Servo Speed | 0.17 sec/60 deg @ 6.0V, 0.14 sec/60 deg @ 7.4V |

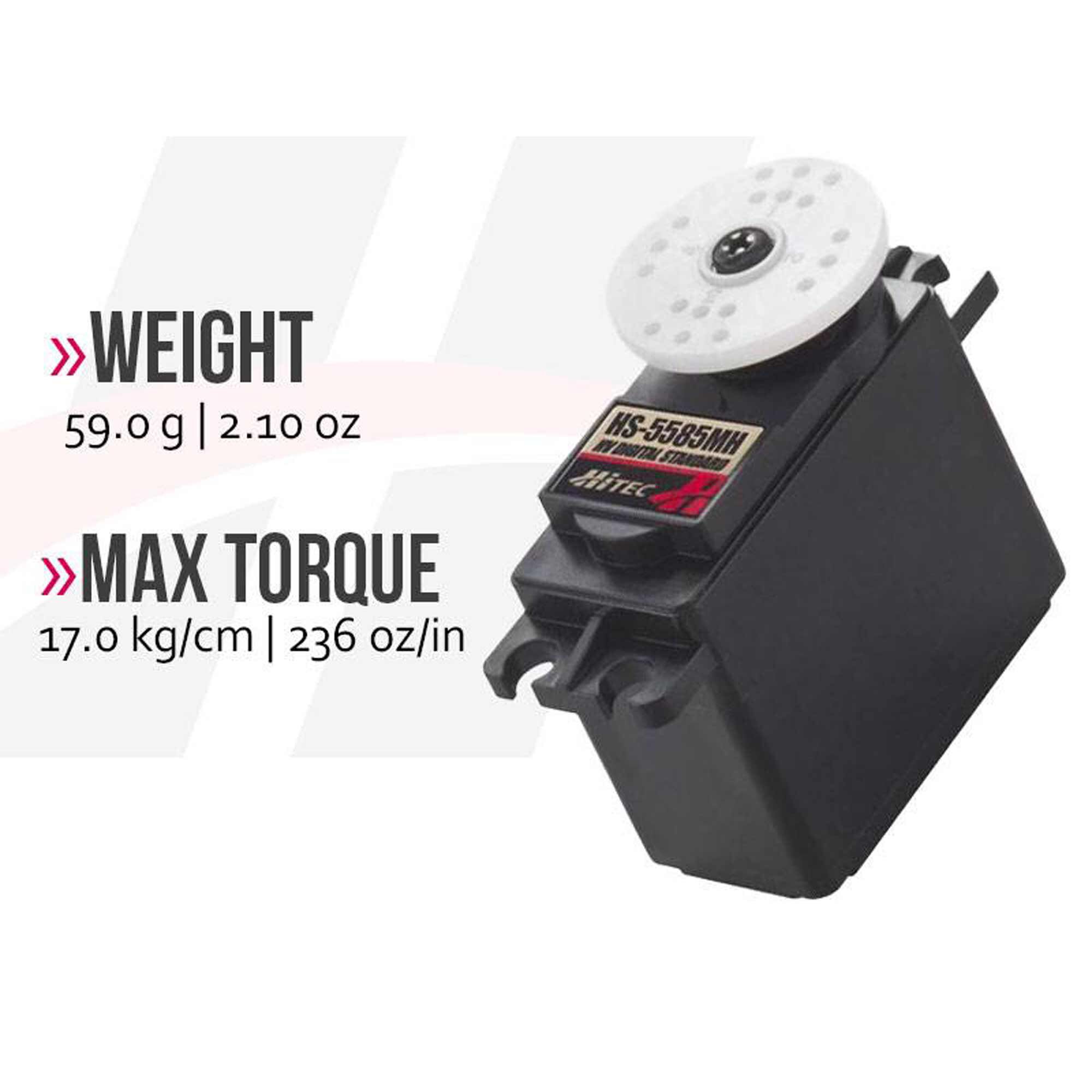

| Maximum Servo Torque | 194oz/in @ 6.0V, 236oz/in @ 7.4V |
| Motor Type | Brushed |
| Programmable | Yes |
| Servo Operating Voltage | 6.0 - 7.4V (HV) |
| Servo Size Category | Standard |
| Servo Type | Digital |
| Spline Count | 24 - Tooth |
| Water-Resistant | No |
| Wire Gauge | 25 AWG |
This replacement part is used in the following complete models.
Valiant 10cc ARF, 69"HAN5080loading
