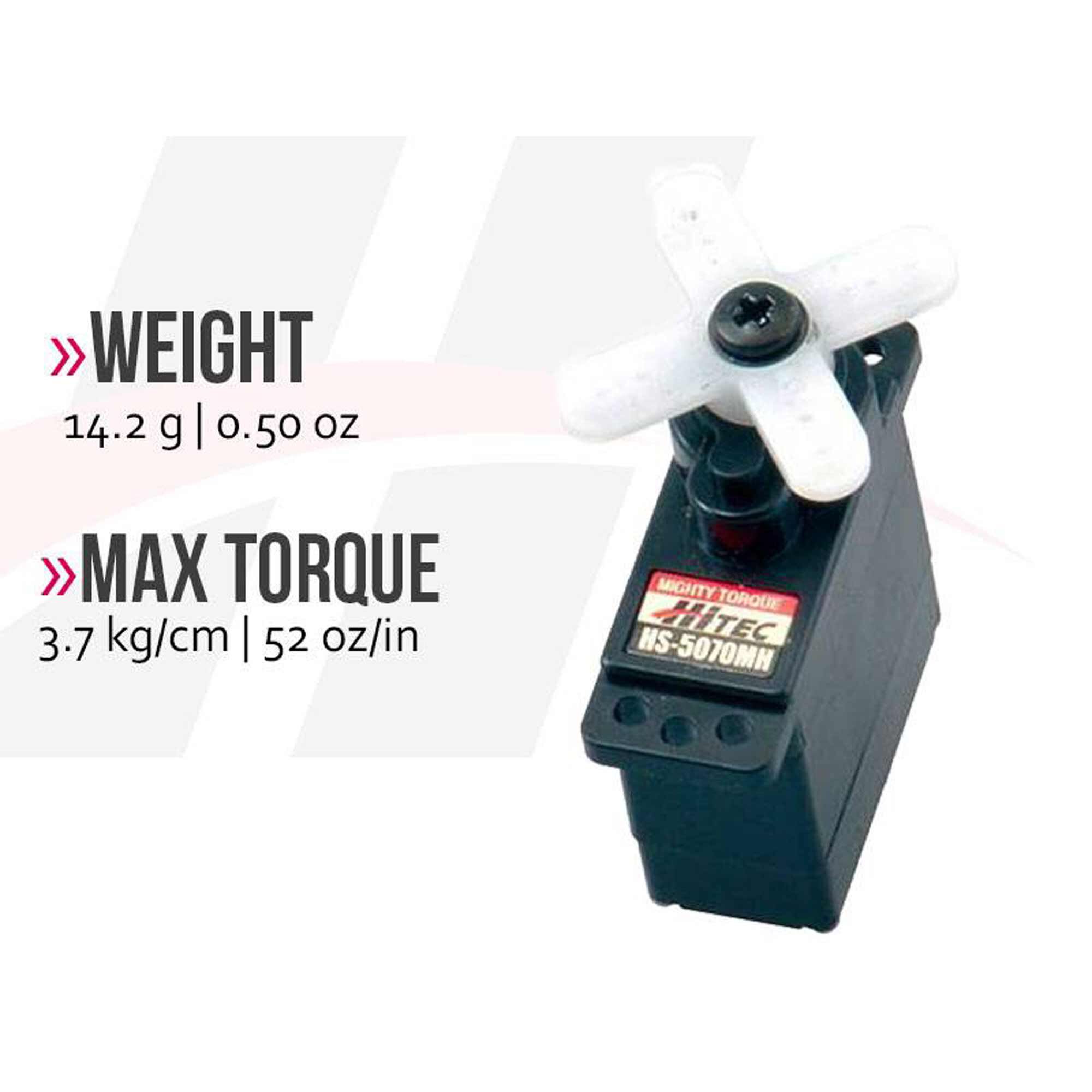

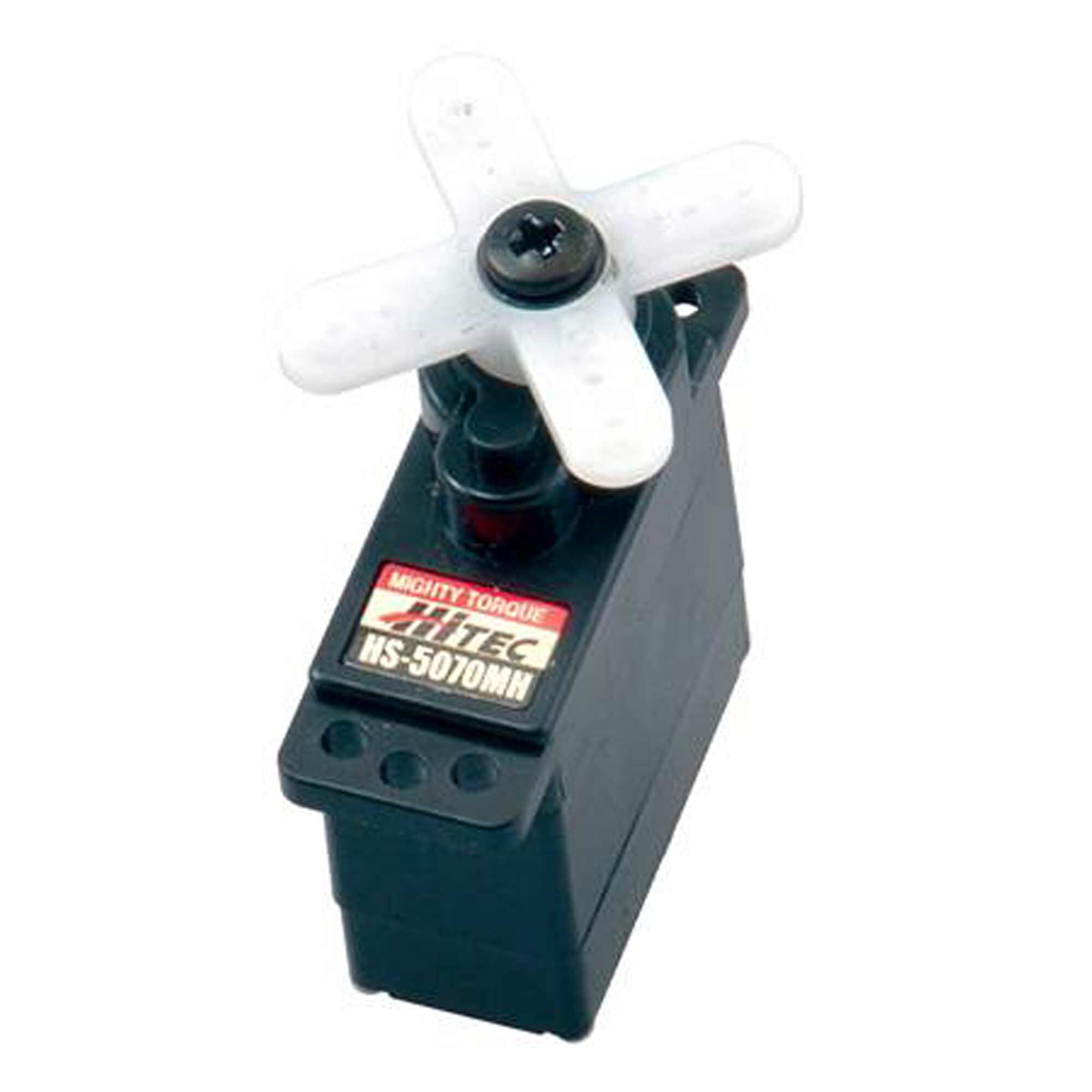

Hitec's new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts.
Key Specs
Product Weight
0.50oz (14.2g)
Product Length
0.92" (23 mm)
Product Width
0.45" (11 mm)
Product Height
1.14" (29 mm)
Connector Type
Universal
Application
65oz or less parkflyers, 36-41oz sport planes, 2M/DLG sailplanes, 500-750mm electric helis, 30-39 class gas helis, 1:16 scale power boats, buggies & on-road vehicles
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
What's Included
In the Box
Hitec's new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts.
Specifications
Product Weight
0.50oz (14.2g)
Product Length
0.92" (23 mm)
Product Width
0.45" (11 mm)
Product Height
1.14" (29 mm)
Connector Type
Universal
Application
65oz or less parkflyers, 36-41oz sport planes, 2M/DLG sailplanes, 500-750mm electric helis, 30-39 class gas helis, 1:16 scale power boats, buggies & on-road vehicles
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
Current Draw Idle
3 mA
Current Draw Stall
1,300 mA
Deadband
2µs
Gear Type
Metal
Input Voltage
6.0V ~ 7.4V
Maximum Servo Speed
0.14 sec/60 deg @ 6.0V, 0.12 sec/60 deg @ 7.4V
Maximum Servo Torque
42oz/in @ 6.0V, 53oz/in @ 7.4V
Motor Type
Brushed
Number of Poles
3
Programmable
Yes
Servo Operating Voltage
6.0 - 7.4V (HV)
Servo Size Category
Micro
Servo Type
Digital
Water-Resistant
No
Wire Gauge
28 AWG
Compatibility
This replacement part is used in the following complete models. Only some compatible models are shown here.
