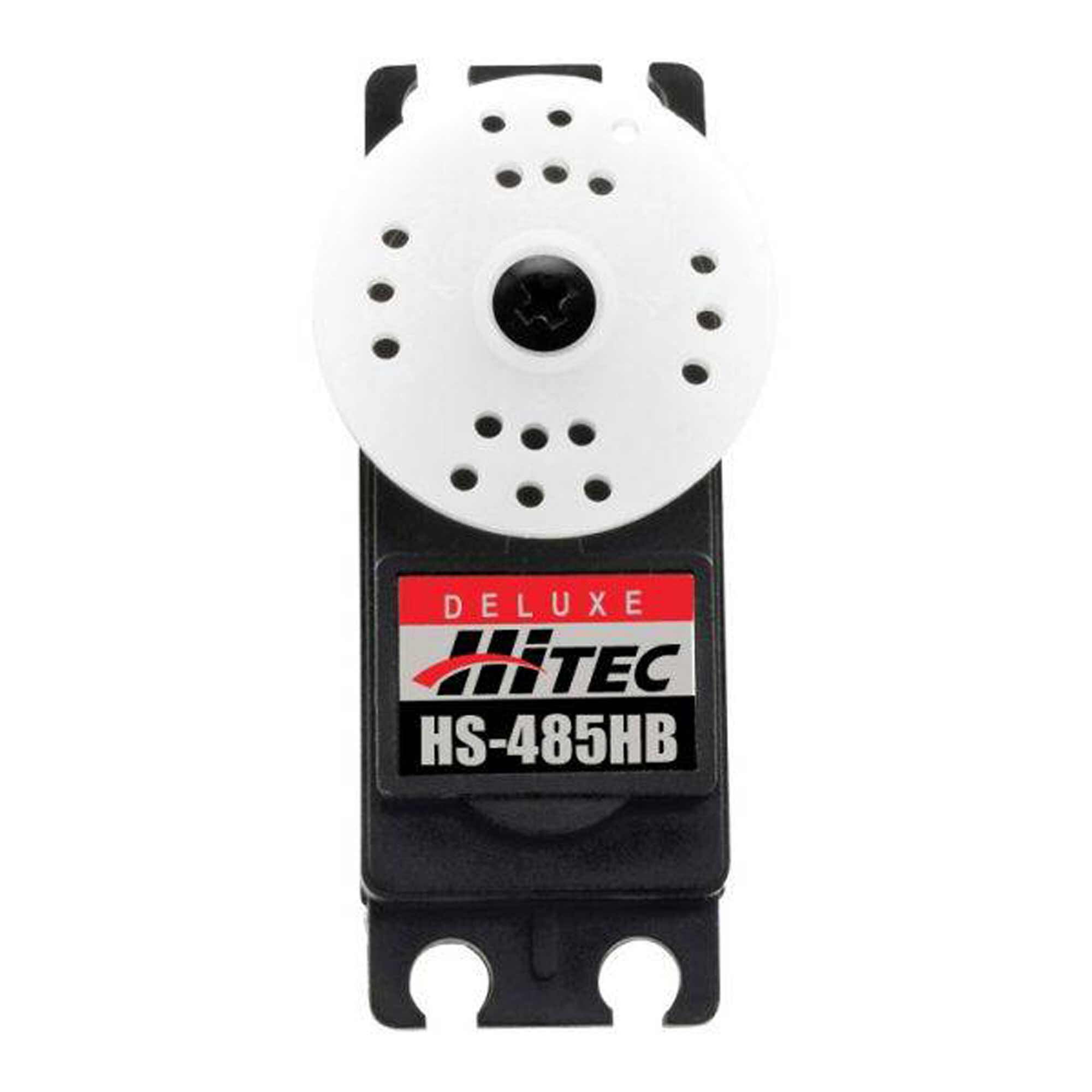

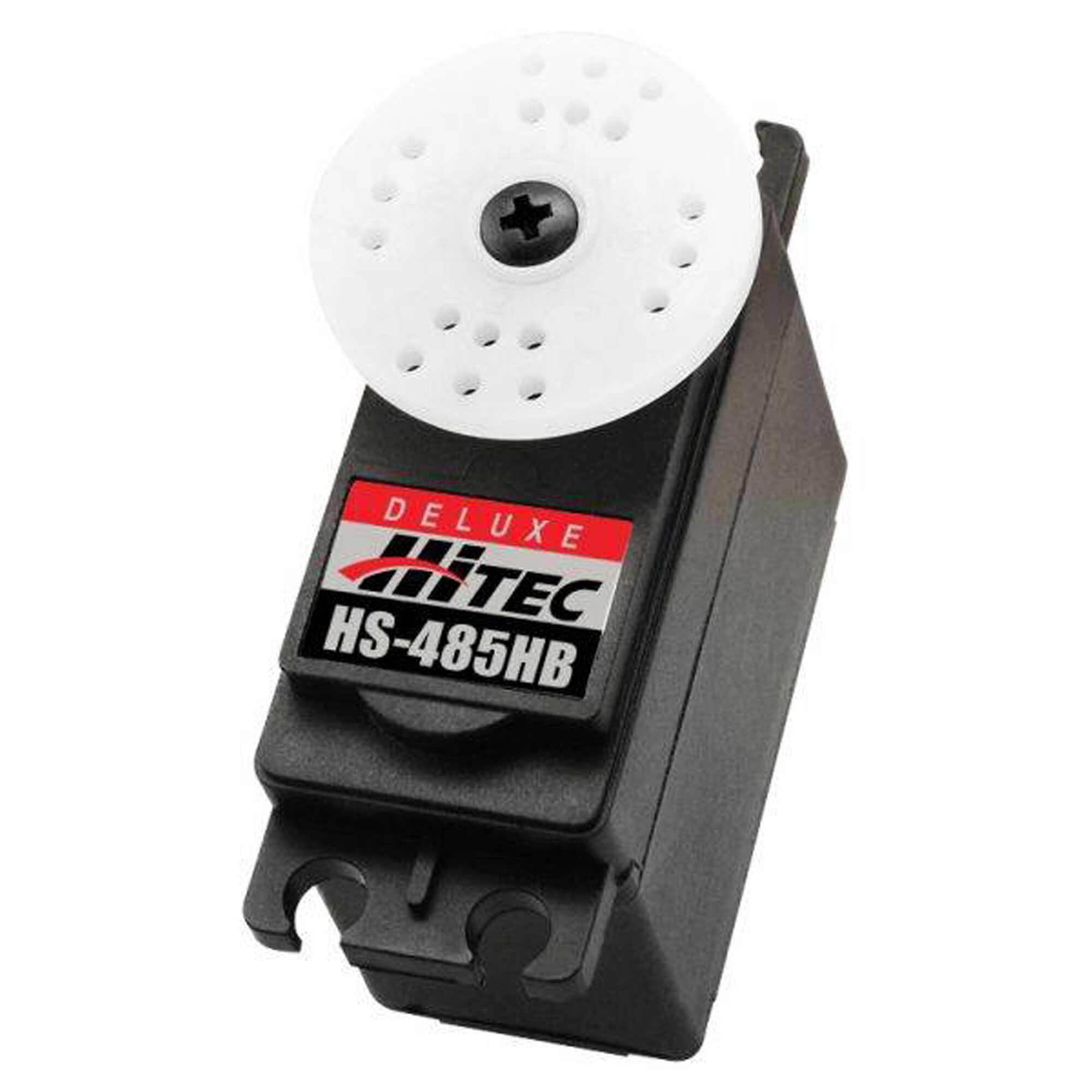

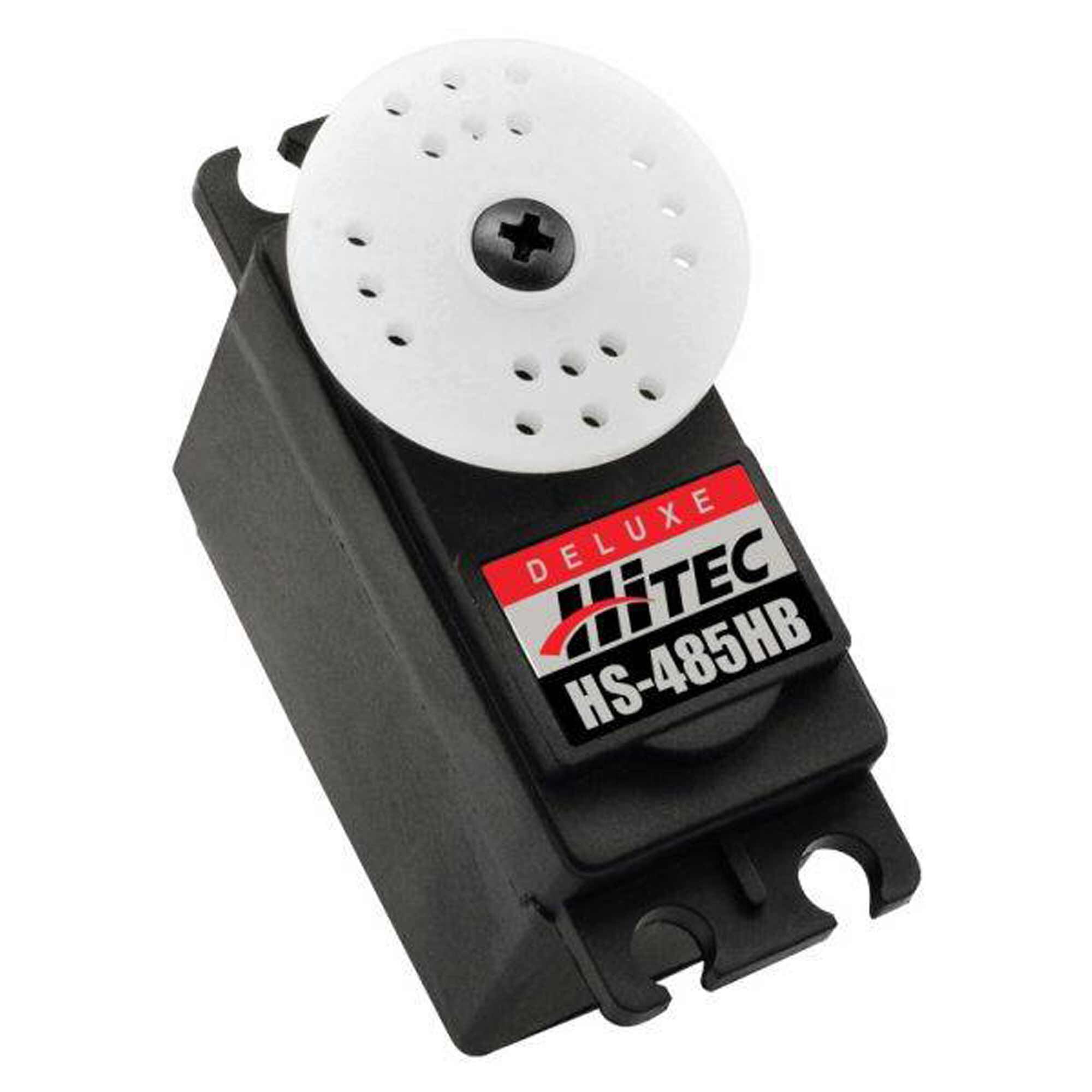

The HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.

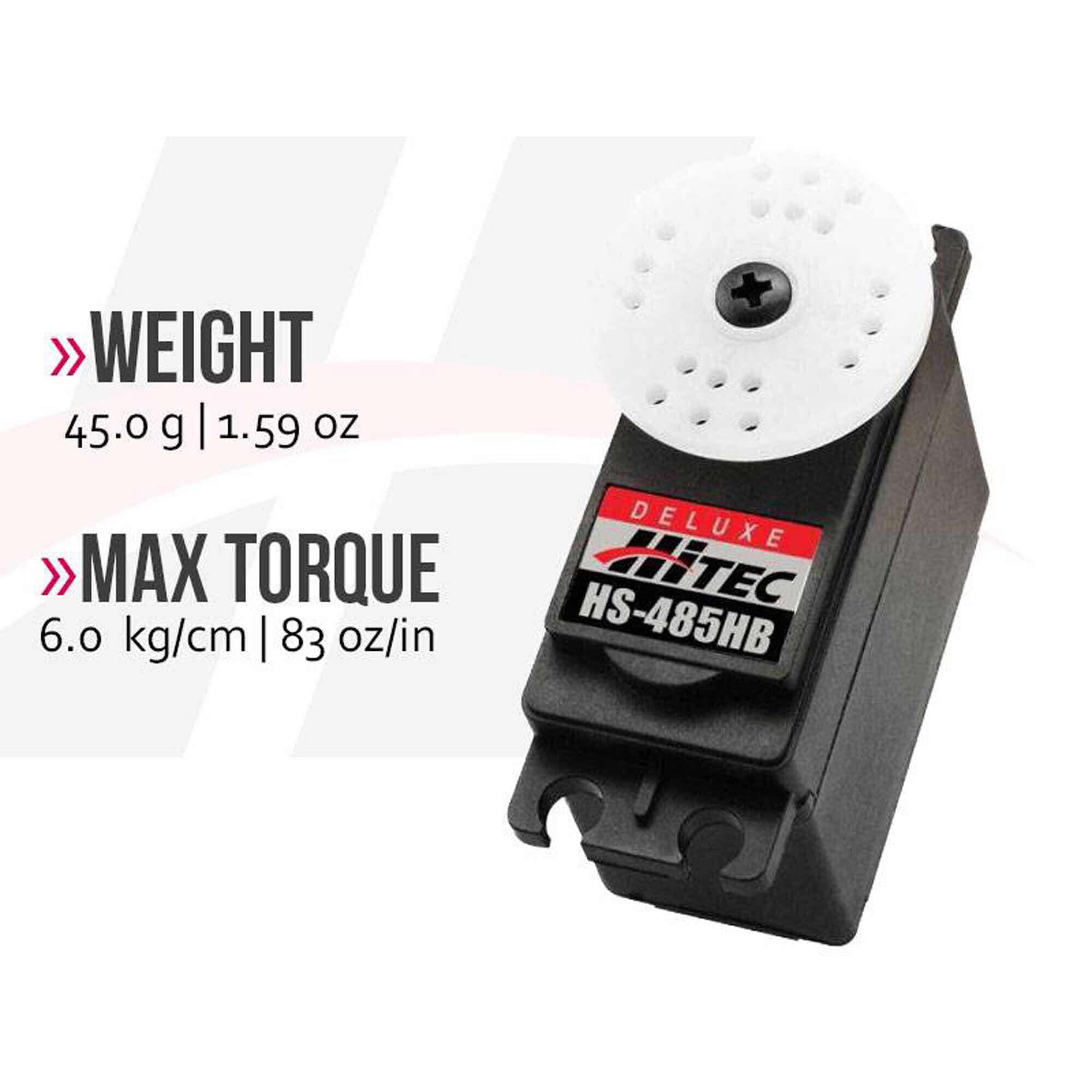

| Product Weight | 1.59oz (45.0g) |
|---|---|

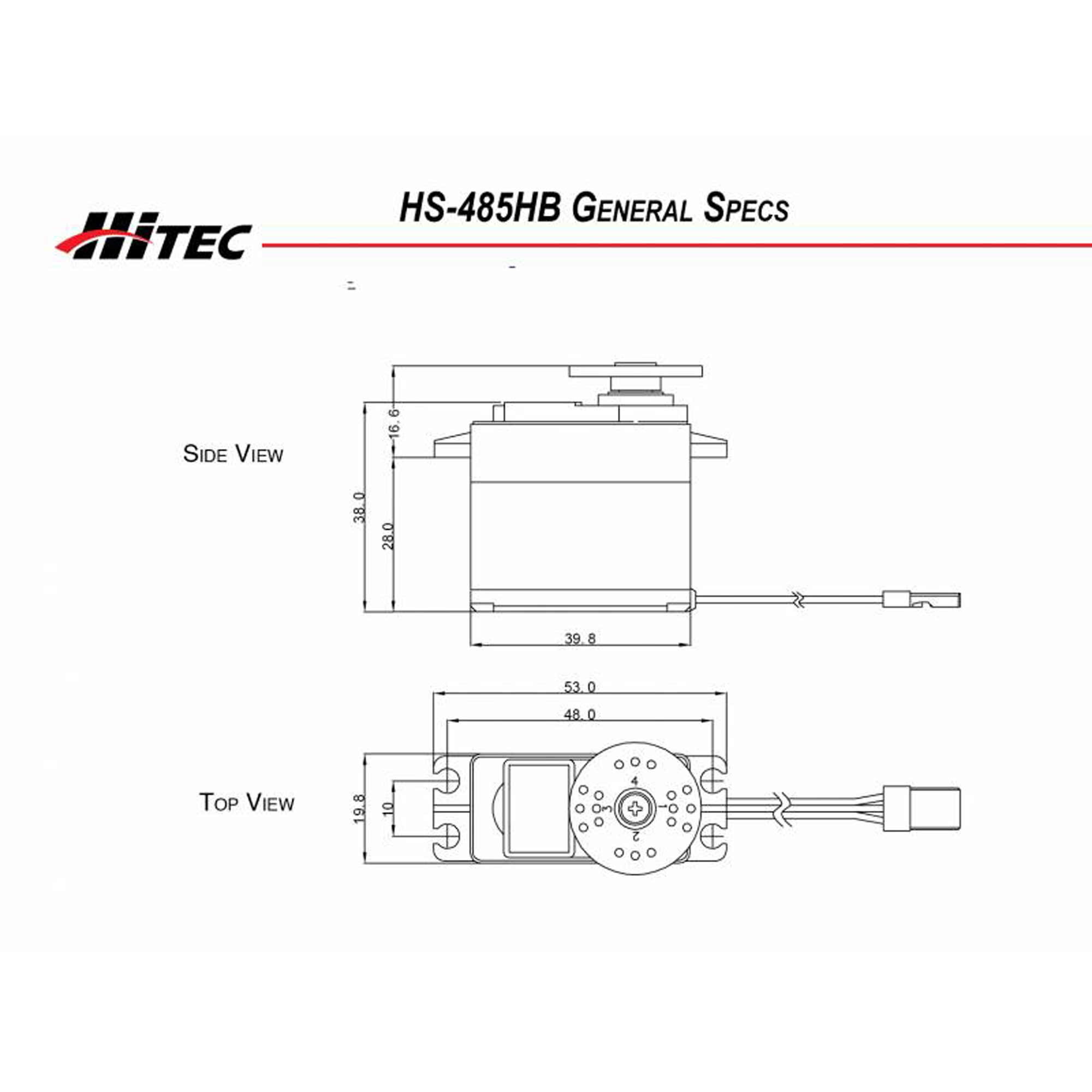

| Product Length | 1.57" (40 mm) |
| Product Width | 0.78" (20 mm) |
| Product Height | 1.49" (38 mm) |
| Connector Type | Universal |
| Application | Glow, Electric Aircraft |
| Bearing | Top Ball Bearing |
| Bushing Or Bearing | Bearing |
| Current Draw Idle | 10 mA |
| Current Draw Stall | 1,200 mA |
| Deadband | 3µs |
| Gear Type | Karbonite |
| Input Voltage | 4.8V ~ 6.0V |
| Maximum Servo Speed | 0.22 sec/60 deg @ 4.8V, 0.18 sec/60 deg @ 6.0V |
| Maximum Servo Torque | 67oz/in @ 4.8V, 83oz/in @ 6.0V |
| Motor Type | Brushed |
| Programmable | No |
| Servo Operating Voltage | 4.8 - 6.0V |
| Servo Size Category | Standard |
| Servo Type | Analog |
| Spline Count | 24 - Tooth |
| Water-Resistant | No |
| Wire Gauge | 25 AWG |
This replacement part is used in the following complete models.
Valiant 10cc ARF, 69"HAN5080
1/4 Sbach 342 1.20 GP EP ARF 65.5"PMMA0310
Edge 540 .46-.55 GP EP ARF 55.5"PMMA0360
1:5 3/4 Waco F5C GP EP Gas ARF 63"PMMA0390
1/7 P-51 Mustang .46-.55 GP EP ARF 55.5"PMMA0400
Sonic Mk2 High-Wing .25-.32 GP EP ARFPMMA1125
Sonic Mk2 Low-Wing .25-.32 GP EP ARF 52.7PMMA1230
1/6 Dolphin Mk2 .46-.55 GP EP ARF 63"PMMA1250
Tiger 3 Sport .46-.55 GP EP ARF 63"PMMA1356
Stinson .46-.55 GP EP ARF 63.3"PMMA1357
1/8 Spitfire Mk2 .46-.55 GP EP ARF 55"PMMA1359
Strega Mk2 .46-.55 GP EP ARF 55.5"PMMA1360
1:6 1/2 Cessna Skylane 182 .46-.55 EP ARFPMMA1547
1/6 Decathlon Mk2 .46-.55 GP EP ARF 65.7"PMMA1560
1/5 Ryan STA GP EP Gas ARF 70.8"PMMA1600
F4U Corsair .46-.55 GP EP ARF 58.5"PMMA1605
Spacewalker .46-.55 GP EP ARF 63"PMMA1700
Piper J3 Cub .46-.55 GP EP ARF 84.6"PMMA1705
Focke-Wulf FW 190 .46-.55 GP EP ARFPMMA1840
ZERO A6M EP/GP .46-.55 ARF 55"PMMA1865
Aurora Sport Aerobat EP/GP .46-.55 ARF 59.1"PMMA1870loading
