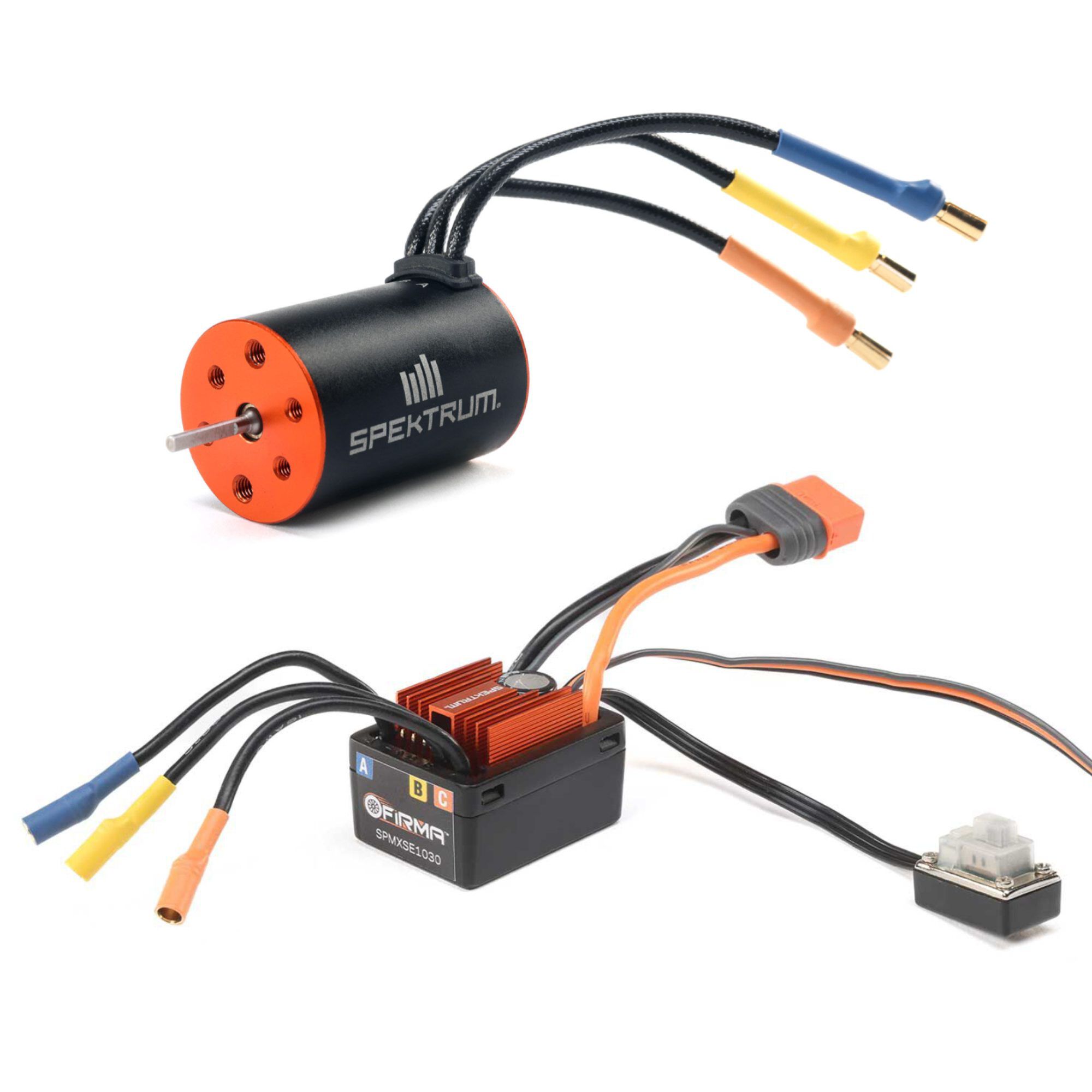

Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo Overview
Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 30A brushless marine ESC drives your mini through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter! The 4500Kv Motor offers impressive torque, speed, and excellent efficiency.
Key Features
Smart all-in-one telemetry
Waterproof (see instructions for details)
Multiple programming options
Multi-point protection
Key Specs
Speed Control
Included
Connector Type
IC3
Amperage
30A
Application
1/16 to 1/18th scale mini sized vehicles
BEC
Yes
BEC Continuous Current
3A
BEC Type
Linear
BEC Voltage
6V / 7.4V
Specifications
Speed Control
Included
Connector Type
IC3
Amperage
30A
Application
1/16 to 1/18th scale mini sized vehicles
BEC
Yes
BEC Continuous Current
3A
BEC Type
Linear
BEC Voltage
6V / 7.4V
Brakes
Yes
Bushing Or Bearing
Bearing
ESC Type
Brushless
Forward
Yes
Input Voltage
2S - 3S LiPo | 5C - 9C NiMH
Low-Voltage Cutoff Programmable
Yes
Maximum Burst Current
100A
Maximum Continuous Current
30A
Motor Output Lead
3.5mm Bullet
Motor Type
Brushless
Number of Poles
4
Output Connector
3.5mm Bullet
Overload Protection
Yes
Programmable
Yes
Reverse
Yes
RPM/Volt (Kv)
4500Kv
Sensored
No
Shaft Diameter
0.08" (2 mm)
Shaft Length
0.47" (12 mm)
Technology
Smart
Compatibility
This replacement part is used in the following complete models. Only some compatible models are shown here.
