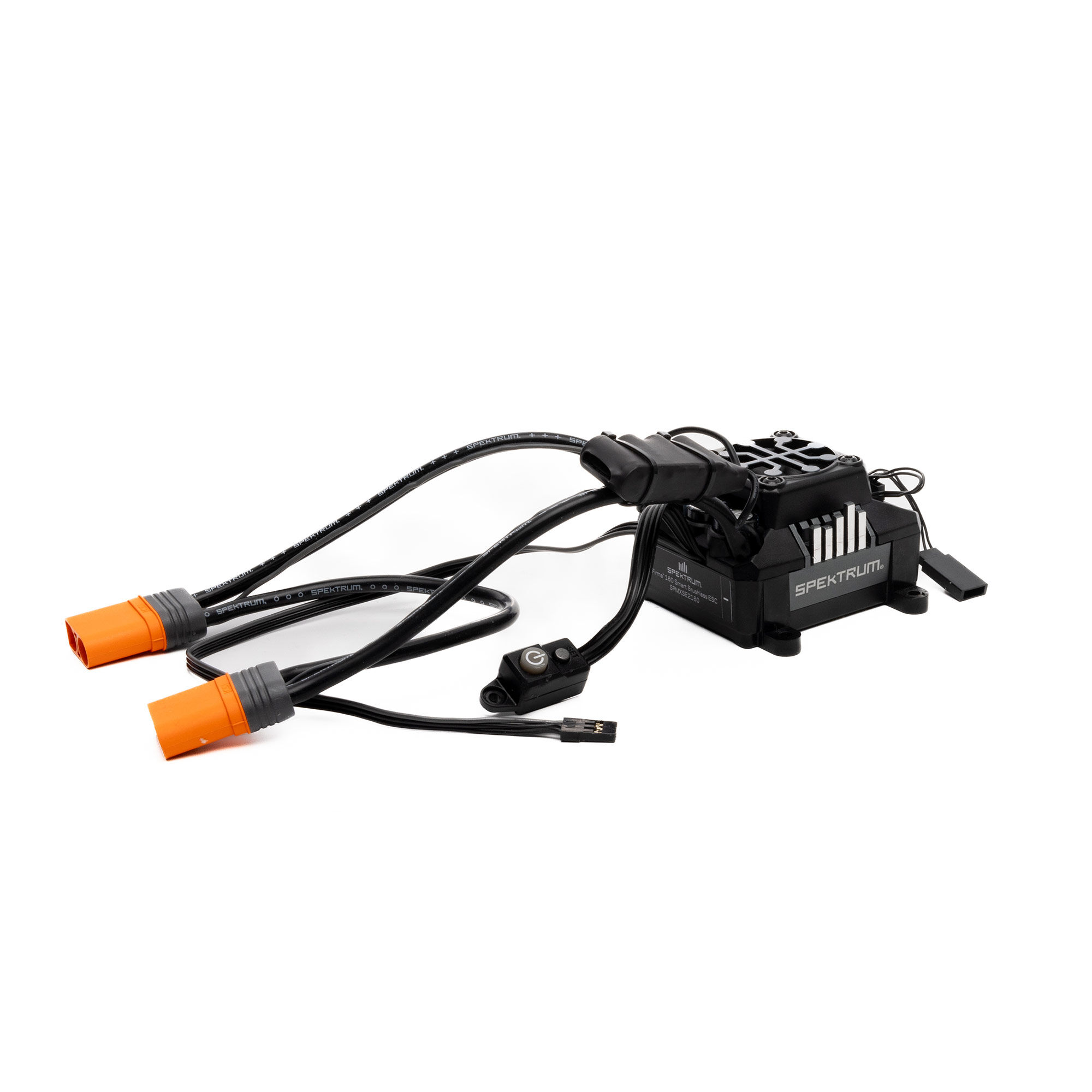

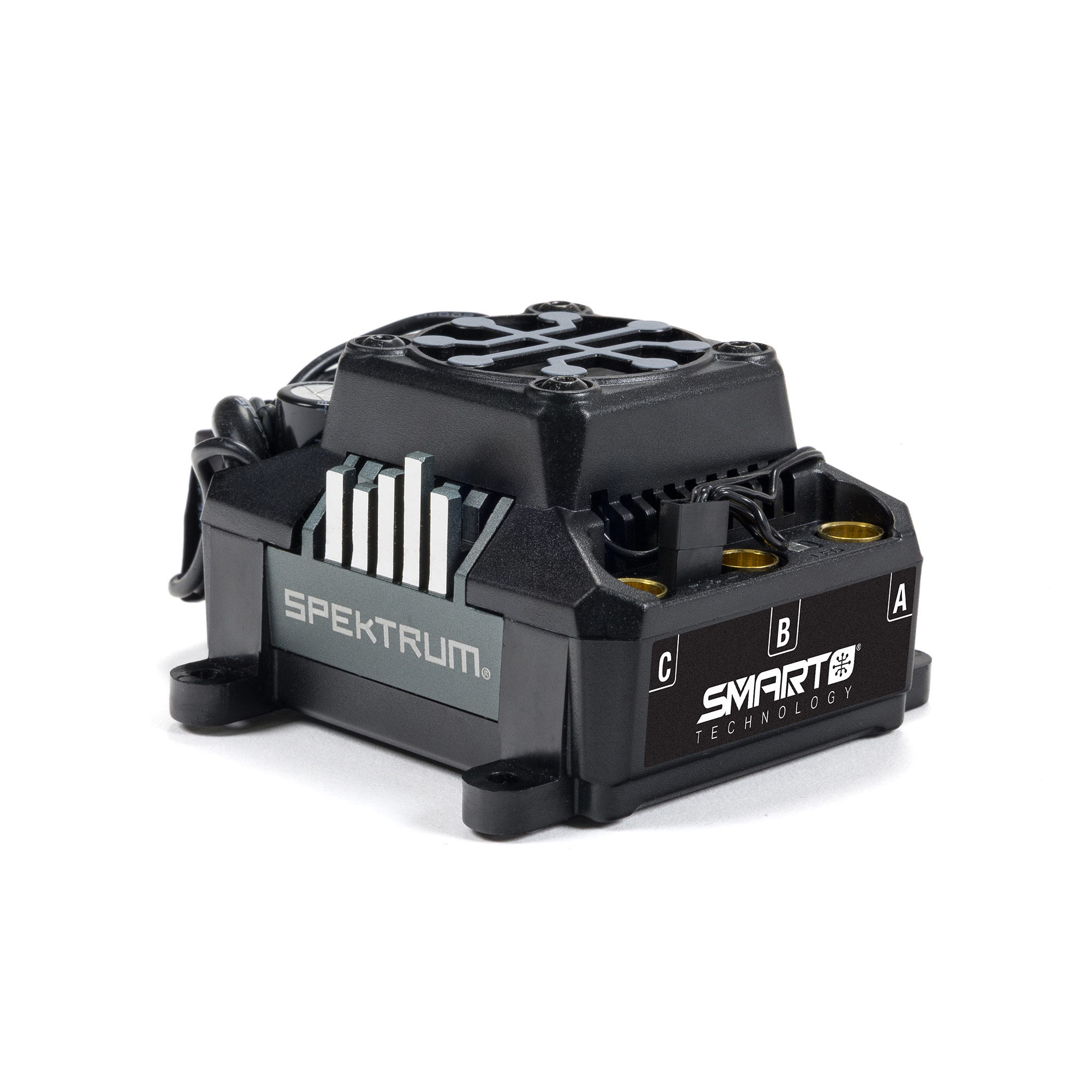

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

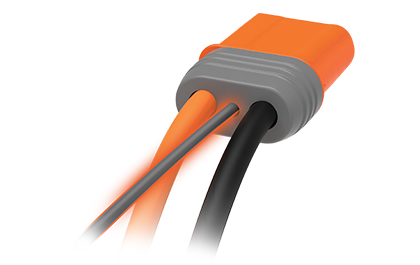

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.

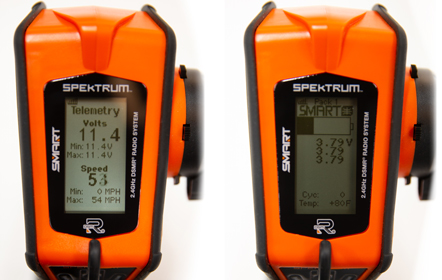

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!

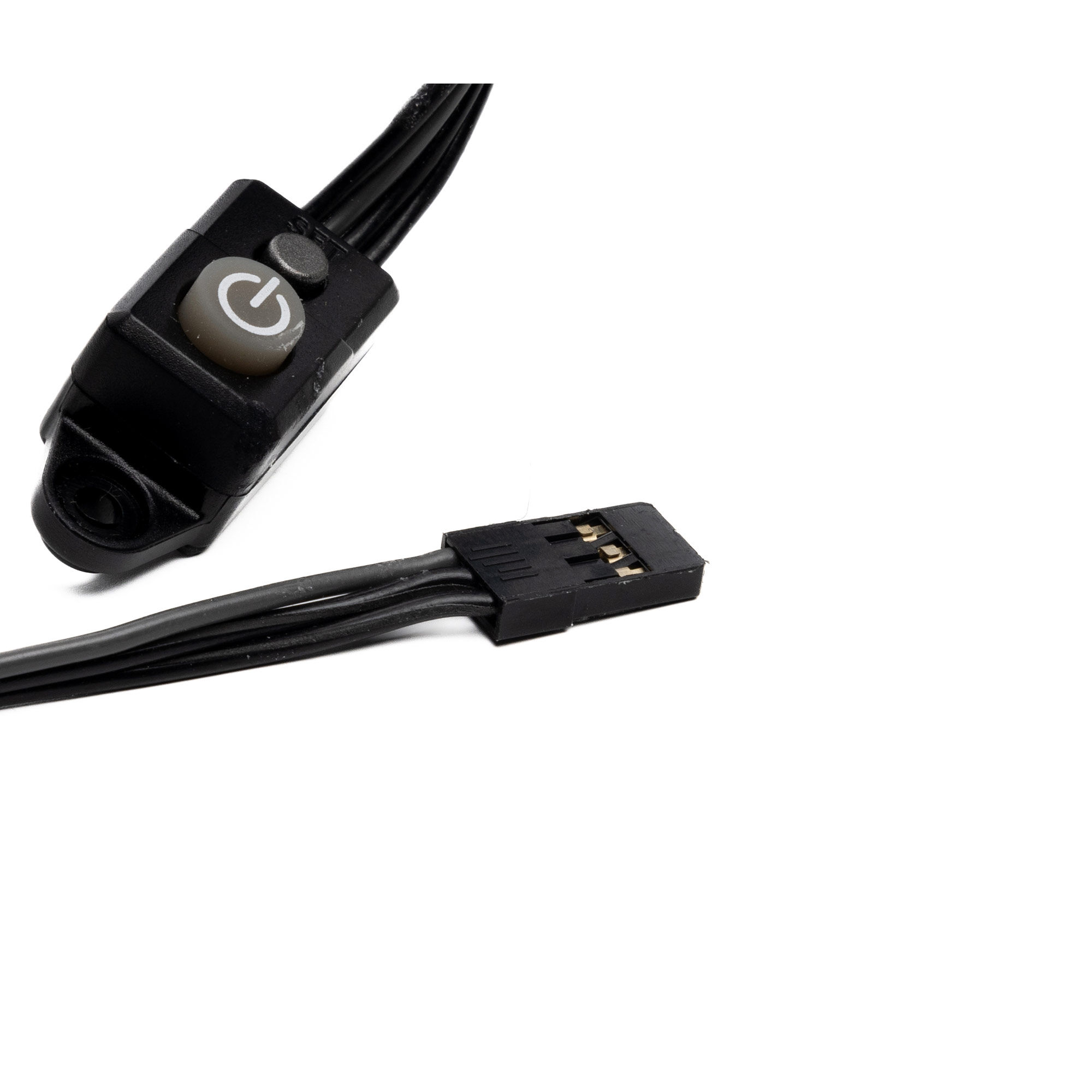

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

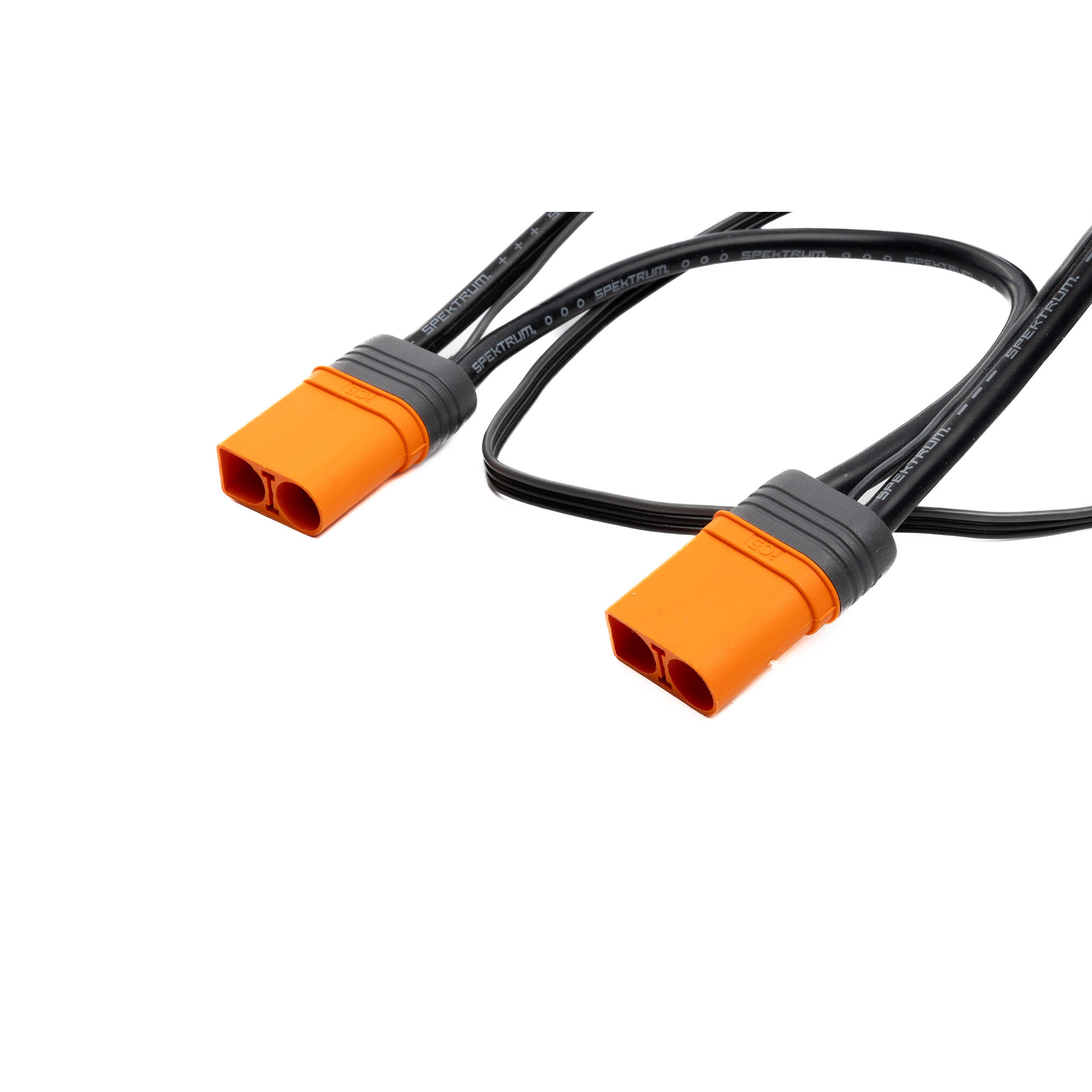

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.
| Battery Input Lead | 10AWG Dual IC5, EC5 compatible |
|---|---|
| Product Weight | 9.9oz (280g) |
| Product Length | 2.7" (69 mm) |
| Product Width | 3.03" (77 mm) |
| Product Height | 1.8" (46 mm) |
| Connector Type | IC5 |
| Auto Cutoff | Yes |
| BEC | Yes |
| BEC Continuous Current | 8A |
| BEC Type | Switch Mode |
| BEC Voltage | 6V or 8.4V (User Selectable) |
| Brakes | Yes |
| Forward | Yes |
| Input Voltage | 3S - 8S LiPo |
| Low-Voltage Cutoff Programmable | Yes |
| Maximum Burst Current | 1050A |
| Maximum Continuous Current | 160A |
| Motor Output Lead | 6.5mm Female Bullets |
| Overload Protection | Yes |
| Programmable | Yes |
| Reverse | Yes |
| Technology | Smart |
| Water-Resistant | Yes |
This replacement part is used in the following complete models.
Smart ESC Compatibility - English
Spektrum SMART ESC Avian / Firma Spec Chart
Spektrum Firma SmartLink Update Instructions
Spektrum Firma 160A Brushless Smart ESC V2, 3S - 8S: Dual IC5 - Programming Guide - French
Spektrum Smart Firma ESC Manual - French
Spektrum Firma 160A Brushless Smart ESC V2, 3S - 8S: Dual IC5 - Programming Guide - Italian
Spektrum Smart Firma ESC Manual - Italian
Spektrum Smart Firma ESC Manual - English
Spektrum Smart Firma ESC Manual - German
Spektrum Firma 160A Brushless Smart ESC V2, 3S - 8S: Dual IC5 - Programming Guide - German
Spektrum Firma 160A Brushless Smart ESC V2, 3S - 8S: Dual IC5 - Programming Guide - English
