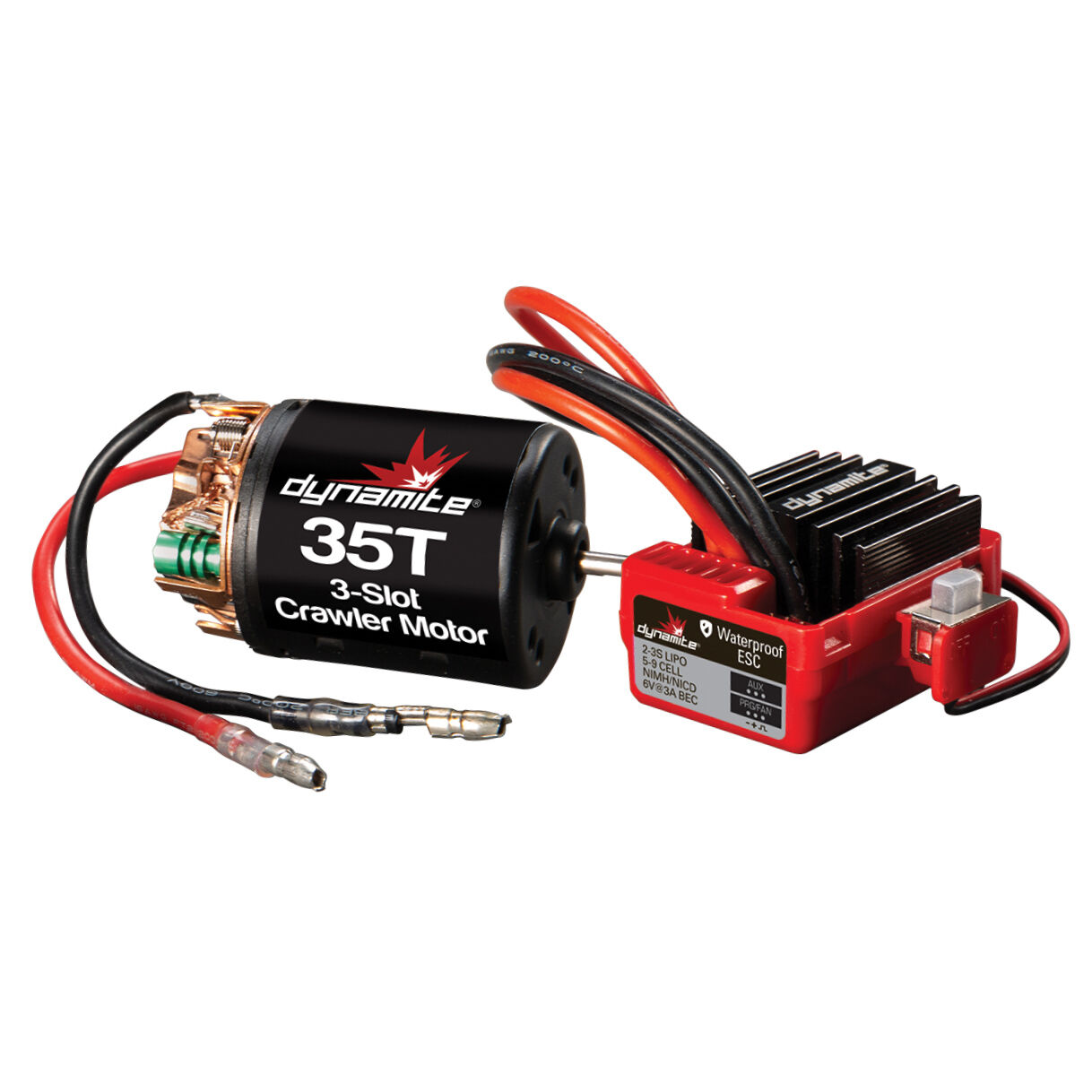

This Dynamite® brushed crawler motor/ESC combo offers price sensitive enthusiasts the perfect arrangement for their crawlers. Additionally, the system is a great completion item for both kits and rollers. The combo includes a powerful, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features "On the Fly" adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. As with all Dynamite power systems, motors and ESC's are available separately.
| Product Weight | ESC 2.4oz (68g) with wires |
|---|---|
| Product Length | ESC 1.8" (46.5mm) |
| Product Width | ESC 1.3" (34mm) |
| Product Height | ESC 1.1" (28.5mm) |
| Connector Type | IC3 |
| Adjustable Timing | Yes |
| BEC | Yes |
| BEC Continuous Current | 6V/3A |
| BEC Type | Shared between receiver, auxillary light ioutput and cooling fan |
| BEC Voltage | 6V |
| Brakes | Electronic |
| Bushing Or Bearing | Bearing |
| Forward | Yes |
| Input Voltage | 7.2 - 11.1V |
| Motor Design | Inrunner |
| Outer Diameter | 1.4 in (36mm) |
| Programmable | Yes |
| Reverse | Yes |
| Shaft Diameter | 1/8" (3.2mm) |
| Turns | 35T |
