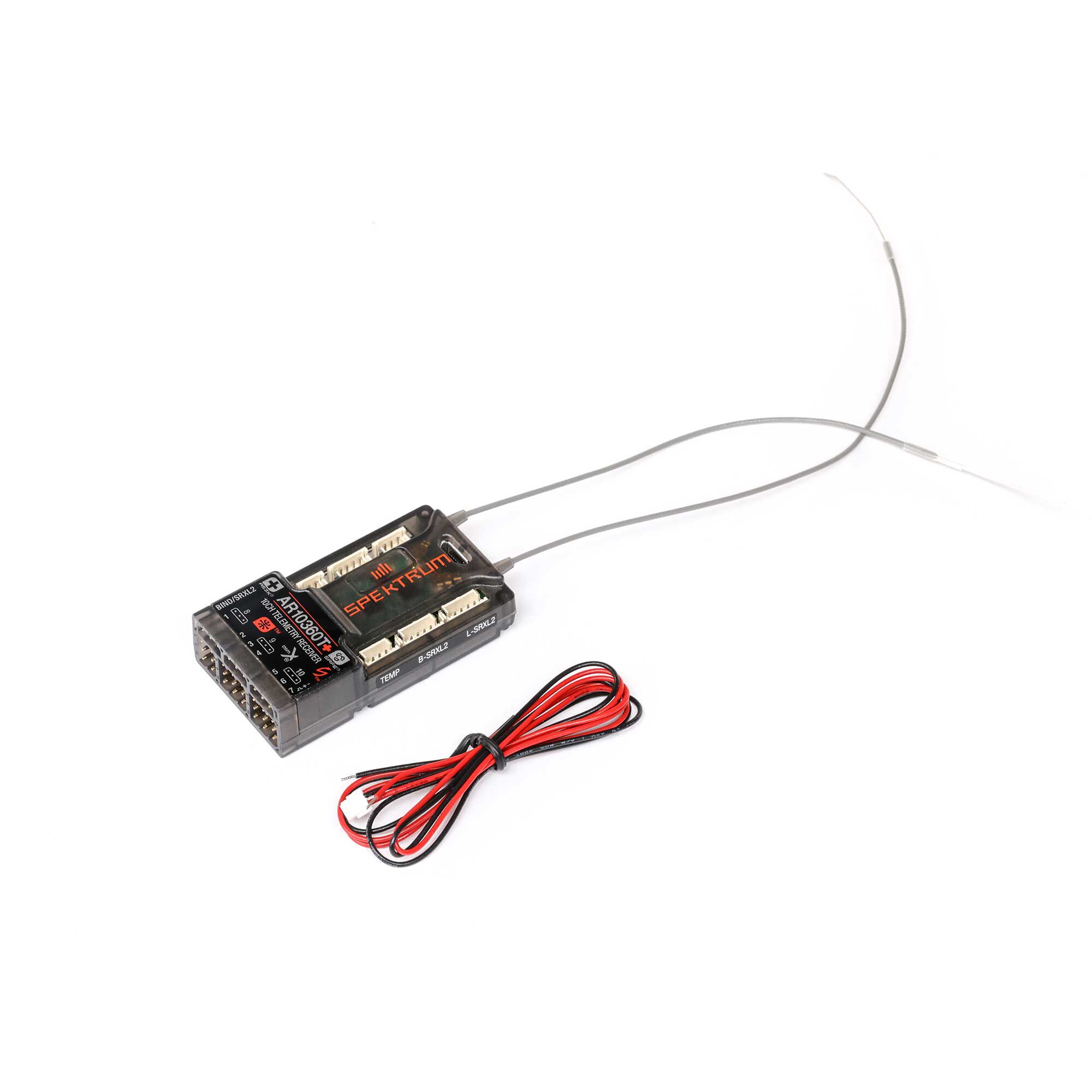

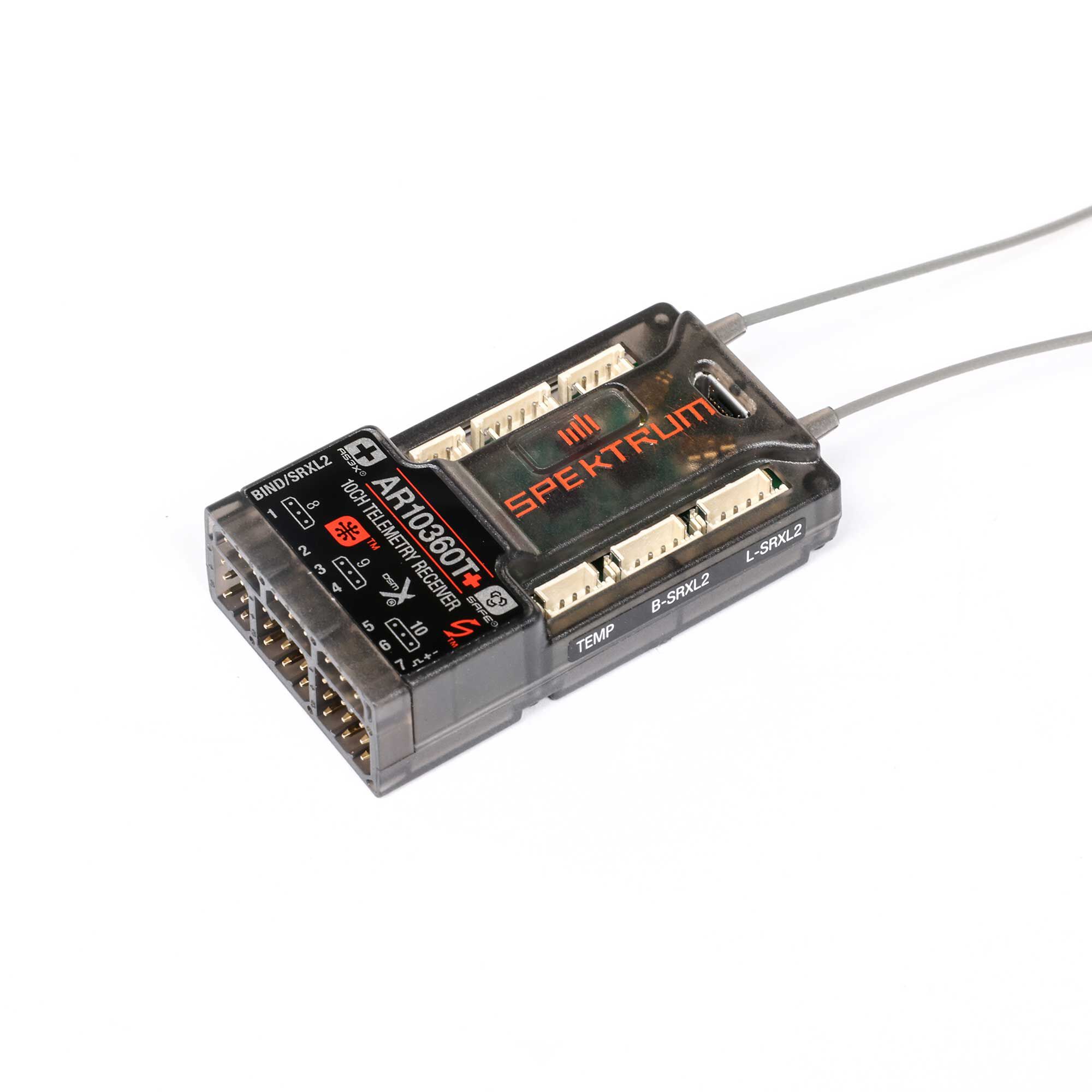

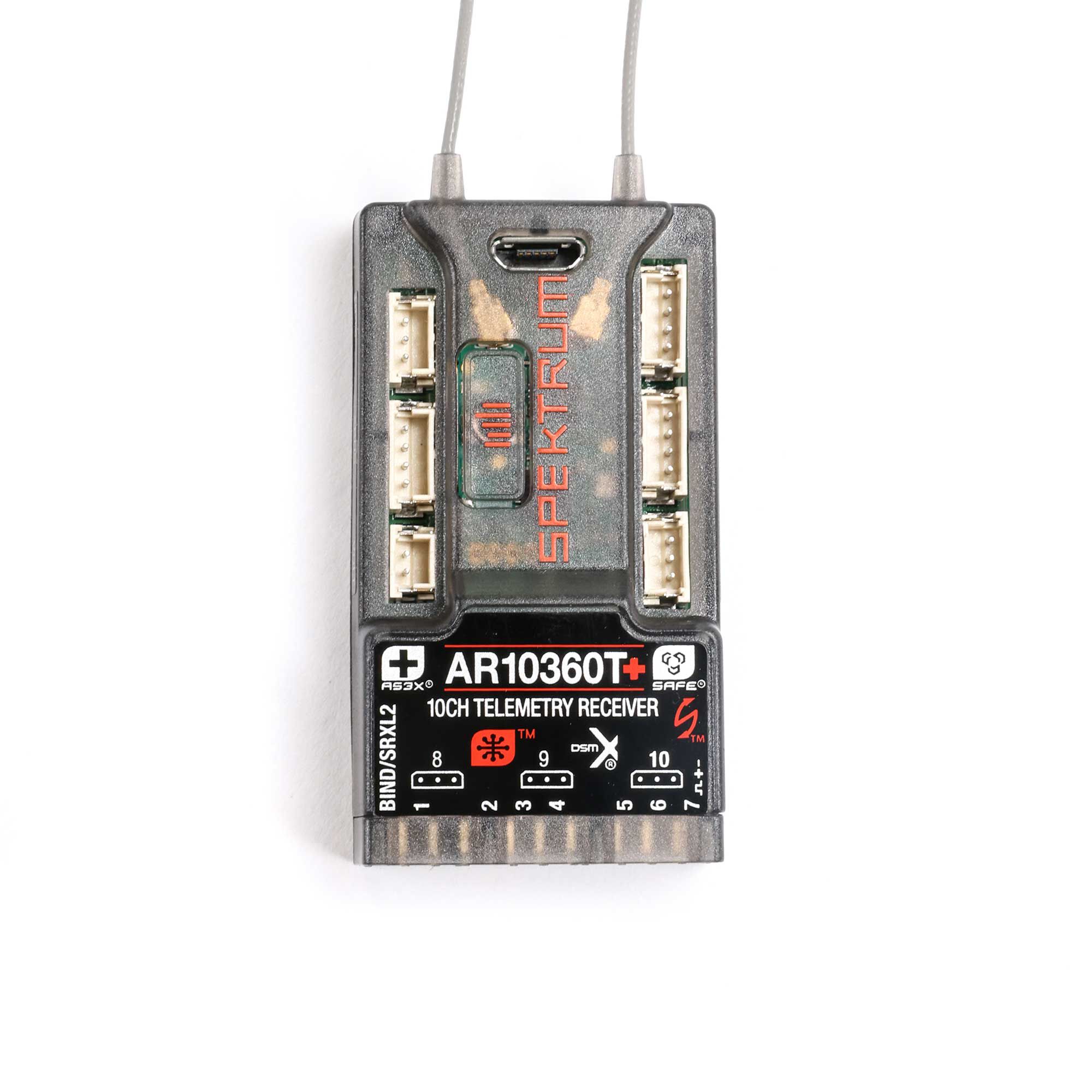

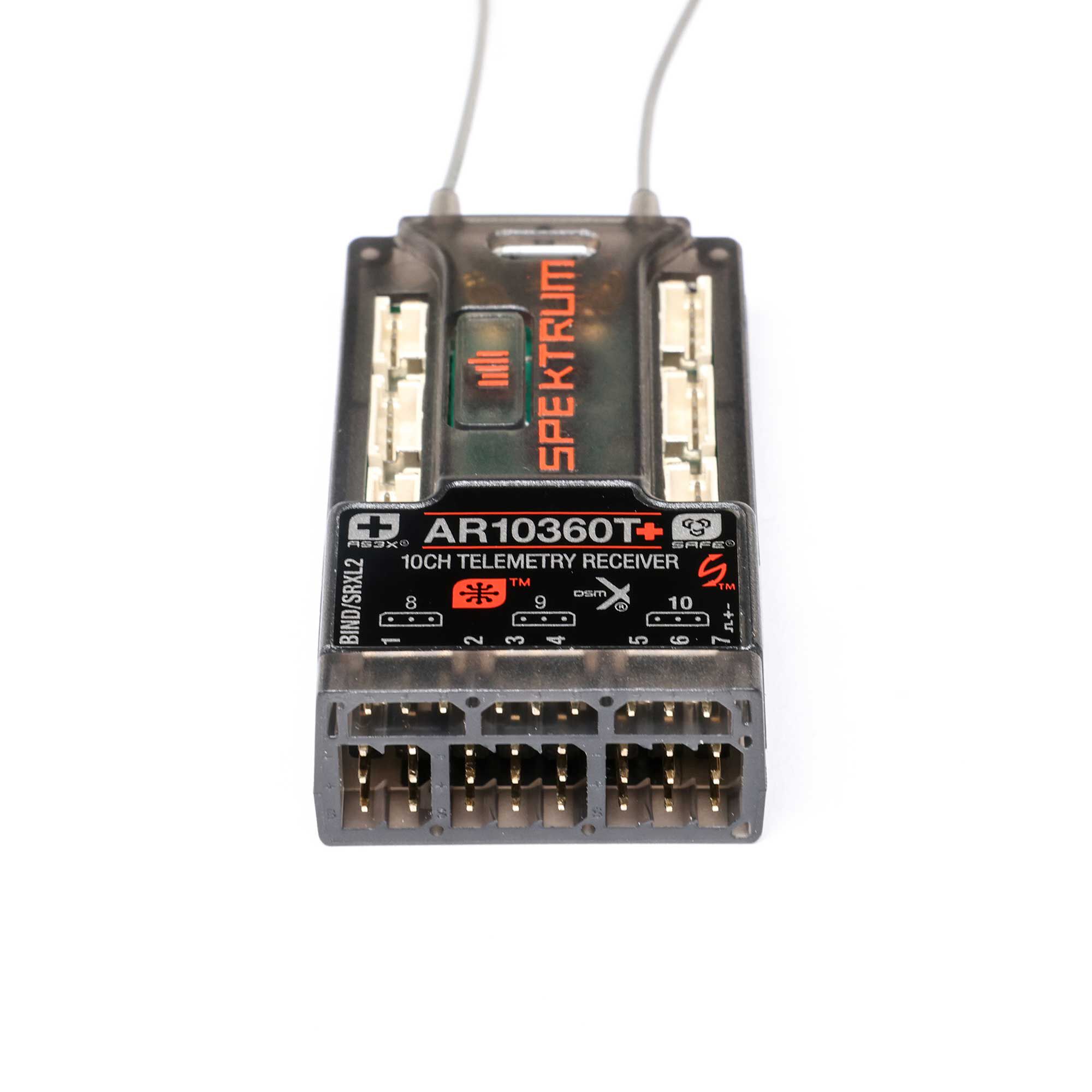

The Spektrum™ AR10360T+ 10 Channel AS3X+/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR10360T+ is a full-range 10-channel receiver with built-in AS3X+® and SAFE® stabilization, which counters the effects of wind, turbulence, and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy, data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.

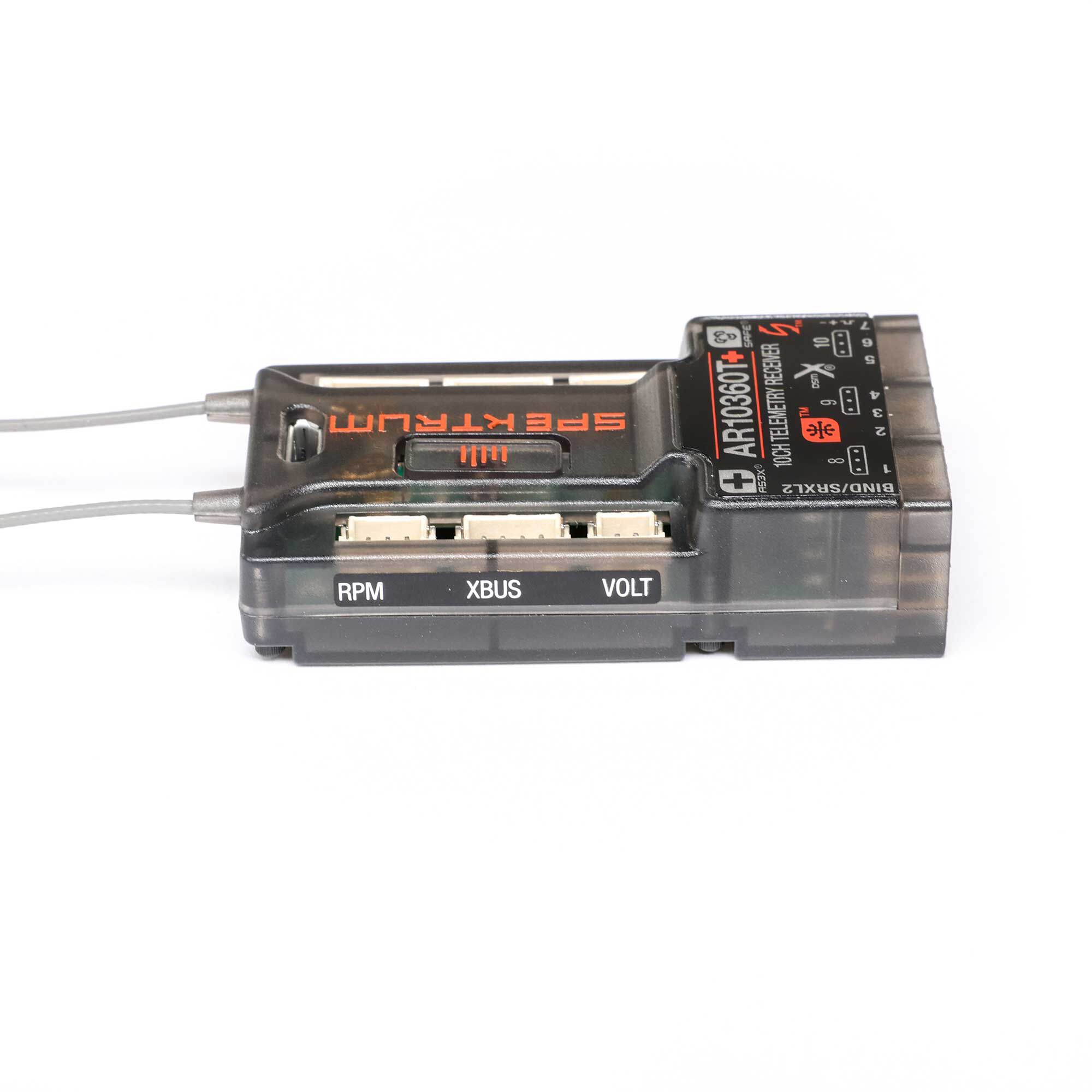

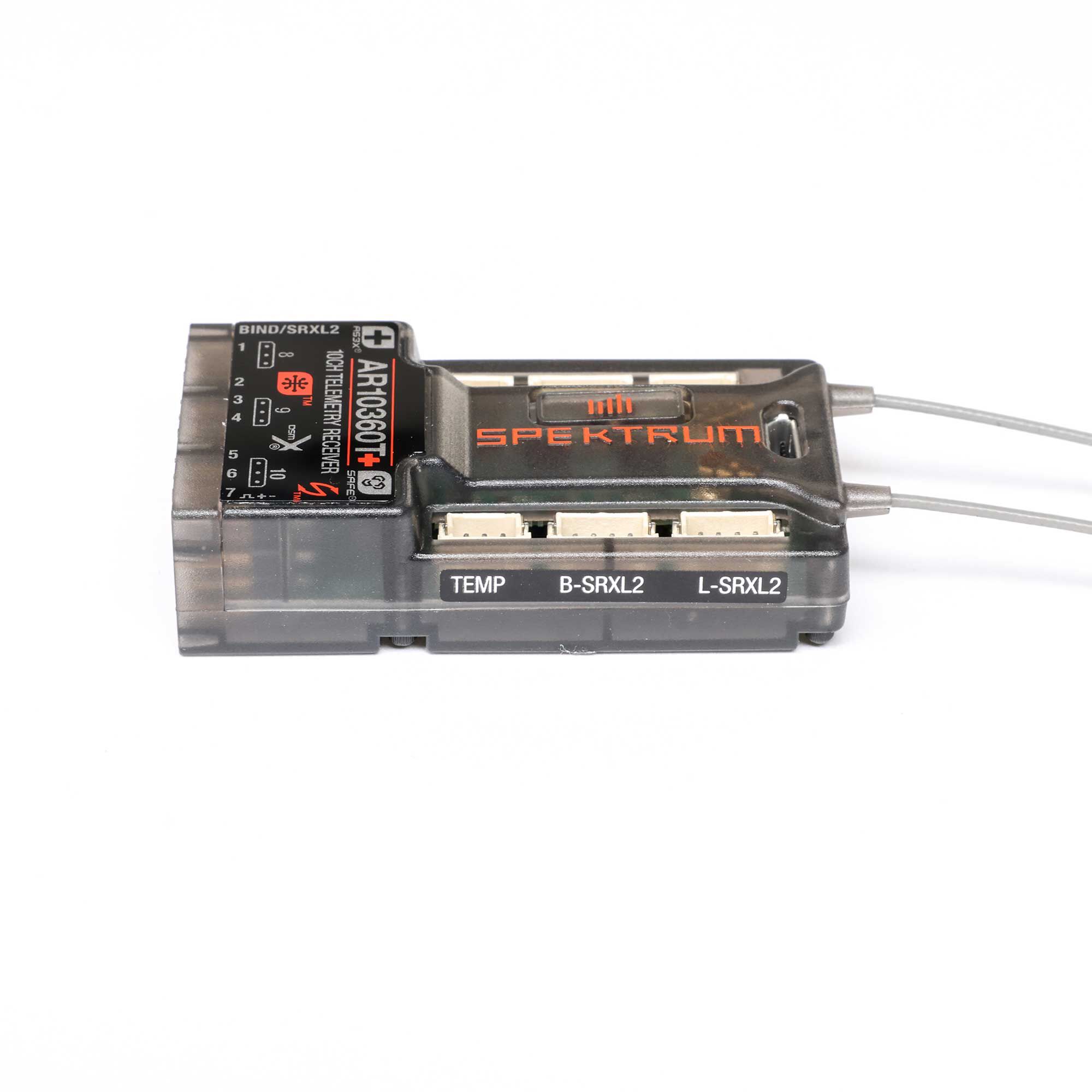

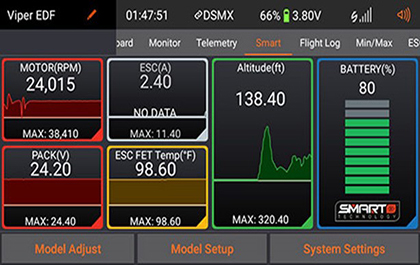

The AR10360T+ features full-range telemetry and an integrated barometer to provide altitude and vario telemetry data without additional purchase. XBUS, RPM, voltage, and temperature ports can be used to add additional telemetry sensors available separately. It also features two SRXL2 ports for SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plus, or connect a battery. The AR10360T+ also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last, as well as preset failsafe types set through Forward Programming. Additionally, Smart Model Files allows BNF models to be stored on the receiver to automatically set the model at bind. The AR10360T+ also features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application.
Go to www.spektrumrc.com for the latest receiver updates.
Smart Transmitter Model Files is a new feature on the AR10360T+ receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.
You can fully configure the AR10360T+ receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments. Setup everything from AS3X+ and SAFE to individual failsafe parameters right from your fingertips.
SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.
Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bail out of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.
Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. This allows the pilot to quickly and automatically bail out of tense situations with the touch of a button. This feature is fully programmable and customizable via the Forward Programming menu on a compatible Spektrum transmitter.

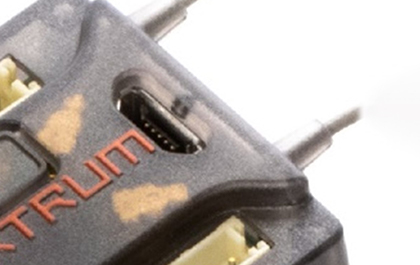

The AR10360T+ features a convenient Micro USB port for updating and model setup sharing. Using a common Micro USB Cable (not included) and the latest version of the Spektrum PC Programmer, users can update the main receiver and any remote receivers currently attached to it. Also, with the AR10360T+, pilots can easily export, share, and upload AS3X+ and SAFE-enabled model presets.
| Remote Receiver Ports | 2 |
|---|---|
| Product Weight | 18 g (0.63 oz) |
| Product Length | 2.16" (55 mm) |
| Product Width | 1.18" (30 mm) |
| Product Height | 0.59" (15 mm) |
| Antenna Length | 7.32" (186 mm) |
| Application | Airplane, Sailplane |
| Band | 2.4GHz |
| Bind Method | Bind Button |
| Channels | 10 |
| Failsafe | Yes |
| Forward Programming | Yes |
| Input Voltage | 3.5V–9V |
| Integrated Variometer | Yes |
| Modulation | DSMX/DSM2 |
| Product Application | Air, Sailplanes |
| Programmable | Yes |
| Range | Full |
| Serial Out | SRXL2 |
| Technology | AS3X+, SAFE |
| Telemetry | Yes |
| Telemetry Range | Full-Range Integrated |
This replacement part is used in the following complete models.
Kingfisher 1400mm PNP with ReflexFMM103PFX
Super EZ PNP 1220mm V4 with Floats and ReflexFMM122PX
P-47D Thunderbolt 20cc ARF with E-flite Electric Retract SetHAN2990CR
Ultra Stick PNP, 60"HAN4775
Valiant 10cc ARF, 69"HAN5080
P-51D Mustang 50-60cc ARFPMMA0205

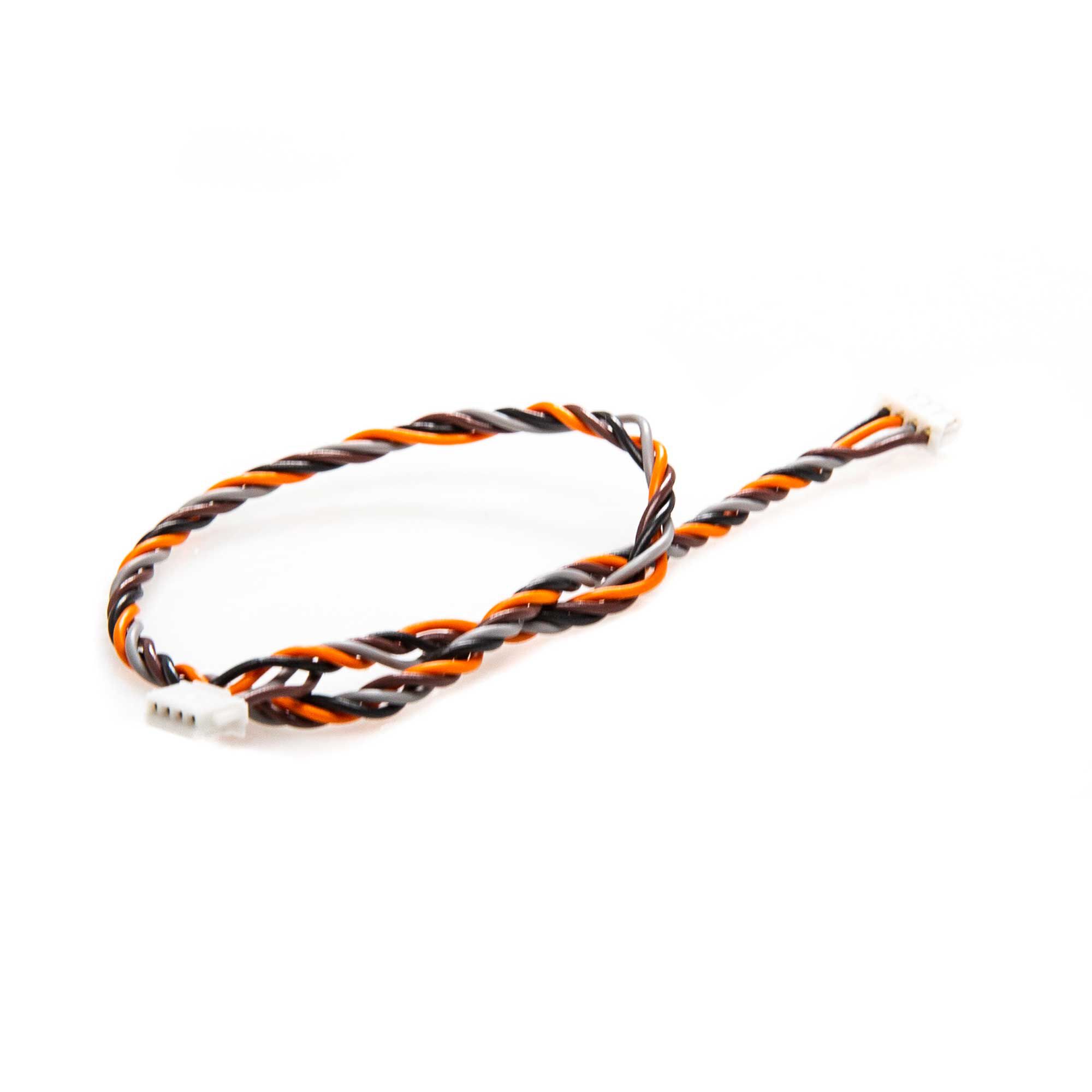

SRXL2 Remote Receiver Extension, 9-InchSPM9101

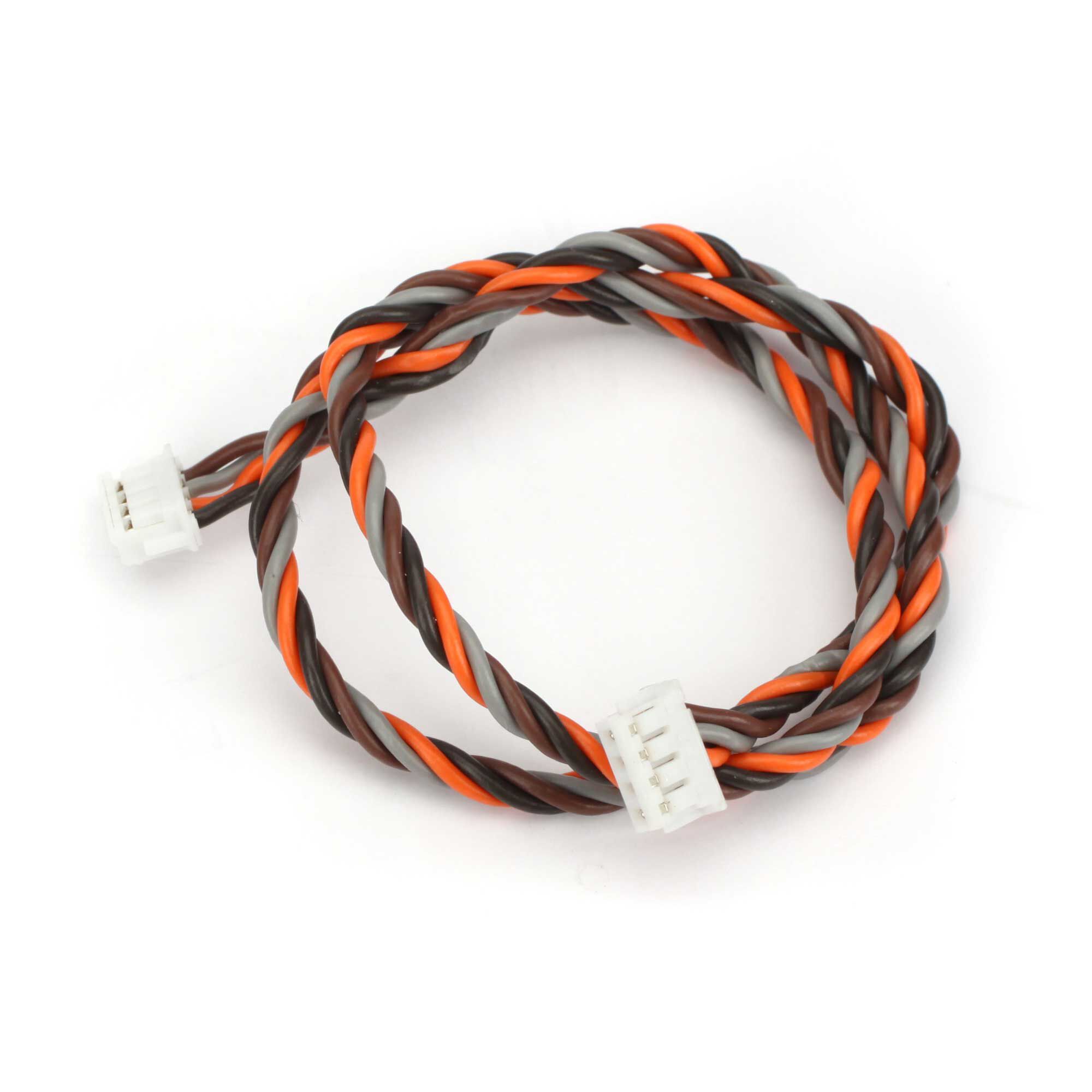

X-Bus Extension 12-inchSPMA9580
