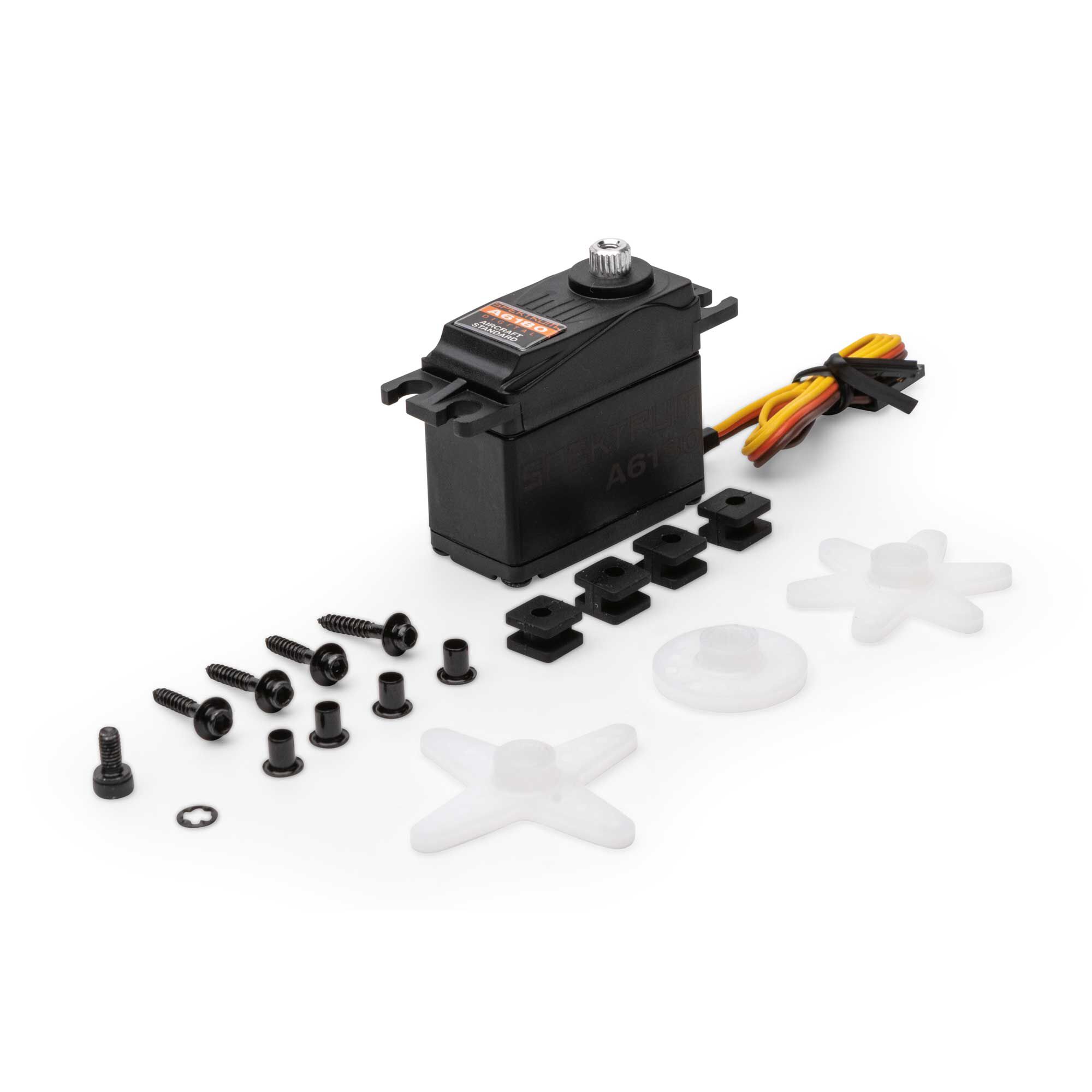

A6180 Standard Digital Aircraft Servo. Product information and specifications are provided below.
| Product Weight | 1.48 oz (42 g) |
|---|---|
| Product Length | 1.53" (38.8mm) |
| Product Width | 0.74" (18.8mm) |
| Product Height | 1.37" (34.9mm) |
| Programmable | No |
| Bushing Or Bearing | Bearing |
| Motor Type | Brushed |
| Maximum Servo Torque | 82 oz-in (5.9 kg-cm) @ 4.8V; 94 oz-in (6.8 kg-cm) @ 6.0V |
| Servo Type | Digital |
| Servo Operating Voltage | 4.8 - 6.0V |
| Bearing | Dual |
| Gear Type | Metal |
| Number of Poles | 5 |
| Servo Size Category | Standard |
This replacement part is used in the following complete models.
1/6 Dolphin Mk2 .46-.55 GP EP ARF 63"PMMA1250
1/6 Decathlon Mk2 .46-.55 GP EP ARF 65.7"PMMA1560
Westland Lysander 50-60cc ARF, 126"PMMA1810
Focke-Wulf FW 190 .46-.55 GP EP ARFPMMA1840
Stuka Ju 87 61cc Gas EP ARF 94.4"PMMA1850loading
