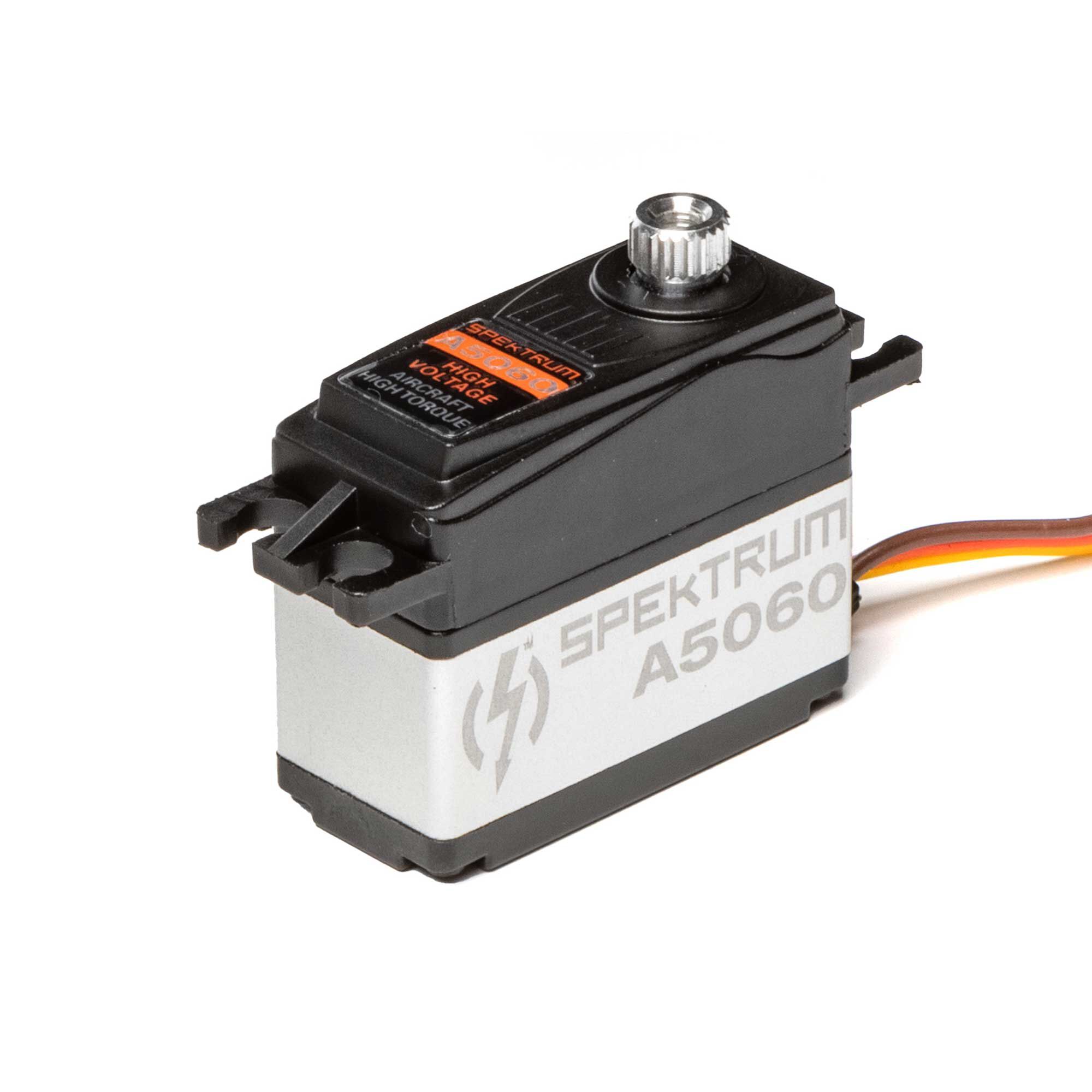

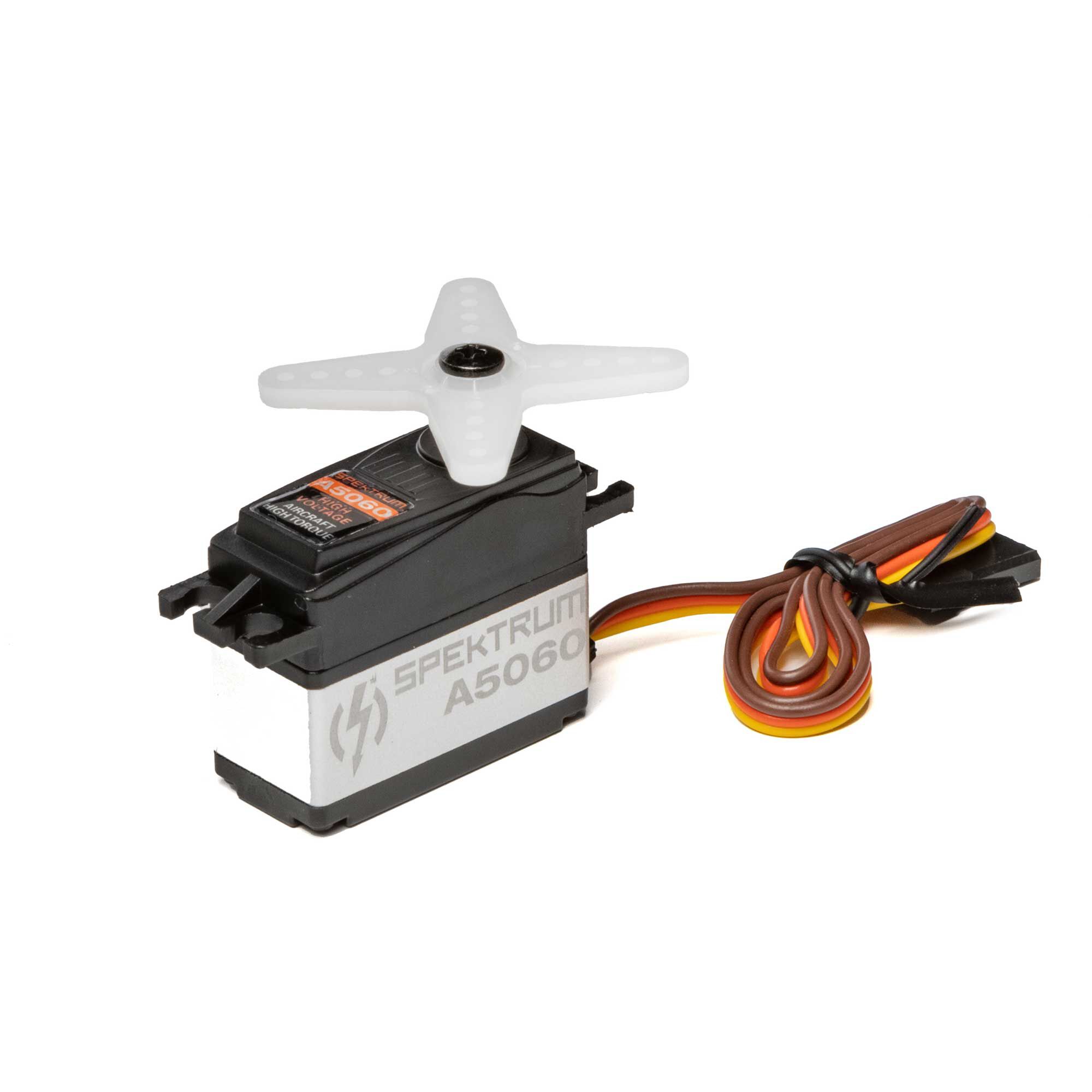

A5060 Mini Digital HV High Torque Metal Gear Aircraft Servo. Product information and specifications are provided below.
| Product Weight | 0.92 oz (26.0 g) |
|---|---|
| Product Length | 1.30 " (33.0mm) |
| Product Width | 0.58" (14.7mm) |
| Product Height | 1.08" (27.4mm) |
| Bearing | Dual |
| Bushing Or Bearing | Bearing |
| Servo Type | Digital |
| Servo Size Category | Mini |
| Programmable | No |
| Maximum Servo Torque | 87 oz-in (6.3 kg-cm) @ 6.0V; 118 oz-in (8.5 kg-cm) @ 8.4V |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Gear Type | Metal |
| Spline Count | 23 - Tooth |
This replacement part is used in the following complete models.
6 Channel 2.4 GHz FMS Air ReceiverFMMRX02
ZERO A6M EP/GP .46-.55 ARF 55"PMMA1865
Bergfalke 3.3m EP Glider ARF 129.9"PMMA1885loading
