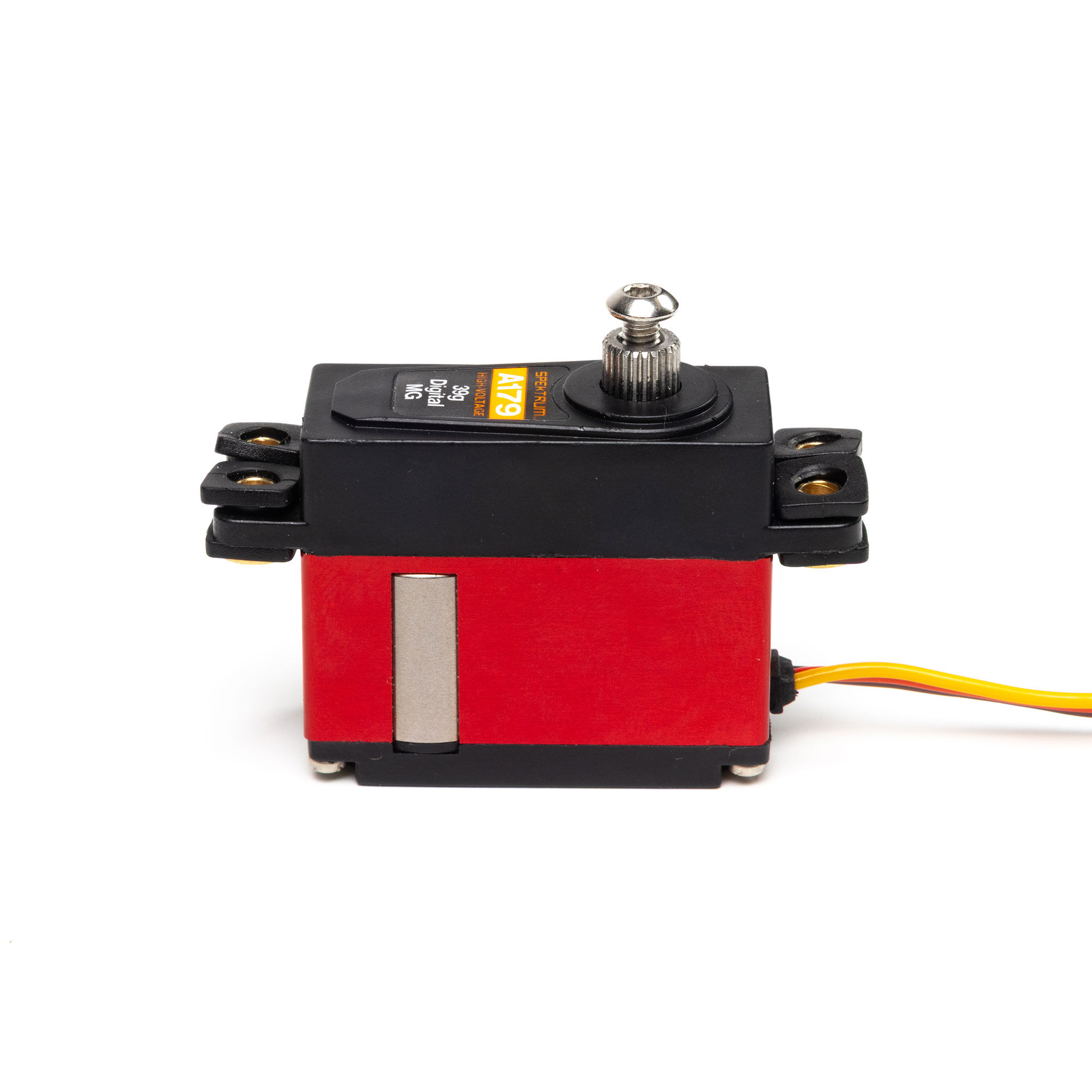

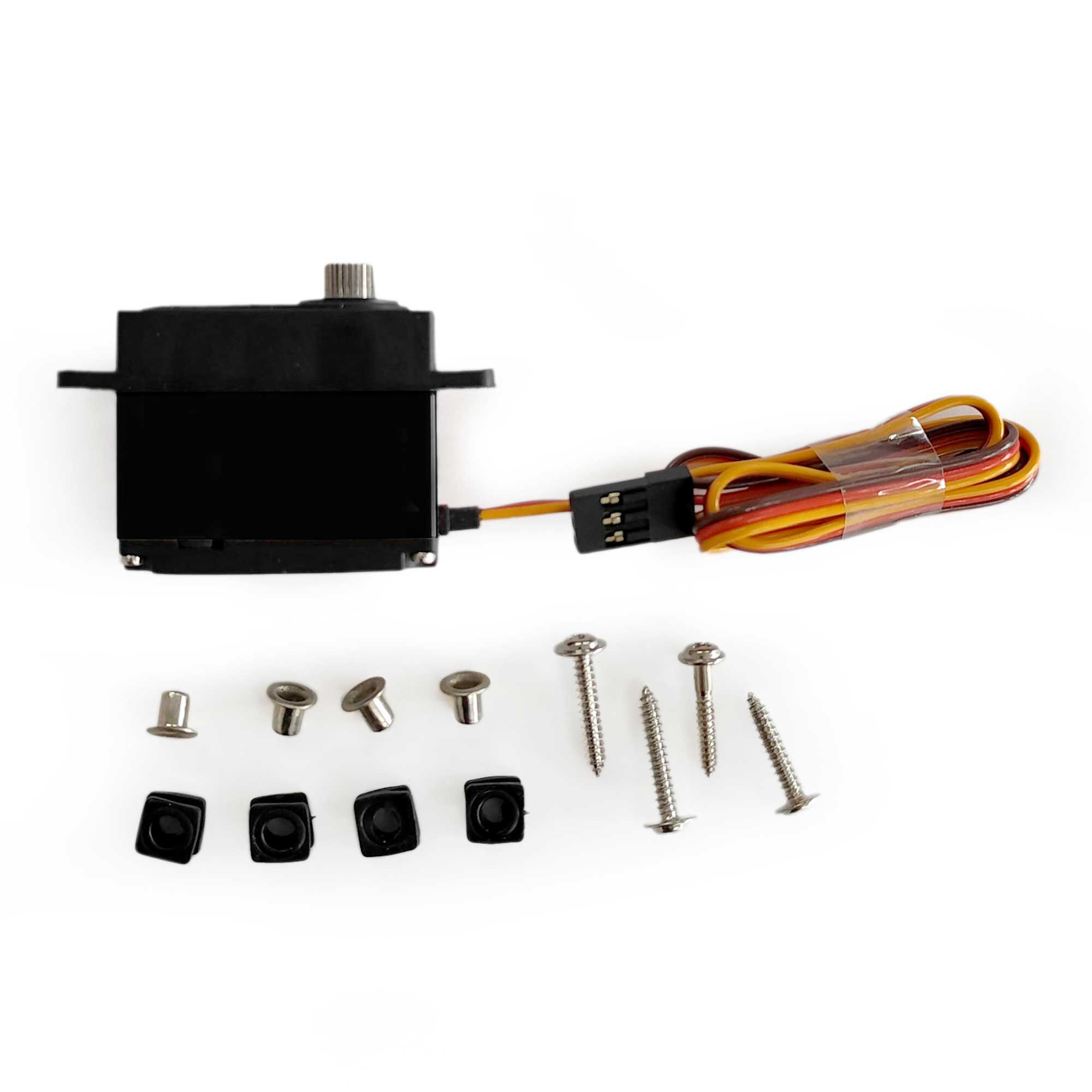

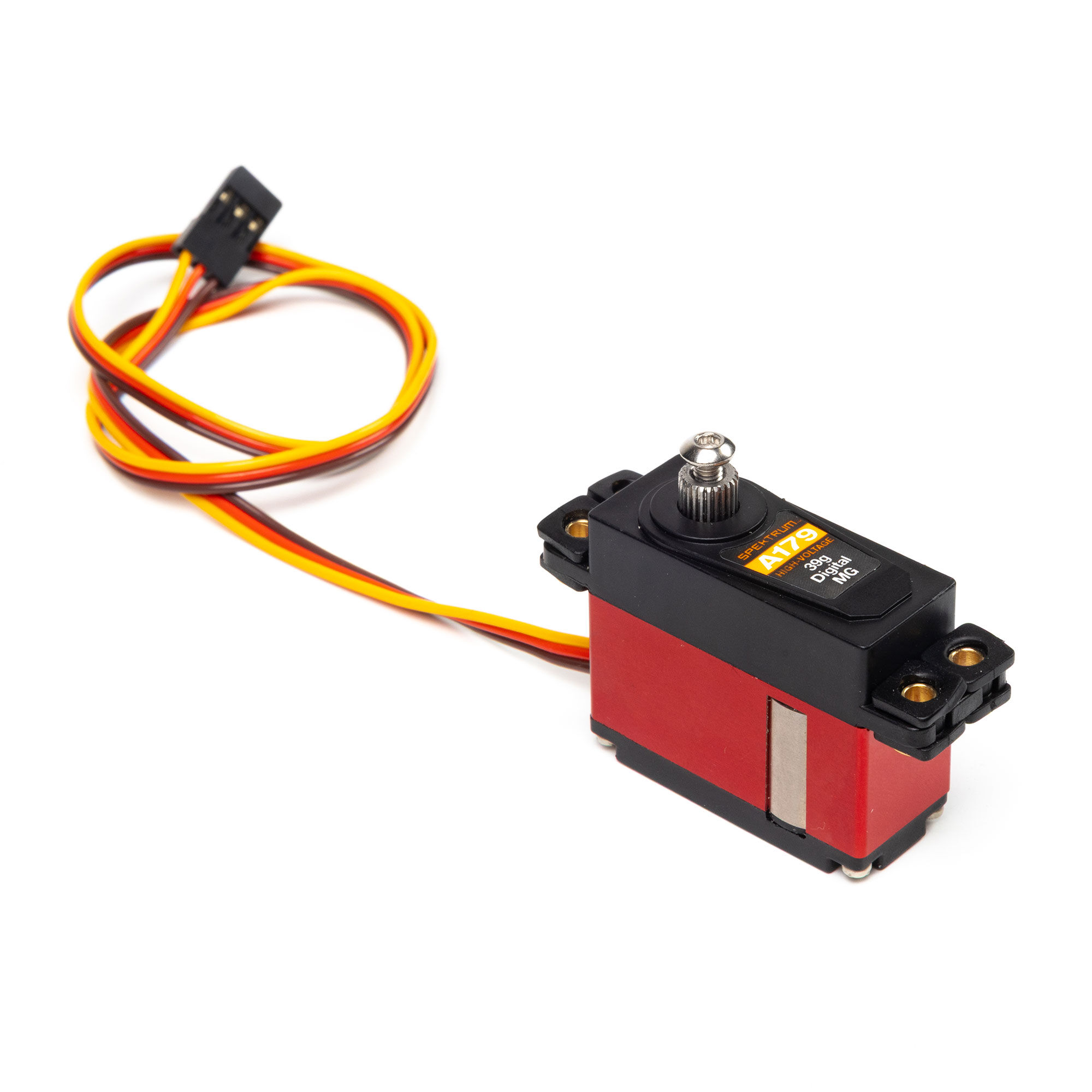

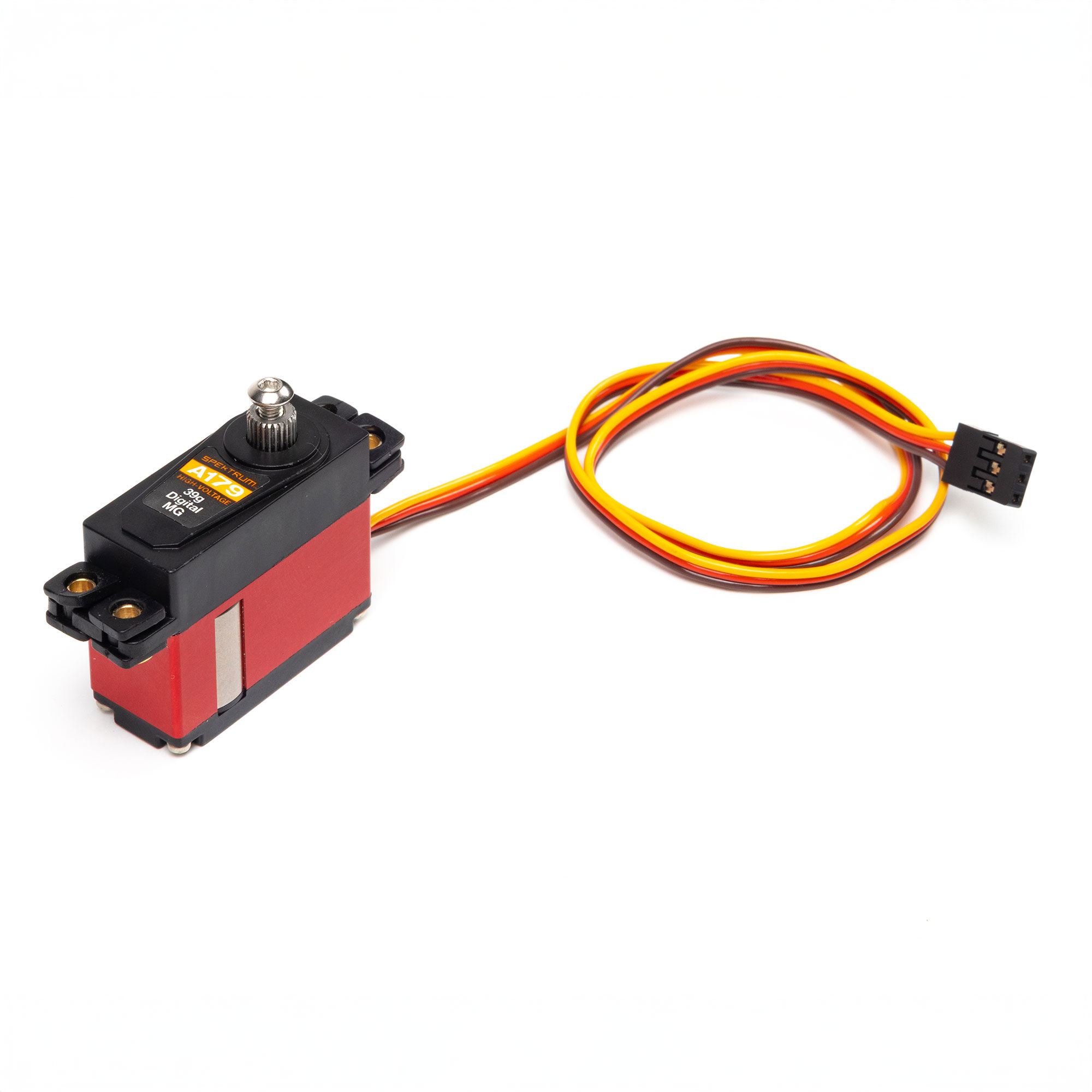

Replacement aileron servo for the E-flite Eratix 3D SWS 1.6m (64”) airplane. This 42g mini servo is capable of 150 oz-in of torque, at 7.4V, with a speed of 0.11 seconds / 60 degrees. The case dimensions are 35.5 x 15 x 34.65mm. It uses a coreless motor, has metal gears, and the output shaft has 25 splines.
| Product Weight | 42g |
|---|---|
| Application | Airplane |
| Bearing | Yes |
| Connector Wire Length | 8.66" (220 mm) |
| Gear Type | Metal |
| Maximum Servo Speed | Speed: 0.08 sec/60 deg @ 8.4V; 0.09 sec/60 deg @7.4V; 0.11 sec/60 deg @6.0V |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Servo Size Category | Mini |
| Servo Type | Digital |
| Spline Count | 25 - Tooth |
| Torque | 170 oz-in (22kg-cm) @ 8.4V; 150oz-in (19 kg-cm) @ 7.4V; 110 oz-in (15 kg-cm) @ 6.0V |

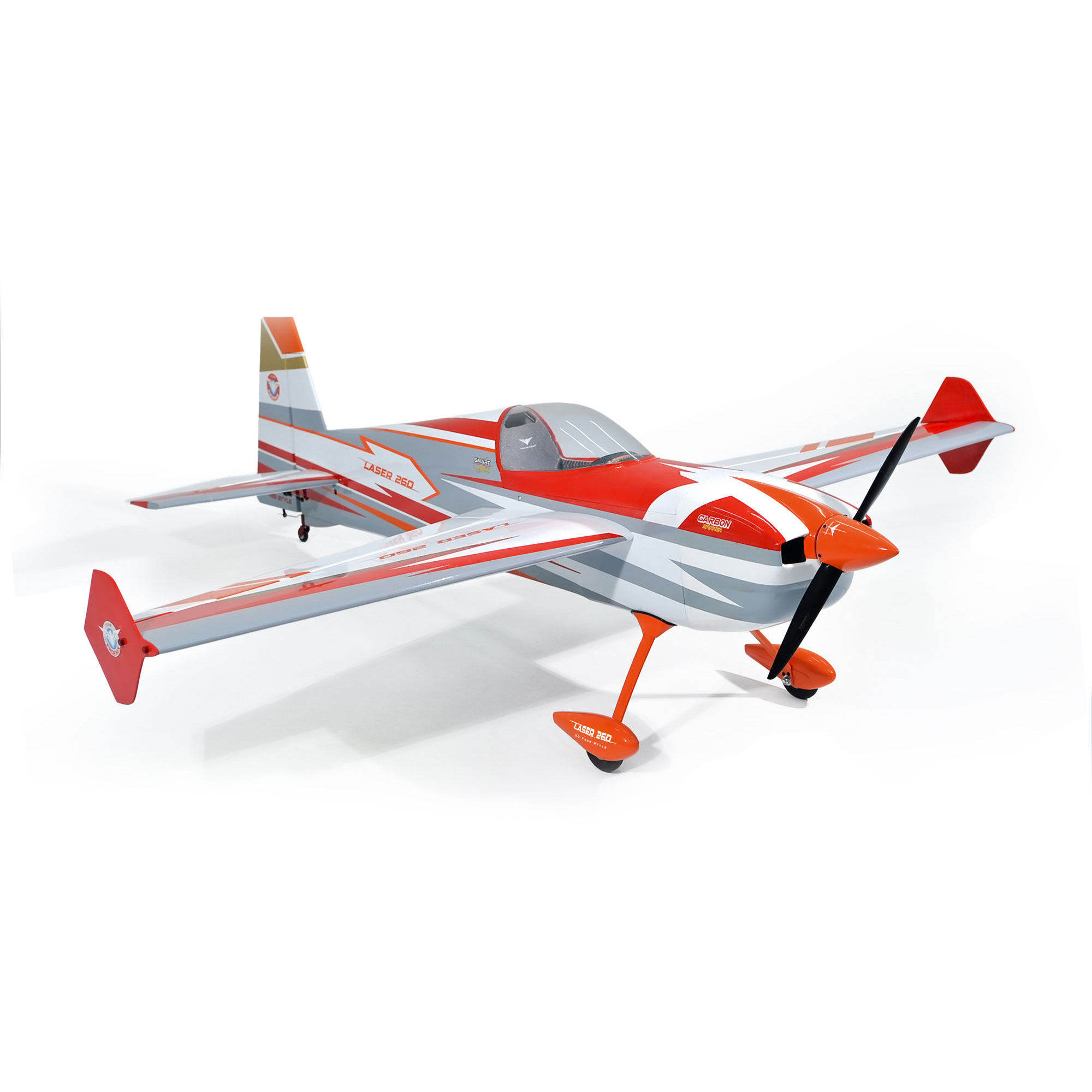

This replacement part is used in the following complete models.
